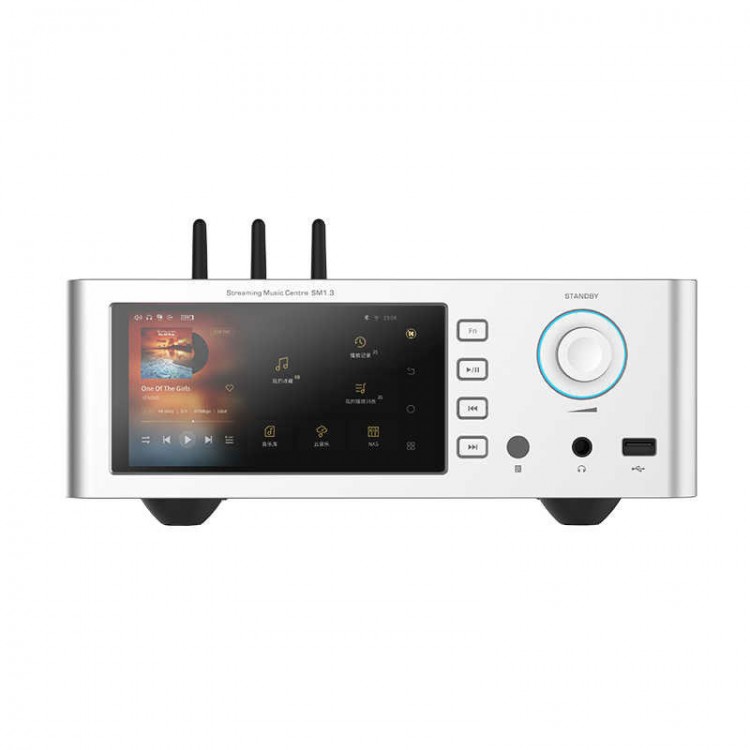

Silvery 220V SM1.3 Digital and Streaming Audio Player AK4191EQ+AK4499EX DAC with 2.8-inch 1080P Touch Screen

Silvery 220V SM1.3 Digital and Streaming Audio Player AK4191EQ+AK4499EX DAC with 2.8-inch 1080P Touch Screen

Description:
- SM1.3 is developed on the new RK platform 64-bit high-performance digital broadcast processor, with better software adaptability and smoother operation. The golden configuration of 4G RAM+64G ROM, a deeply customized system developed based on Android 12, and a newly designed UI interface, is as smooth and silky as silk, making it the best operating experience in the entire Shanling series.

- SM1.3 is equipped with a 5.8-inch 1080P high-definition touch screen for SHARP, which boasts stunning visual effects that sweep across both eyes; A sturdy and solid aluminum alloy chassis ensures high rigidity and effectively prevents resonance; Available in black and silver, it showcases mystery and purity while accented with classic wheels, gently spinning to create a beautiful musical atmosphere.

- Based on the division of commonly used system functions, the homepage, menu page, and playback page have been reorganized in terms of functionality and hierarchy. The homepage is clear and concise, while the menu page is simplified and efficient with fewer levels. The playback page is designed with visual and aesthetic elements, while the input and output pages are concise and vivid. Added the "My Music" function, which allows you to add your favorite music and achieve quick playback.

- The homepage adopts an audio player + intelligent direct card mode, enhancing immediacy, immersion, and convenience.

- Cross platform adaptability: adopting completely consistent UI design logic and benchmarks for the user experience of both local and mobile apps, enhancing operational consistency, simplifying the difficulty of getting started, and increasing immersion.

- Built-in multiple streaming music apps; SM1.3 supports the installation and playback of streaming apps for Apple Music/Spotify/Tidal/Qobuz/QQ Music/NetEase Cloud Music/Kugou Music, and supports mainstream streaming protocols for DLNA and AirPlay2, making it easy to achieve high-definition lossless streaming output and play streaming media in various scenarios.

- SM1.3 fully supports for NAS functionality, supports for Baidu cloud storage playback, supports for Samba and local operations such as viewing, browsing, playing, and bookmarking for NAS files, helping users easily manage various types of data and fully realize streaming media functionality.

- The SM1.3 whole machine adopts a separated power supply design, and the digital and analog amplification parts adopt a separated power supply design. Through the reasonable division of internal space and circuit design, the mutual interference between different parts is reduced.

- The entire machine of SM1.3 adopts two customized linear ring transformers, which are well-known in the HiFi machine industry for their extremely low noise and high energy conversion efficiency. The SM1.3 ring transformer adopts encapsulation technology inside, which is better fixed and effectively reduces weak vibrations.

- In the analog part, compared to digital power supply, linear power supply produces purer and more musical sound, ensuring stable power supply for SM1.3 while being more beneficial for sound; In the digital part, the sufficient power of 31W maintains the quality and stability of the sound from the source, making the listening experience smoother and significantly enhancing the sound stability.

- SM1.3 selects flagship chip combination AK4191+AK4499EX for AKM to achieve separation and processing of digital and analog signals, abundant current supply, and stronger dynamic performance, making the sound more energetic. Inheriting the essence of tuning from Shanling for 36 years, SM1.3 has a more solid and solid quality foundation, creating a beautiful and atmospheric sound in SM1.3.

- The output part of SM1.3 circuit is equipped with MUSES8920 operational amplifier, which makes the sound output of the circuit both smooth and structured, brewing higher quality sound and bringing better music sense.

- The output part of SM1.3 headphone amplifier adopts TPA6120 operational amplifier, which has stronger current output capability, more solid sound, and can easily drive large ears.

- SM1.3 supports both wired and wireless network functions, is equipped with a gigabit LAN port, and supports 2T2R WiFi6 standard wireless network transmission with 2.4G/5.8G dual band. It offers both high speed and convenience, allowing for seamless listening and enjoyment.

- Supports up to 768kHz/32-bit, DSD512 hard decoding.

- SM1.3 utilizes the global lossless output technology for AGLO Android developed by Shanling, bidding farewell to the limitations for Android SRC. Equipped with XU316 USB chip for XMOS, high-precision clock for ACCUSILICON AS318-B-45.1584MHz/AS318-B-49.152MHz acts on XU316 USB chip for XMOS. The local USB DAC function can support up to PCM768kHz/32-bit and supports for DSD512 hard decoding.

- SM1.3 has a powerful hardware configuration that supports for MQA file 16x Full Decoder digital signals from local and streaming channels, and supports USB Audio output for MQA digital signals. At the same time as having master level sound quality, it can significantly reduce file size, deeply decrypt original audio passwords, and deliver lossless sound quality.

- SM1.3 is equipped with Bluetooth chip for QCC5125, supporting Bluetooth 5.2 function and multiple transmission protocols with low latency and high stability. Full format Bluetooth encoding format, giving you a luxurious experience of free choice. Through Bluetooth functionality, SM1.3 can achieve Bluetooth DAC function, making it easy for you to utilize resources on your phone/tablet/PC. Reception: for LDAC, aptX HD, aptX Adaptive, aptX LL, aptX, AAC, SBC.

- SM1.3 supports for Eddict Controller mobile control app, which is simple and convenient. At present, it is possible to cast the screen onto the phone for control under the same WiFi. For Eddict Controller APP is a minimalist and intelligent HiFi music control app, which is also a thoughtful music control software. This software is compatible with iOS and Android devices (including mobile phones, and will support tablets in the future).

- SM1.3, as a high-order digital broadcast that integrates turntable, decoding, and headphone amplifier, can be used in conjunction with other devices to achieve different functions. It can be used as a streaming media turntable, streaming media front-end, decoding headphone amplifier integrated machine, etc. Built-in M.2 NVME 3.0 SSD solid state drive slot, convenient for users to expand storage capacity and improve performance.

- SM1.3 has obtained the "Hi-Res Audio" certification from the Japan Audio Association and also supports for "Hi Res Wireless Audio" wireless high-resolution certification.

General Specification:
- Product size: 280 x 280 x 110mm
- Weight: 6.4kg
- Screen: 5.8-inch 1080P HD touch screen for SHARP
- Main control chip: for Rockchip digital broadcasting processor
- Audio format: for DSD, DXD, APE, FLAC, WAV, AIFF/AIF, DTS, MP3, WMA, AAC,OGG, ALAC, MP2, M4A, AC3, OPUS, TAK, etc. Support for CUE.
- Supported specification: 768kHz/32bit, DSD512
- Gain compensation: high, medium, low
- D/A conversion chip: AK4191EQ + AK4499EX DAC chip
- Supported external storage capacity: 2T
- Digital filtering: 6 kinds of different filtering chip
- Power supply method: 220V AC input
- Bluetooth version: 5.2
- Bluetooth support for: LDAC, aptX HD, aptX Adaptive, aptX LL, aptX, AAC, SBC
- Dual band WiFi 6: 2.4G / 5.8G

Technical Parameter:
RCA Output:
- Output level: 2.36V
- Frequency response: 20Hz - 40kHz (-0.5dB)
- THD+N: 0.0003%
- Dynamic range: 118dB
- Channel separation degree: 117dB
- SNR: 118dB

XLR Output:
- Output level: 4.72V
- Frequency response: 20Hz - 40kHz (-0.5dB)
- THD+N: 0.0003%
- Dynamic range: 121dB
- Channel separation degree: 117dB
- SNR: 121dB

Headphone Power:
- Output power:
  Low gain: 19mW at 32ohms
  Medium gain: 180mW at 32ohms
  High gain: 1015mW at 32ohms
  High gain: 132mW at 300ohms
- Frequency response: 20Hz - 40kHz (-0.5dB)
- THD+N: 0.0013% at 32ohms
- Dynamic range: 117dB at 32ohms
- Channel separation degree: 70dB at 32ohms
- SNR: 117dB at 32ohms
- Noise: 111dB
- Output impedance: 4.7ohms

Digital Terminal Supported Specification:
- Coaxial input: PCM192kHz/24bit
- Optical fiber input: PCM192kHz/24bit
- USB input: PCM768kHz/32bit, DSD512
- Coaxial output: PCM192kHz/24bit
- Optical fiber input: PCM192kHz/24bit
- USB output: PCM768kHz/32bit, DSD512
- I2S output: PCM768kHz, DSD512

Package Included:
- 1 x Digital and Streaming Audio Player
- 1 x Power Cable
- 1 x USB A to Type-C Cable
- 3 x Bluetooth Antennas
- 1 x Remote Control
- 1 x User Manual
