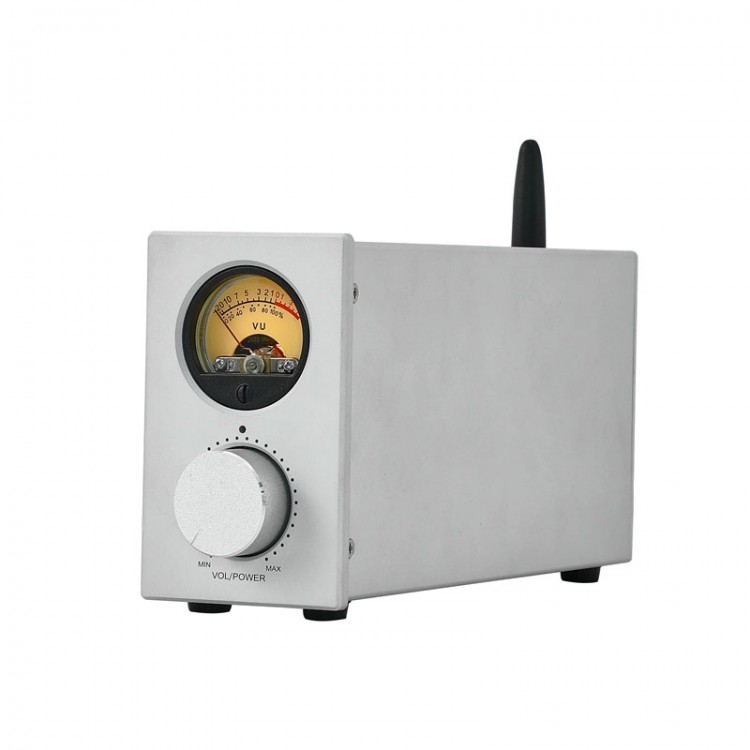

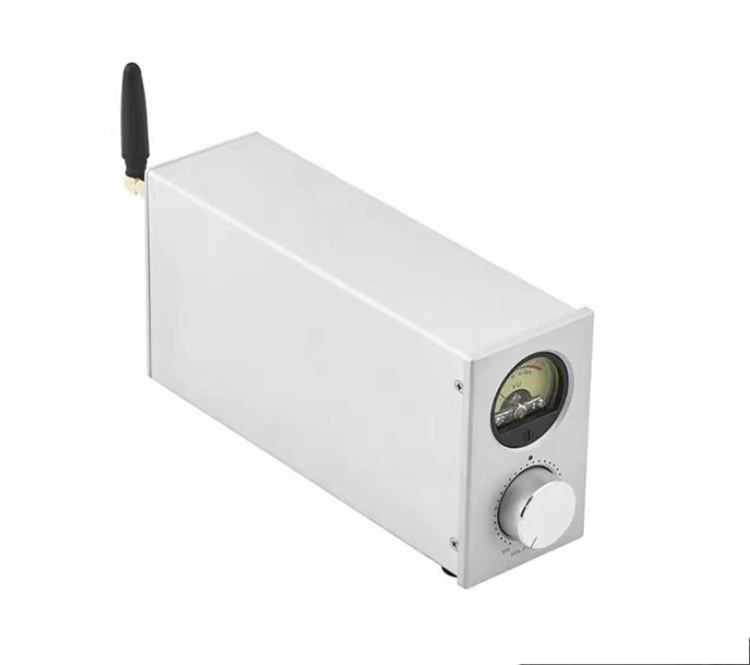

Silvery DB100 Digital Power Amplifier with VU Meter TPA3116 Dual Core Bluetooth 5.1 100W + 100W

Silvery DB100 Digital Power Amplifier with VU Meter TPA3116 Dual Core Bluetooth 5.1 100W + 100W

Description:
- DB100 uses two TPA3116A2 digital power amplifier with 100Wx2 output power. The main filtering adopts for Panasonic FK series filtering capacitor with lower inner resistance, smaller ripple and higher current to get more delicate sound.
- It also adopts for ELNA audio capacitor and for QCC3034 Bluetooth module, support for LDAC with the bit rate up to 24bit, 96kHz.
- ES9023 decoding, better using effects.

Precaution:
- DB100 output can only be connected to passive speakers, it can not be connected to active speakers and fixed-voltage speakers.
- DB100 use DC12-24V power supply, the higher the voltage, the higher the power, but it can not exceed 24V, otherwise it will burn the amplifier, power plug 5.5 x 2.5, inside positive and outside negative.
- The negative poles of the amplifier output cannot be connected together, otherwise it will cause the amplifier to be burned.

Specification:
- Model: DB100
- Input: RCA/Bluetooth
- Output: Crystal terminal x 2
- Working voltage: DC12V - 24V
- Standby power consumption: 0.5W
- Bluetooth chip: for QCC3034
- Bluetooth support: for SBC/ACC/APTX/APTX-HD; 16 - 24Bit, 44.1 - 96KHz
- Power amplifier chip: TPA3116A2 x 2
- Maximum output power: 100W/4ohm x 2, 50W/8ohm x 2
- Total harmonic distortion: <0.05%
- SNR: 105dB
- Frequency response range: 20 - 20K at 1kHz±0.3dB
- Power port specification: 5.5 - 2.5mm
- Size: 55mm x 90 x 180mm
- Weight: 600g

Package Included:
- 1 x Host
- 1 x RCA Cable
- 1 x Bluetooth Antenna
- 1 x User Manual
