Silvery Panel UD951C-PRO+ Flagship Version DSD Digital Turntable Audio Decoder ES9038PRO DAC QCC5125 Support 5.8GHz Transmission

Silvery Panel UD951C-PRO+ Flagship Version DSD Digital Turntable Audio Decoder ES9038PRO DAC QCC5125 Support 5.8GHz Transmission

Description:
- UD951C-PRO+: Equipped with one ES9038PRO for ESS, it has strong resolution, delicate and smooth sound, excellent extension, and is truly awe inspiring.
- The USB sound card of UD951C-PRO+ adopts the SA9227 chip for SAVITECH, which has powerful performance, high sampling rate, and can support DSD256/1-bit, as well as PCM up to 384Khz/32-bit. Supports for Windows/Mac/Android and other systems, supports devices such as computers/tablets PC/phones, can output DSD source code and DTS/Dolby signals, and imagine lossless music live.
- The UD951C-PRO+ headphone amplifier uses TPA6120A2 chip, which is actually a current feedback circuit with a conversion rate of up to 1300V/us, distortion of only 0.00014% THD+N, high signal-to-noise ratio and dynamic range of up to 128dB, strong driving ability, output power of up to 1.5W, and supports up to 600Ω impedance. It is compatible with mainstream headphones in the market.
- The three operational amplifiers of UD951C-PRO+ are manufactured using LME49720 chip, which is a low distortion, ultra-low noise, and high conversion rate dual operational amplifier. The conversion rate is as high as ±20V/us, and the output current capability is ±26mA. The output stage that maximizes dynamic range is to drive a 2KΩ load to within 1V of any power supply voltage, and to drive within 1.4V when driving a 600 load. Its CMRR (120dB), PSRR (120dB), and VOS (0.1mV) enable the amplifier to exhibit excellent operational amplifier DC characteristics. The operational amplifier adopts a socket type packaging, and users can also replace it with a more advanced operational amplifier model by themselves.

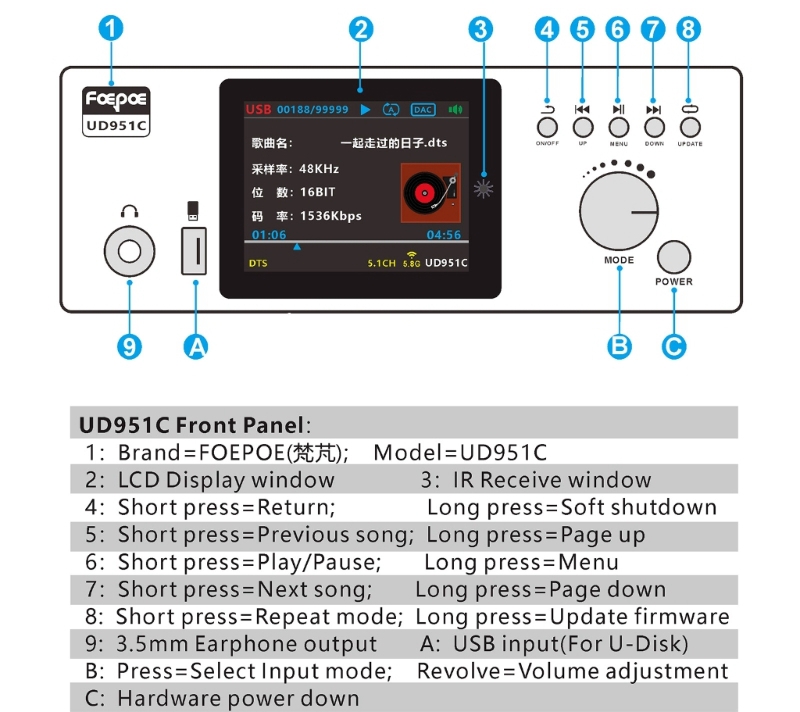

- 3.2-inch large color screen display, with an effective display size of 65x49mm; It can display input channel name/volume of each channel/audio source format/sampling rate/bit width/bit rate/USB song name/file directory, etc.
- Supports mono volume adjustment.
- The UD951C-PRO+ is equipped with high-end QCC5125 Bluetooth chip, which supports version 5.1 (compatible with lower versions such as 5.0/4.2) and supports for LDAC/aptX HD/aptX Adaptive/apptx LL/aptx/AAC/SBC protocols. The LDAC/Adaptive protocol can support up to 96kHz/24bit, allowing you to enjoy exclusive music live with wireless, low latency, and lossless sound quality.
- Support folder browsing and song selection, freely choose your favorite album directory to play, currently up to 512 folders can be created.
- Supports 2T high-capacity USB or hard drives, theoretically capable of supporting 99999 songs.

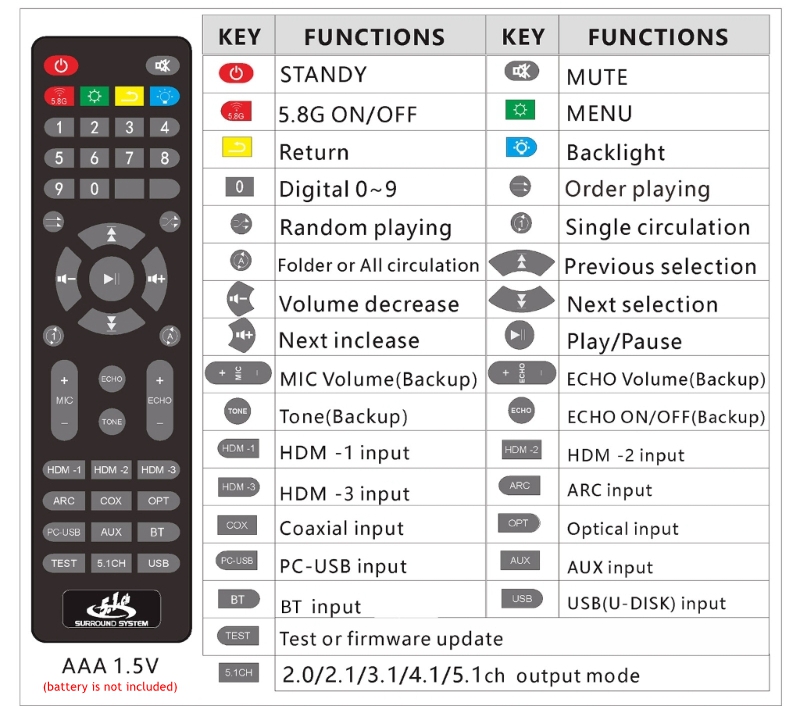

- Support remote control digital song selection, allowing you to freely choose your favorite songs and enjoy them in a loop. For example, pressing the 1888 key in sequence will jump to the 1888th song for playback.
- Supports playing DSD256/1BIT, DFF/DSF/DST formats, and supports playing sampling rates with bit widths up to 768Khz/32BIT.
- DTS/Dolby 5.1 hardware decoding, giving you an immersive experience.
- Ultra high definition HDMI-compatible resolution: supports HDMI-compatible 2.0b version, 4K at 60Hz HDCP2.2, supports HDMI-compatible 3-in 1-out, and ARC.

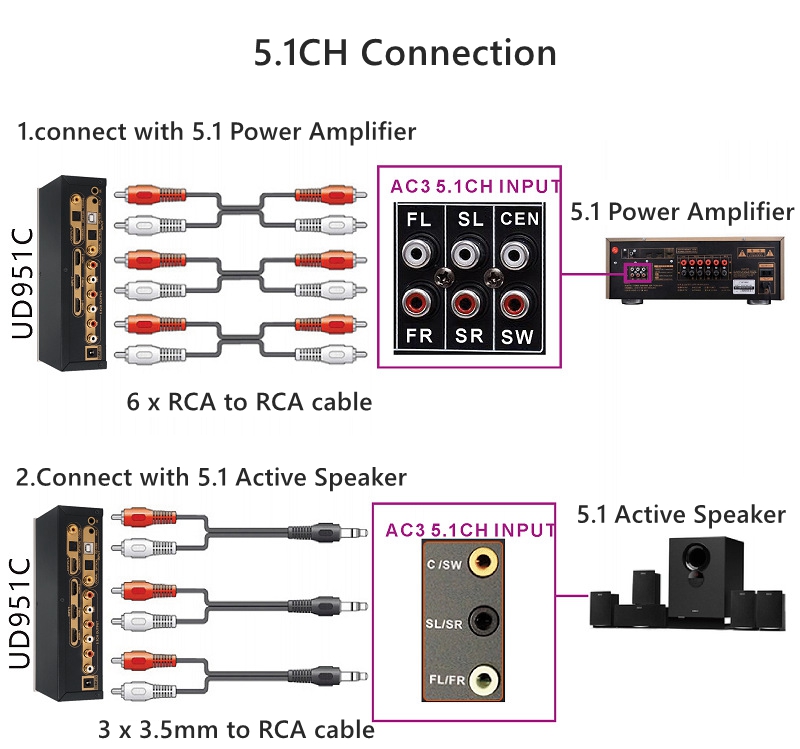

- Multiple channel decoding output configurations:
  2.0 channels: front left + front right (HiFi mode)
  2.1 channels: front left + front right + subwoofer
  3.1 channel: front left + front right + center + subwoofer
  4.1 channels: Front left + front right + surround left + surround right + subwoofer
  5.1 channel: front left + front right + surround left + surround right + center + subwoofer
- Support fiber/coaxial source code output, external higher end decoder:
  DAC-PCM: Decoding output 2.0/2.1/3.1/4.1/5.1CH
  SPDIF DoP: Fiber/Coaxial output DSD64 source code
  SPDIF-RAW: Fiber/Coaxial output DTS/AC3 source code
  SPDIF-PCM: Fiber/Coaxial forced output PCM stereo
- Expandable 5.8G wireless surround transmission, transforming wired surround into wireless, eliminating the hassle of wiring. Low latency, low distortion, anti-interference, with a distance of up to 30 meters.

Specification:
- Input interface: HDMI-compatible (x3) + ARC + coaxial + optical fiber + USB sound card + AUX + Bluetooth + USB flash drive + SD card
- Output interface: HDMI-compatible + optical fiber + 5.1CH + 3.5mm earphone port
- HDMI-compatible version: 2.0b version, HDCP2.2, resolution support 4K at 60Hz
- USB flash drive play format: for iso/dsd/dts-es/dts/ac3/flac/ape/wav/hdcd/aac/m4a/mp3, etc.
- USB flash drive play operation: support previous song/next song/single loop/folder loop/all loop/play/pause, etc.
- USB flash drive song selection operation: support folder browsing and remote digital song selection
- USB flash drive play sampling rate/bit width: support DSD256/1 bit, PCM support 768kHz/32 bit
- Audio output amplitude: ≥2Vrms
- SNR: +129dB
- Bluetooth version: 5.1
- Bluetooth protocol: for LDAC/aptX-HD/aptX-LL/aptX/Adaptive/aac/sbc
- USB sound card supported system: support system source code input for WinXP/Win7/Win8/Win10/Win11, etc.
- Output method: support 5.1CH decoding output and optical fiber/coaxial source code output
- Decoding output ability: support for dts/dolby hardware decoding (true 5.1) and PCM software decoding (virtual 5.1)
- Operation control: support button and remote control switching input mode, volume adjustment, settings, song selection, etc.
- Power-off memory: support input mode memory, volume memory, song selection memory, and setting memory
- Output channel mode: supports multiple channel output modes such as 2.0/2.1/3.1/4.1/5.1CH
- Volume adjustment: support overall volume adjustment and mono volume adjustment
- LCD display: supports 3.2-inch large color screen display and backlight switch
- Power supply: DC7 - 26V/1A
- Product size: 218 x 110 x 78mm
- Packaging size: 253 x 115 x 209mm
- Product weight: 1.1kg
- Packaging weight: 1.35kg

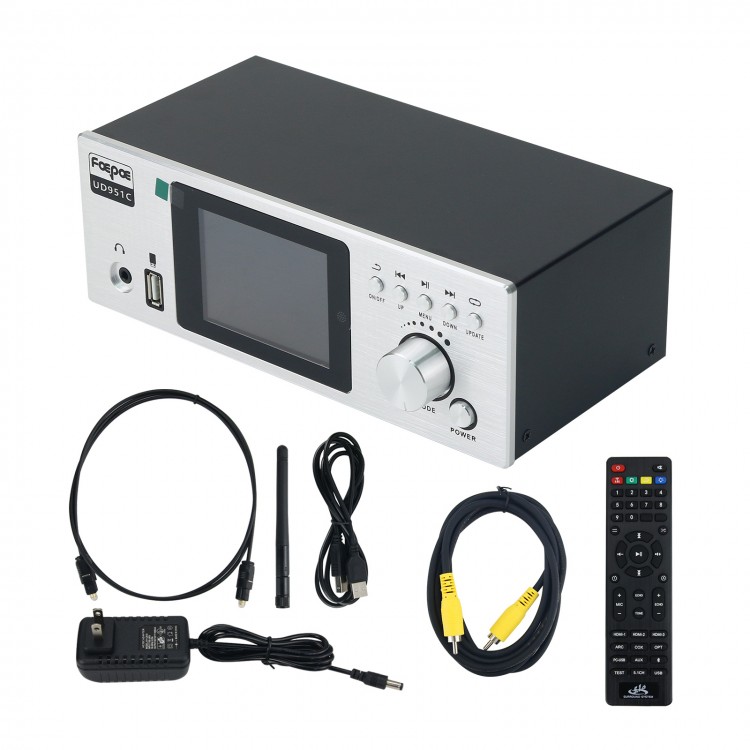

Package Included:
- 1 x Host
- 1 x DC12V/1A Power Adapter
- 1 x Remote Control
- 1 x USB Sound Card Cable
- 1 x Bluetooth Antenna
- 1 x 5.8G Antenna
- 1 x Digital Optical Fiber
- 1 x User Manual
