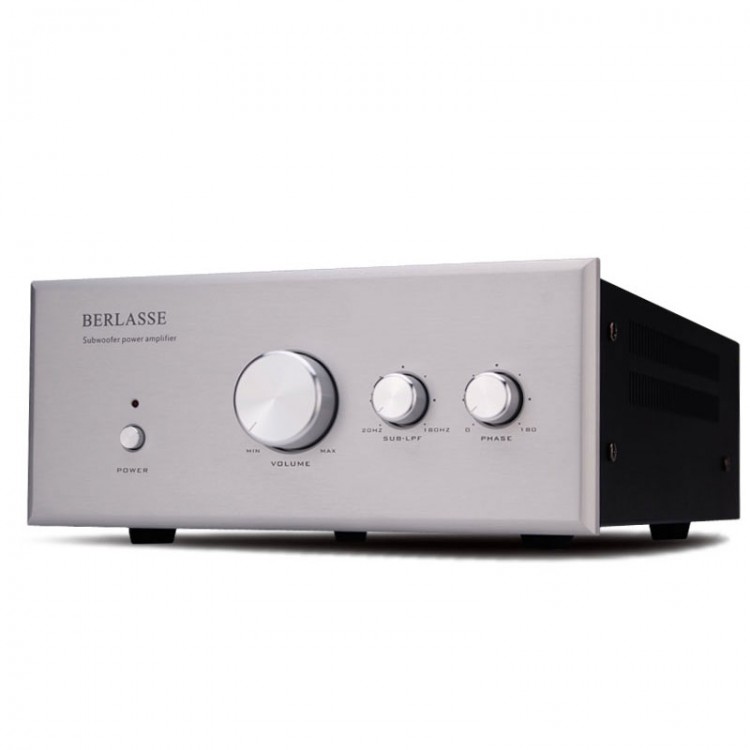

Silvery WS-01 HiFi Audio Power Amplifier High Power Passive Bass Power Amplifier for Home 5.1/2.1 Stereo System

Silvery WS-01 HiFi Audio Power Amplifier High Power Passive Bass Power Amplifier for Home 5.1/2.1 Stereo System

Description:
- This product is a low-frequency power amplifier, also known as a passive bass amplifier, which is a mono amplifier. The main purpose is to use the 5.1 home theater system and the 2.1 stereo system for home use as bass compensation, making the bass part of the system more shocking and rich.
- This machine adopts our company's continuously optimized classic circuits with rich internal materials, mature manufacturing processes and novel and concise appearance.

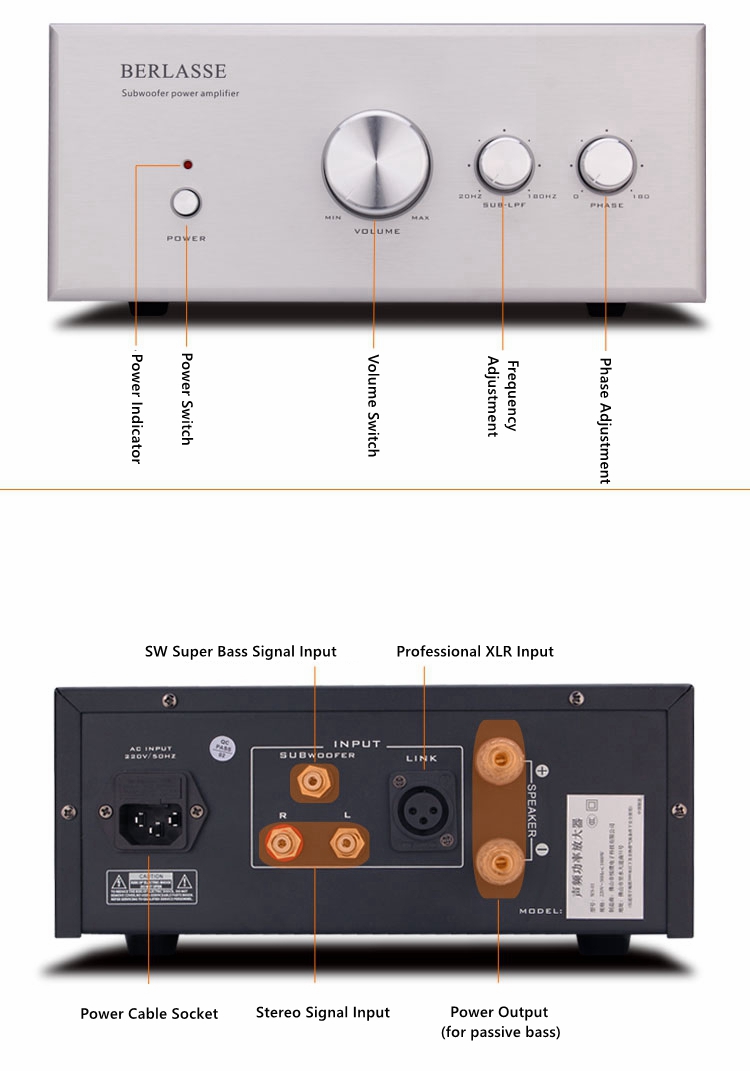

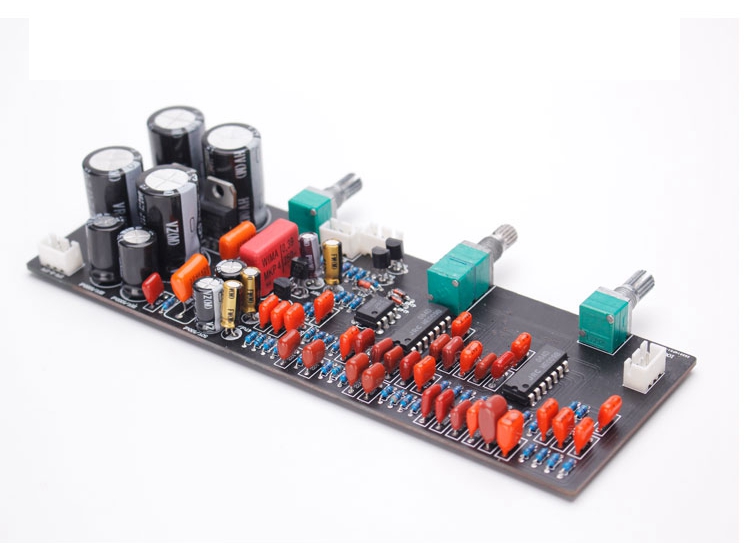

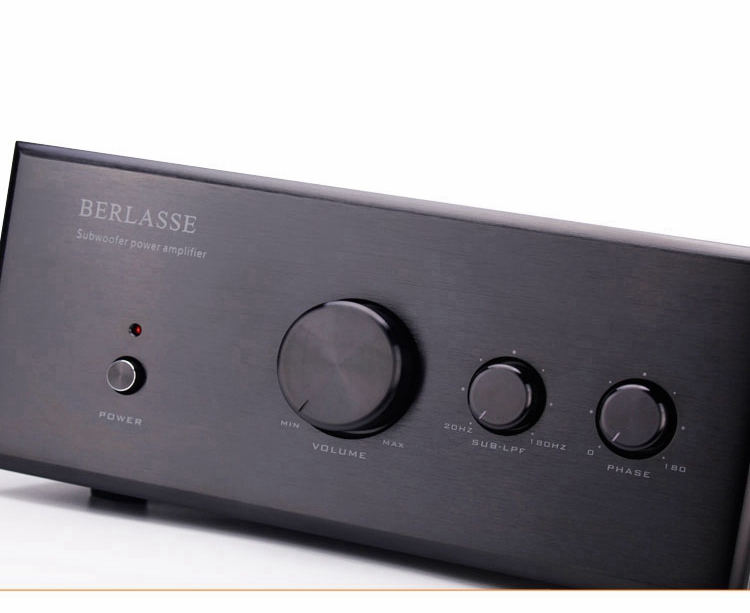

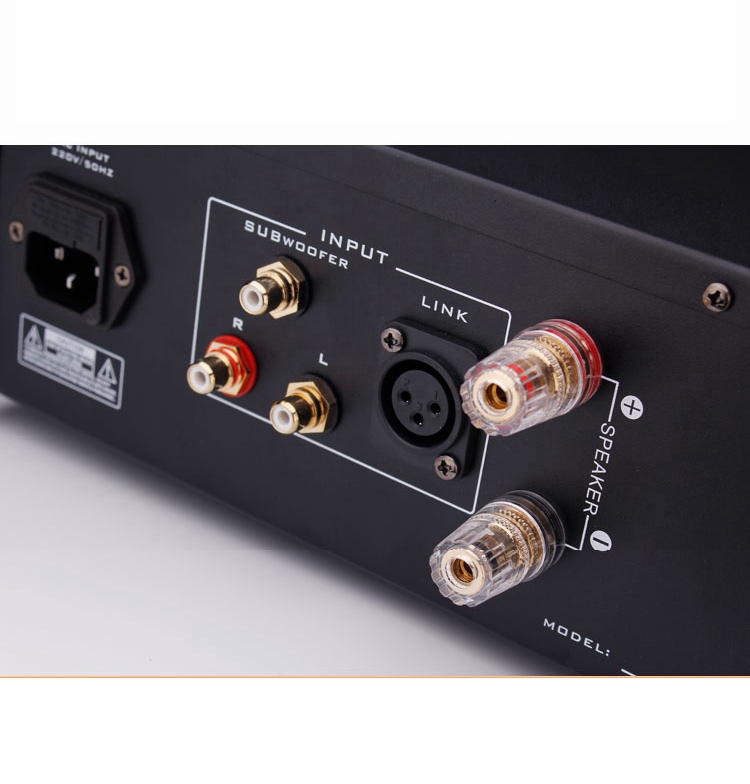

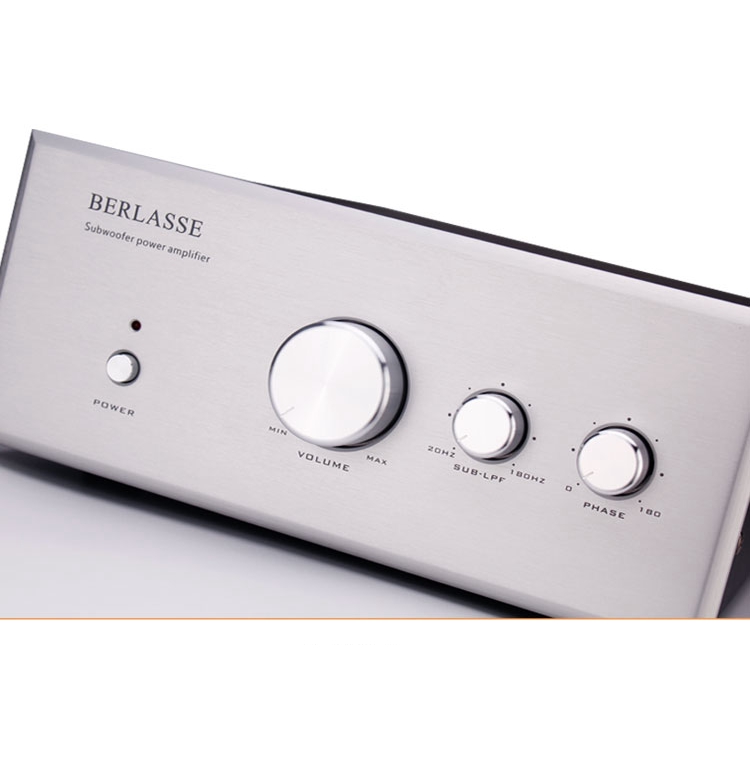

- This machine features a main volume adjustment, professional frequency adjustment and phase adjustment. There are a variety of input ports, including SW super bass input ports, left and right stereo output ports, and XLR input ports, which can be more flexibly and conveniently matched to personal systems.

Material:
- The output transformer uses high-temperature resistant and high-strength pure copper enameled wire, provides security guarantee for the subsequent upgrading and replacement of electronic tubes.

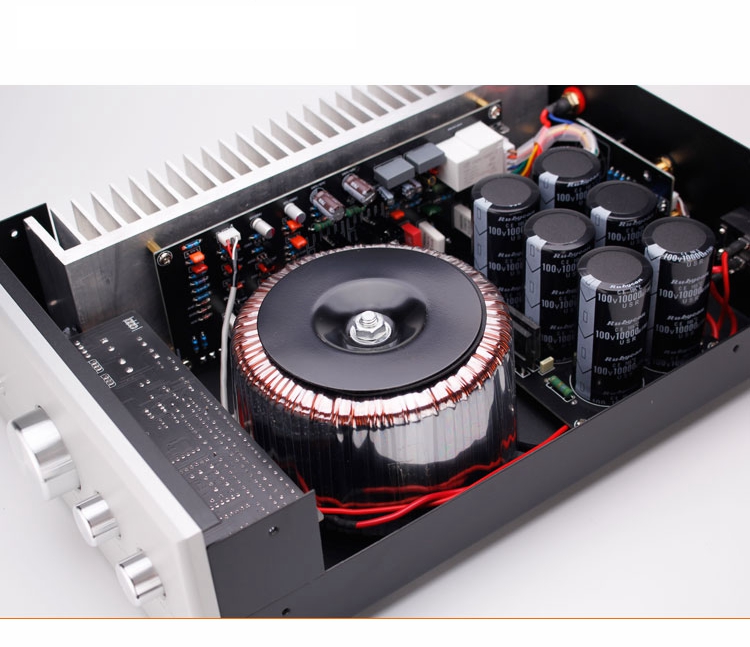

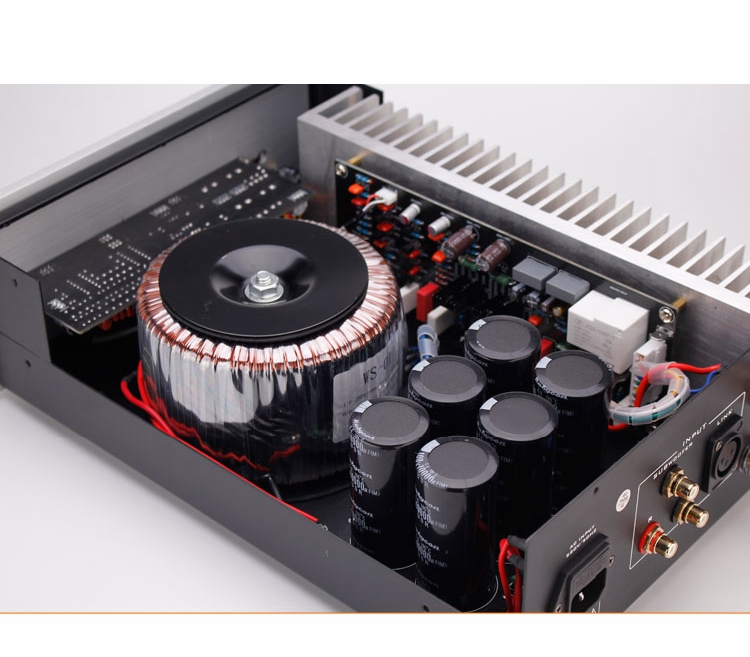

- It takes 6 x 100V/10000uF electrolytic capacitors for Rubycon/Nichicon as the main filtering capacitor.
- 4 x 5200/1934 tube for Toshiba

Specification:
- Rated power: 300W (8ohm); 500W (4ohm)
- Output impedance: 4 - 16ohm
- SNR: ≥90dB (A-weighted, line input)
- Frequency response: 20Hz - 180Hz (+10dB, -20dB)
- Input impedance: 100K
- Input sensitivity: ≥500mV
- THD: ≤0.5%

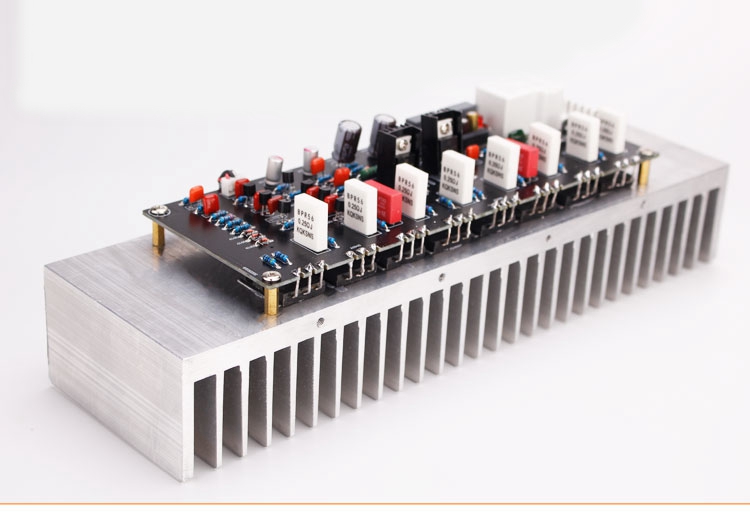

- Internal power tube: for Toshiba 4 x 2SC5200, 4 x 2SA1943
- Power supply: 220V±10%, 50Hz
- Size: 250 x 330 x 100mm
- Net weight: 12kg

Package Included:
- 1 x Host
- 1 x Power Cable
- 1 x User Manual
- 1 x Warranty Card
