Simagic P-500 2 Pedal Set Load Cell Pedals Sim Pedals Racing Simulator with 100kg Load Cell Sensor

Simagic P-500 2 Pedal Set Load Cell Pedals Sim Pedals Racing Simulator with 100kg Load Cell Sensor

Description:
The Simagic P-500 is an entry-level pedal set made from durable die-cast aluminum with precision CNC machining. It features a 100kg load cell, Hall angle sensor, adjustable resistance, and ergonomic design. With secure mounting options and SimPro Manager software, it offers solid control and customization for sim racing beginners.

Features:
P-500 Pedals
- Day one kit, backed by pro-level design.

Dual Sensor Power
- Equipped with a 100kg load cell sensor and a Hall angle sensor. Hall angle sensor suitable for road cars with a longer pedal travel. Load cell for race cars with a shorter brake travel for better immersion. Smooth and precise input, no matter the track.
- Hall angle sensors for throttle and clutch. A driving sensation that feels consistent and great.

Easily Ergonomic
- Wider support for adjustments that other pedals on the market, ensuring you get the perfect angle no matter your setup.
- Pedals lateral adjustment: Multiple screw hole positions provide spacing adjustments for the throttle, brake, and clutch.
- Pedal face displacement adjustment: Ability to adapt to different foot sizes.
- Pedal plate angle adjustment: Ability to adapt to different seating positions.

Dial In to Perfection
- Comes with different springs and elastomers. Customize to your liking! Freely adjust the force
to ensure your P-500's fit just right.

Exclusive Design. Quick and Easy
- The quick-change mechanism allows for easy and fast replacement of springs or elastomers, enabling convenient adjustments to the pedal feel.

Automotive-Grade Integrated Die-Cast Aluminum Alloy Process
- Utilizing Automotive-Grade Integrated die-cast aluminum alloy and high-precision CNC machining.

High-Precision CNC Machining Pedal Surface
- The P-500's uses a smart, refreshed design that holds firm and durable, all while remaining lightweight.

Precision Machining & Bearing Design
- The pedal plate are crafted with high-precision CNC machining, giving a refined texture and clear pedal feel.

A Sleek Setup Guaranteed
- Comes with dedicated seat or floor mount assembly.
- Mounts to rigs or floor easily (wall mount brackets included).

Scale and Upgrade
- Easy to upgrade from dual pedals to three depending on your discipline.

Backed By SimPro Manager
- Our center for racing. Adjust vibration, amplitude and more, effortlessly.

Specifications:
- Model NO.: P-500
- Resolution: 12Bit (4096) (High accuracy sensor)
- USB Connection: PC and Simagic Wheelbase
- Adjustable Spring Force Level: Throttle and Brake
- Hall Angle Sensor/Load Cell Sensor: (Throttle-Hall angle sensor); (Brake-Hall angle sensor/Load cell sensor)
- Load Cell Sensor: 100KG
- Floor Mounting: Supported
- Pedal Plate: High-Precision CNC
- Angle/Position Adjustment: Supported
- Adjustable Linearity: Supported
- Adjustable Brake Force: Supported
- Pedal Control Box: Included
- Building Material: High-Precision CNC, Aluminum Alloy

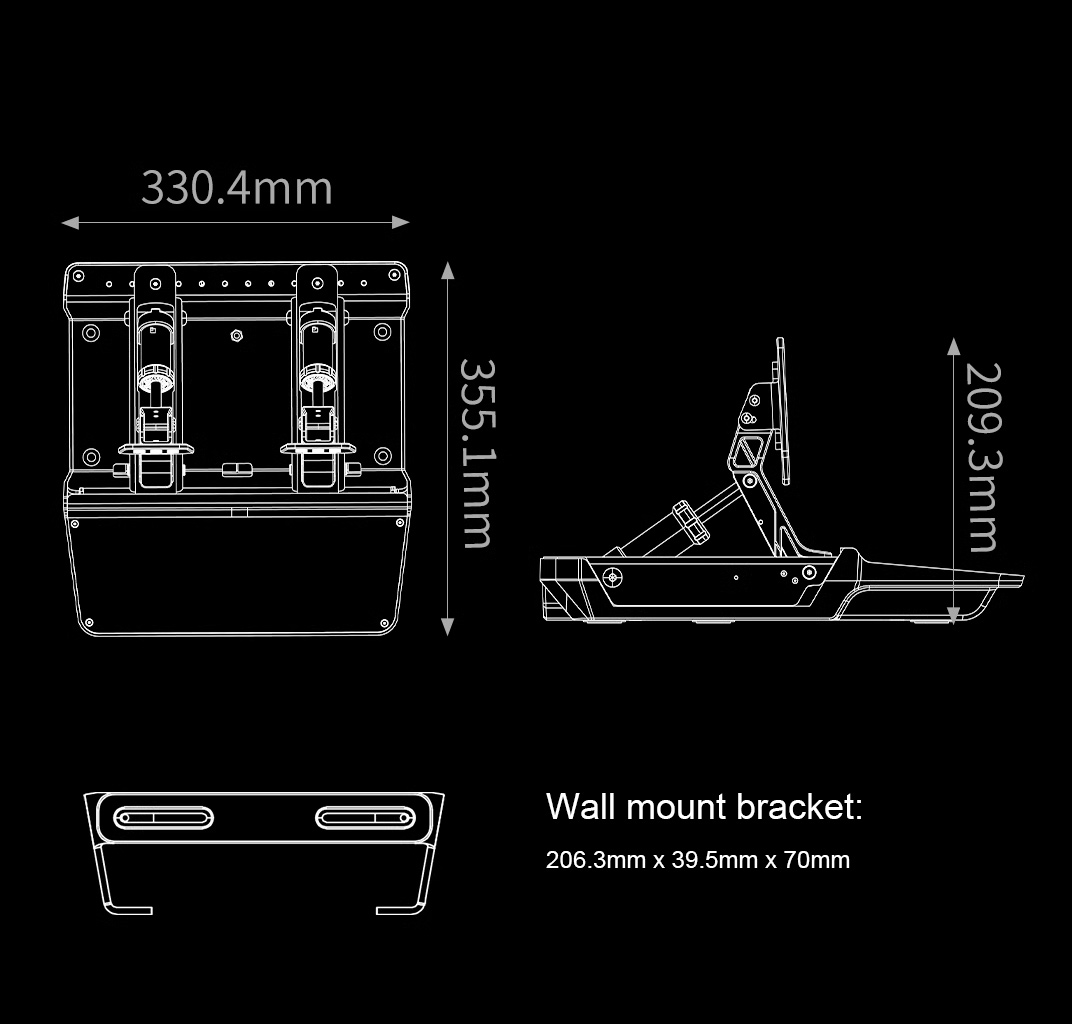

- Dimensions (LxWxH): 330.4mm x 355.1mm x 209.3mm
- Net Weight: 3.8kg
- Accessories: Pedal Springs, Pedal Control Box, Cable, Stickers for 3M, USB Cable, Installation Kit, and Wall Support Bracket
- Optional Accessories: C-P500 Clutch Module, P-HPR Haptic Pedals Reactor, and P-HPR Neo Rumble Haptic Pedal Reactor

Package Included:
- 1 x Set of P-500 Sim Pedals

Packaging Details:
- Volume weight: 7.4KG
