SIMCO FMX 003 Electrostatic FieldMeter Digital Tester Ground Wire with 9V Battery

SIMCO FMX 003 Electrostatic FieldMeter Digital Tester Ground Wire with 9V Battery

Product Overview:
- The FMX-003 measures static voltages within +/- 22kV (22,000V) at a distance of 1".
- Results are simultaneously displayed numerically and in bar graph format. POWER on/off, ZERO adjustment, Ion Balance (IB) and HOLD are all push button operation.
- The HOLD button allows the display to retain the static charge reading. This is especially useful where display is difficult to see during measurement.

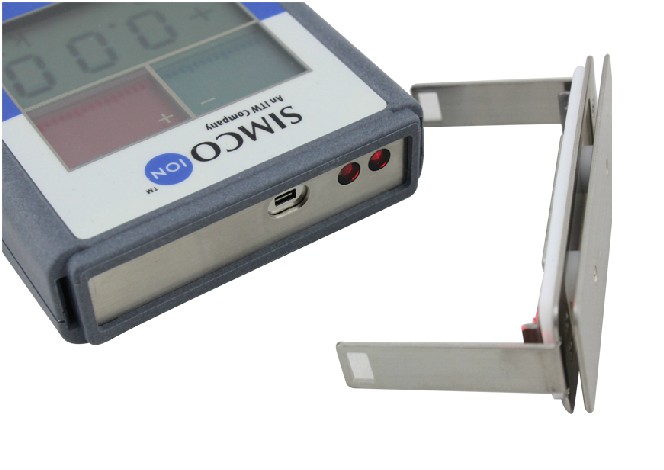

- Two LED guide lights help position the fieldmeter at the right distance from a charged test object. The conductive case and ground snap facilitate grounding for accurate measurement.
- The circuitry of the FMX-003 has been designed to make measurements in areas using air ionization.
- Easy to read, easy to use operations
- Lightweight, compact design
- Range light assures accurate and repeatable measurements
- Digital and bar graph display
- Automatic power off after five minutes (may be disabled if preferred)

Specifications:
- Display Features: Push button POWER, HOLD, ZERO and ion balance operation

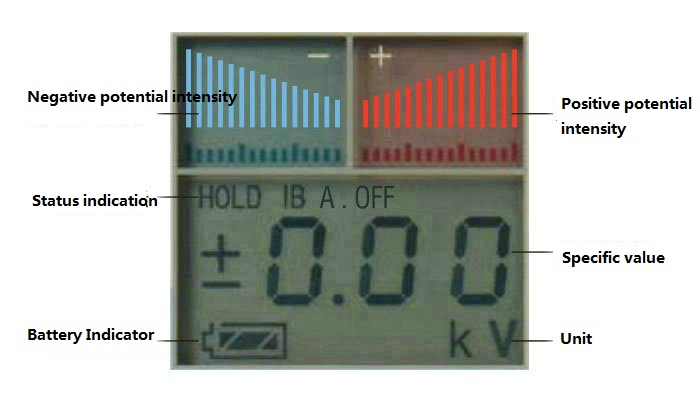

- Read Out: Bar graph- red LCD for positive polarity voltage; blue LCD for negative polarity voltage; battery capacity and error display indicators
- Measurement Capacity: Measuing range: 0 to ± 1.49 kV (low range); ± 1.0 kV to ± 22.0 kV (high range); 0 to ± 220 V (ion balance measuring range)
- Measuring Distance: 1" ± 1/64" (25mm ± 0.5mm); LEDs gide for correct distance (between charged object and fieldmeter)
- Power: 9 V, 6F22Y manganese battery

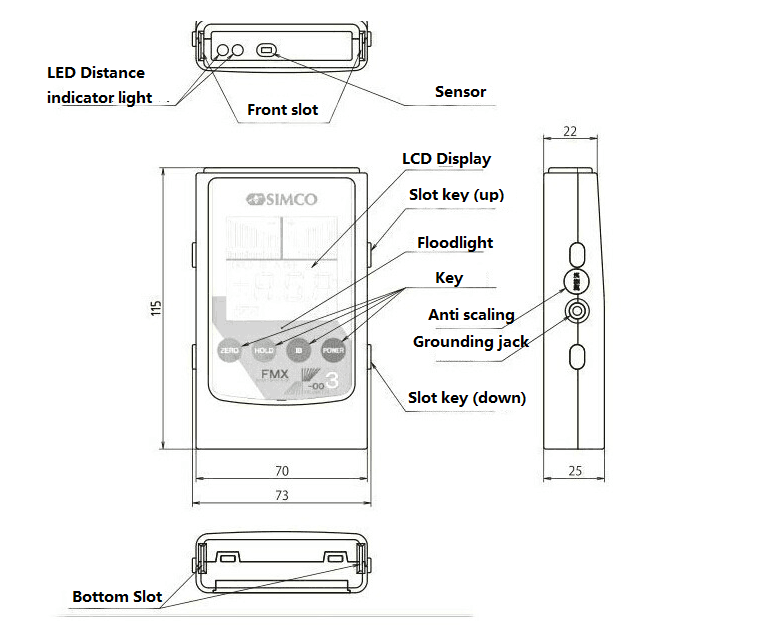

- Size: 4 7/8" L x 2 7/8" W x 1" H [123mm L x 73mm W x 25mm D]

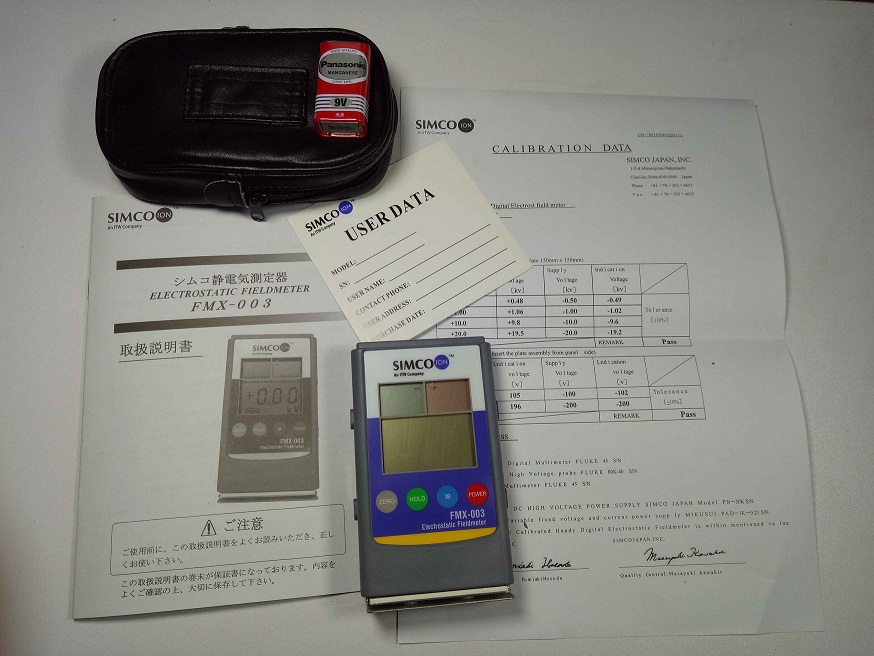

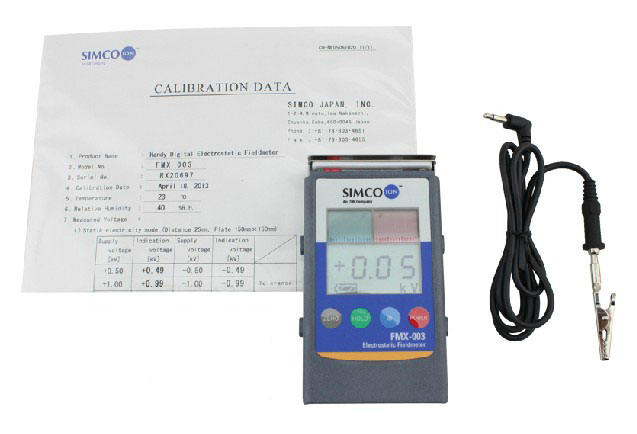

Package List:
- 1   X    SIMCO FMX-003 Electrostatic FieldMeter
- 1   X    Portable bag
- 1   X    Ground wire
- 1   X    User date
- 1   X    9V battery
