Description:
A7680C is an ultra-small, ultra-thin LTE Cat 1 module that supports LTE-TDD/LTE-FDD wireless communication standards. The module supports a maximum downstream rate of 10Mbps and a maximum uplink rate of 5Mbps.

The A7680C adopts the LCC+LGA package size of SIMCOM's classic 2G products, realizing the smooth switching of classic 2G products (SIM800C, SIM868, etc.) to LTE products. This greatly facilitates the design requirements of compact and full-featured end products.

With built-in network protocols, A7680C supports drivers and software functions of a variety of mainstream software operating systems (USB drivers for mainstream versions of operating systems such as for Windows, Linux and Android). The A7680C also integrates mainstream industry-standard interfaces and has strong expansion capabilities, including UART, GPIO and other rich interfaces. It is widely used in mainstream Internet of Things fields, such as vehicle communication terminals, security terminals, POS, industrial routers and telemedicine terminals.

Features:
- Ultra-small size CAT 1 module
- Rich hardware interface to meet various design needs
- Compatible with classic 2G products such as SIM800C and SIM868 series modules
- Rich software: remote upgrade (FOTA), base station positioning (LBS) and SSL protocol

Specifications:
General Parameters:
- Frequency band: LTE-TDD B34/B38/B39/B40/B41; LTE-FDD B1/B3/B5/B8
- Supported voltage range: 3.4V to 4.2V, typical: 3.8V
- Operating temperature: -40°C to +85°C
- AT command operation

Data Transmission:
- LTE Cat 1: Maximum 5Mbps upstream; maximum 10Mbps downstream

Software Characteristics:
- For Microsoft Windows 7/8/10 USB drive
- For Linux/Android USB driver
- For Android 5.0/6.0/7.0/8.0/9.0 RIL
- Support USB port software upgrade and FOTA remote software upgrade
- Support TCP/IP/IPV4/IPV6/MULTIPDP/FTP/HTTP/DNS
- Support RNDIS/ECM/PPP
- Support TLS
- Support LBS
- Support TTS
- Support MQTT
- Support WIFI Scan

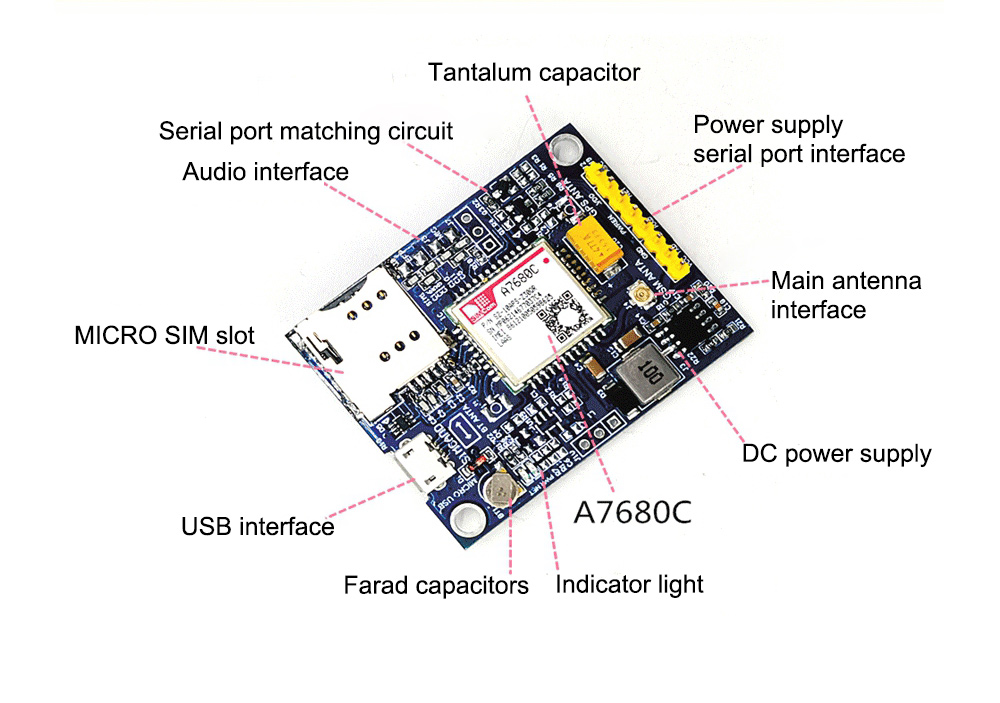

Hardware Interface:
- USB2.0
- Serial
- (U) SIM Card (1.8V/3V)
- Analog audio
- ADC
- GPIO
- Antenna: Master

Authentication:
- 3C#, SRRC# and NAL#
- RoHS# and REACH#

Package Included:

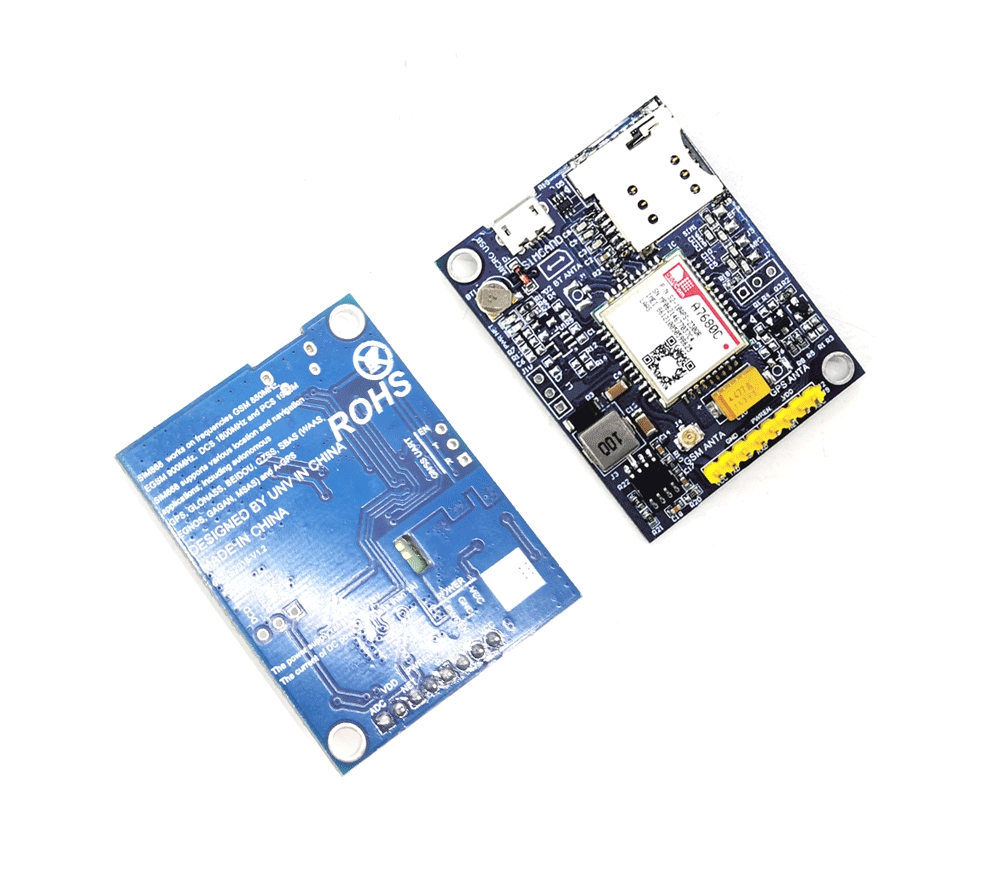

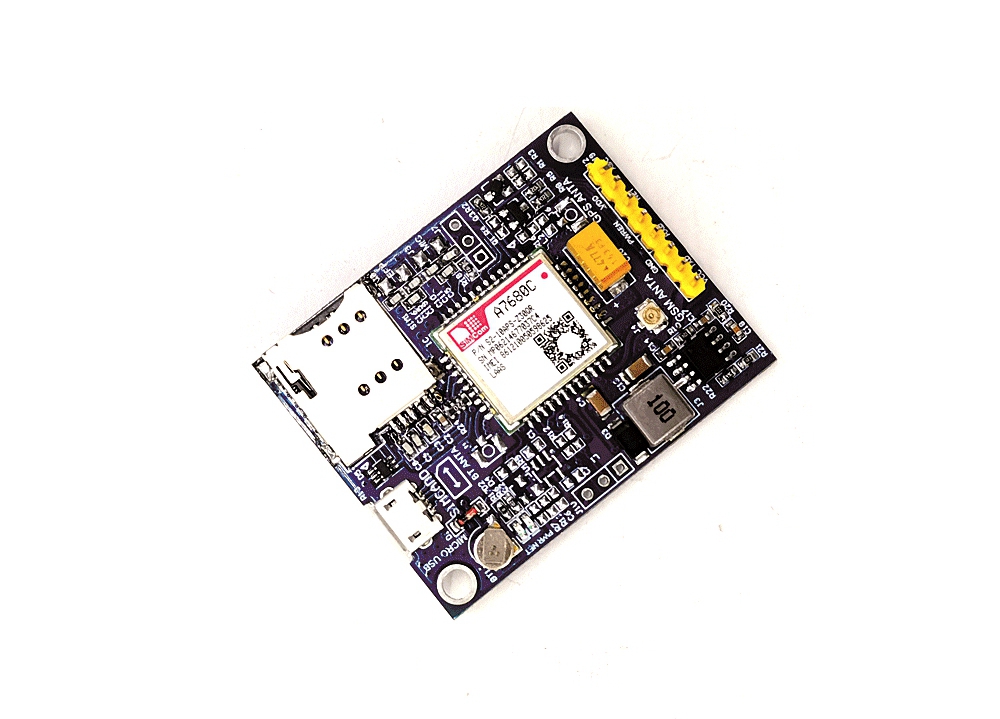

- 1 x Development Board

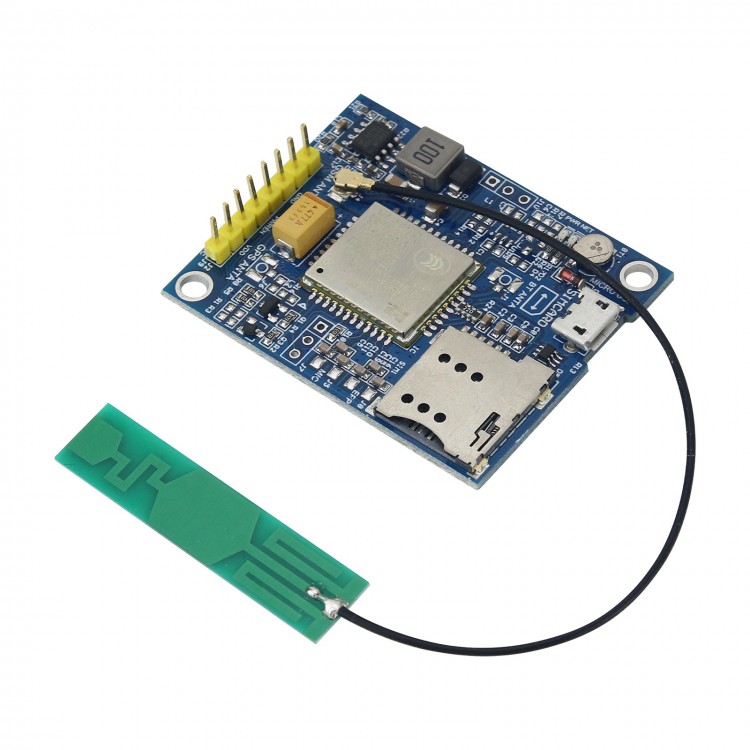

- 1 x PCB Antenna

Note:
- SIM card is not included.
