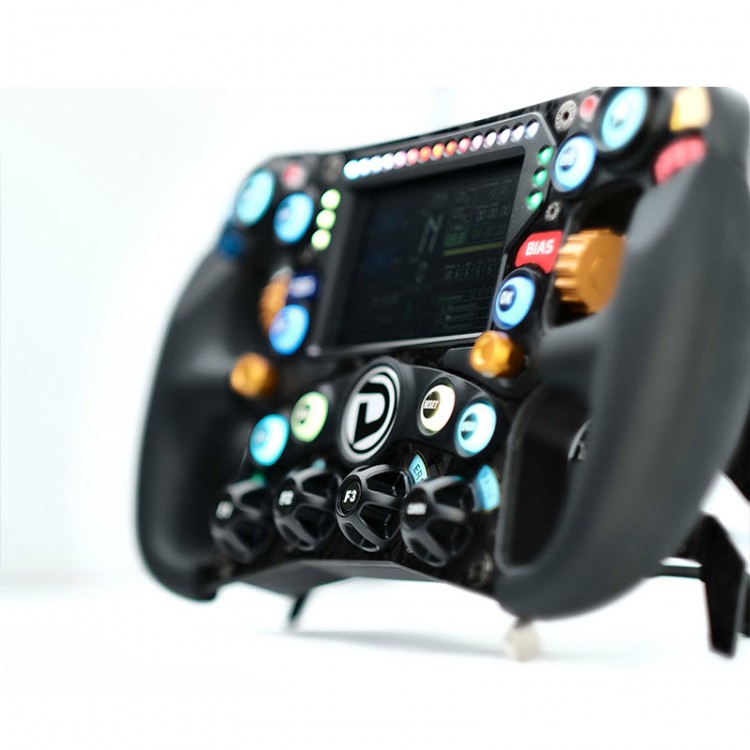

SIMDID FA7 Ultimate Edition 283mm/11.1" Formula Wheel Racing Wheel FA7 U for Simagic Moza Fanatec
Features:
- Immersive racing simulation driving experience: It conforms to the shape and size of racing car design. Whether you are driving an F1 car or a GT car, this steering wheel can make you feel at ease, enabling convenient, fast and accurate control of the car
- RGB luminous buttons that can be controlled by the game car speed or engine speed add a more pleasant gaming experience
- Exquisite manufacturing technology: The handle rubber is made of elastomer rubber with a comfortable feel. The soft gel button cover provides a friendly and comfortable touch experience
- CNC metal aluminum screen kit: Thumb wheel, lever wheel and encoder cap wheel are all made of high-precision CNC aluminum alloy
- The upper left and right button sleeves are made of CNC aluminum alloy
- Outstanding design layout: The safety design that conforms to the real racing steering wheel provides protection for special buttons, so that you will not accidentally touch the buttons during intense driving
- Newly designed USB wiring method: The use process is more convenient and quick. It provides a user experience that fits the real racing car
- The text on the back is laser engraved
- Quickly switch the control mode of the button light through the switch: you can switch to your favorite flashing mode in the mobile phone APP and PC SIMHUB control mode
- FA7 U is connected to the computer USB via a USB2.0 data cable
- Type-c interface is used as a backup interface and it is not necessary to use the interface. When you find that the power supply of the computer USB port is insufficient, please use a 5V mobile phone charger to connect as an additional power supply
- USB bracket is provided
Specifications:
- Connection method: PC USB2.0 (spiral USB cable)
- Width: 283mm/11.1"
- Weight: 1.3kg/2.9lb (excluding quick release)
- Direction body thickness: 27mm/1.1"
- Extender height: 35mm/1.4"
- Installation conditions: 70mm/2.8" hole spacing for quick release (any base with quick release using 70mm/2.8" hole spacing can be installed and used)
- LCD: VOCORE 4.3 inches (controlled by SIMHUB/Z1 dashboard software)
- RGB LEDS: Total 38 (SIMHUB control. 21 speed lights, 10 for buttons, 4 for encoders, and 3 LOGO backlight RGB)
- Hardness of elastomer injection handle: 70 SHORE
- Material: 6061 aluminum, no plastic, no 3D printed parts. 5mm/0.2" thick carbon fiber panel
- Button control: 10 encoders (6 with button functions)
- Seven-way joystick: 2 (no press output)
- Total number of game configuration output keys: 48
- Clutch: 2, Hall sensor
- Shift paddles: 4, Hall sensor
Connection and Installation of FA7 U:
FA7 U is connected to the computer via a USB cable, not through your wheel base, and does not require the use of your base's setup software. After connecting the steering wheel to the computer's USB port, you can bind the buttons on the steering wheel in the game after opening the game.
FA7 U can be installed on any wheel base, and you only need to buy a quick release for the relevant base.
- Example 1: If you have an SC base, buy another quick release with 70mm/2.8" hole spacing as you are using now!
- Example 2: If you have a MOZA or Simagic wheel base, or use D1 quick release, please contact customer service to buy a quick release with a 70mm/2.8" hole spacing for MOZA/Simagic wheel base or D1. You can choose a quick release without PCB connection wire, because it is more affordable.
- Example 3: If you are using an original wheel base for FANATEC, you need to buy a Podium Hub for FANATEC. If you are a modified user of quick release for FANETEC, then this matter will become easier.
- Example 4: No matter what brand of wheel bases you use, as long as you use a quick release with a 70mm/2.8" hole spacing, you can install FA7 U.
How to use the RGB LED lights and screen of FA7 U?
After FA7 U is connected to the computer via a USB cable, please contact after-sales service to obtain the simulation racing management software SIMHUB. Through this software, the screen and LED lights of FA7 U can be linked with racing games.
Package Included:
- 1 x Steering wheel
- 1 x Steering wheel back extender
- 9 x M5 screws
- 1 x Sticker tweezers
- 4 x Stickers
- 1 x Hexagon wrench
- 1 x USB data cable
- 1 x Instructions
Packaging Details:
- Weight: 2kg
