Simplayer 4-Axis Racing Simulator G-Force Set SIM Racing Rigs for G-Force Seat Aluminum Brackets

Simplayer 4-Axis Racing Simulator G-Force Set SIM Racing Rigs for G-Force Seat Aluminum Brackets

Features:
- Main function: fixed to the four corners of an aluminum profile bracket to achieve the dynamics of the game
- Four-axis G-force dynamic system: Human-vehicle integration|precise response|instantaneous acceleration|low delay of action. It can accurately perceive your body posture such as acceleration/cornering/drifting/bumping/impact. In addition, it restores the real road conditions, allowing you to immerse yourself in the fun of driving
- With accessories for 4080 aluminum profile to be installed
- Electrical safety and high reliability:
  * Safety level: The drive is up to the safety level of home electronics.
  * Safety technology: self-developed 48V low-voltage driver, instead of 220V high-voltage high-current industrial driver.
  * Safety protection: It includes an automatic power-off protection switch, which can effectively prevent potential safety hazards such as fire and short circuit.
- 4-axis 5DOF: 3DOF plus 2 auxiliary dynamic somatosensory, i.e. pitch/tilt/sideways/up and down/bump vibration
- Silent servo and drive integrated motor:
  * 48V low-voltage silent driver
  * 0.01mm position accuracy
  * Highly integrated built-in drive motor
  * 25ms response
  * 250mm/s instantaneous amplitude
- Small, interference-free safety controller box:
  * Small size: 32.5cm x 20.5cm x 8cm/12.8" x 8.1" x 3.1"
  * No noise: current noise < 30 dB
  * No interference: USB high-frequency communication, high-speed digital isolation IC and isolated power module enable strong anti-interference, no peripheral conflict
- Full CNC aluminium alloy electric cylinders:
  * Material: European standard 6061 aluminum alloy and full CNC machining
  * Height: Low height design and open space for intense driving operation
  * Texture: Anodized matte black with a frosted texture
- Single-line single-cylinder:
  * The wiring harness is neat and beautiful
  *The self-developed internal controller and highly integrated circuit module make the cylinders have only one line. Compared with cylinders with two or three lines on the market, it is more beautiful and tidy
- Freely assembled and highly adaptable: Compatible with aluminum profiles such as 4080, 40120 and 40160 on the market. Attention: If you use other aluminum profiles, please contact customer service for specific details
- One-year warranty

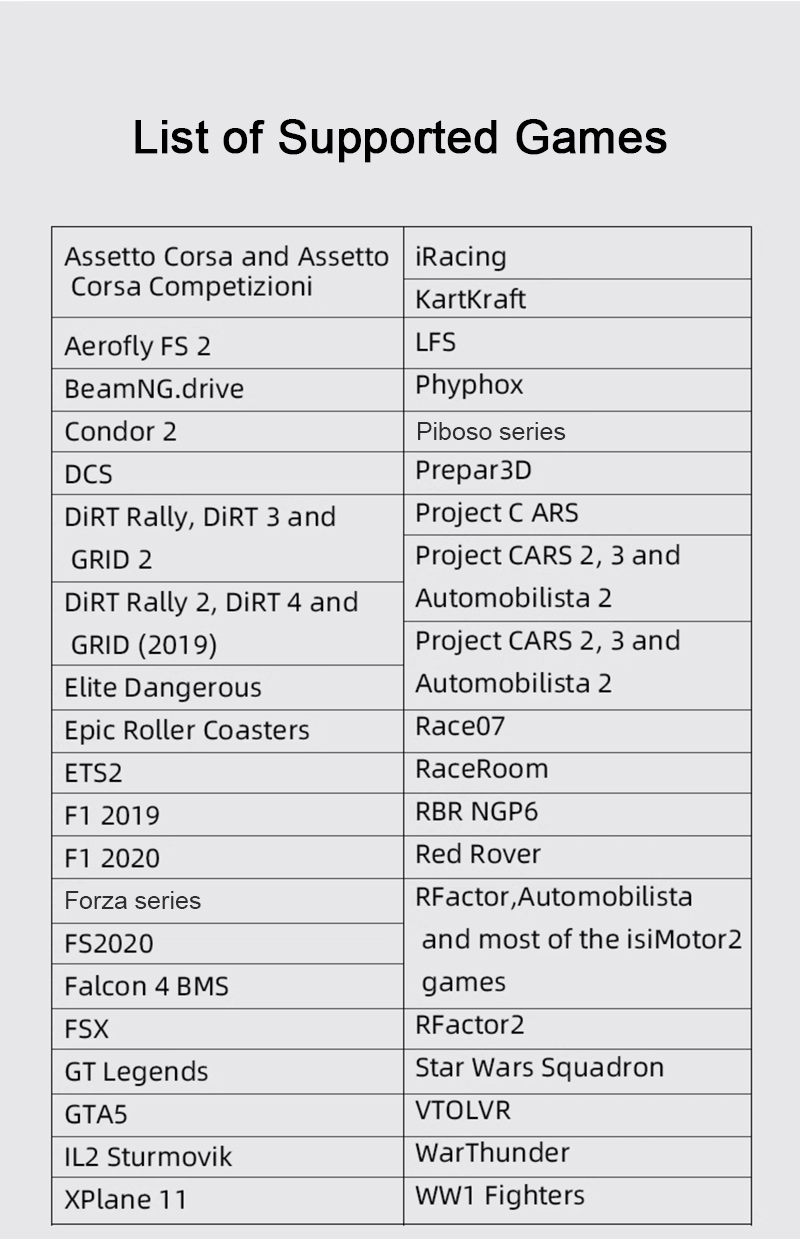

- Supported software: Compatible with SimTools and Flypt (free to use)

Transmission Parameters:
- Power element: 448V/400W low-voltage built-in drive integrated servo motor
- Input voltage range: 110V-240V
- Transmission element: full CNC high-precision structure servo cylinder
- Transmission mode: imported precision ball screw
- Payload of electric cylinder system: 300KG/661.4LB
- Stroke of electric cylinder system: 100mm/3.9"
- Position accuracy of electric cylinder: 0.01mm/0.0004"
- Response speed of electric cylinder: 250ms
- Controller noise: less than 30 decibels

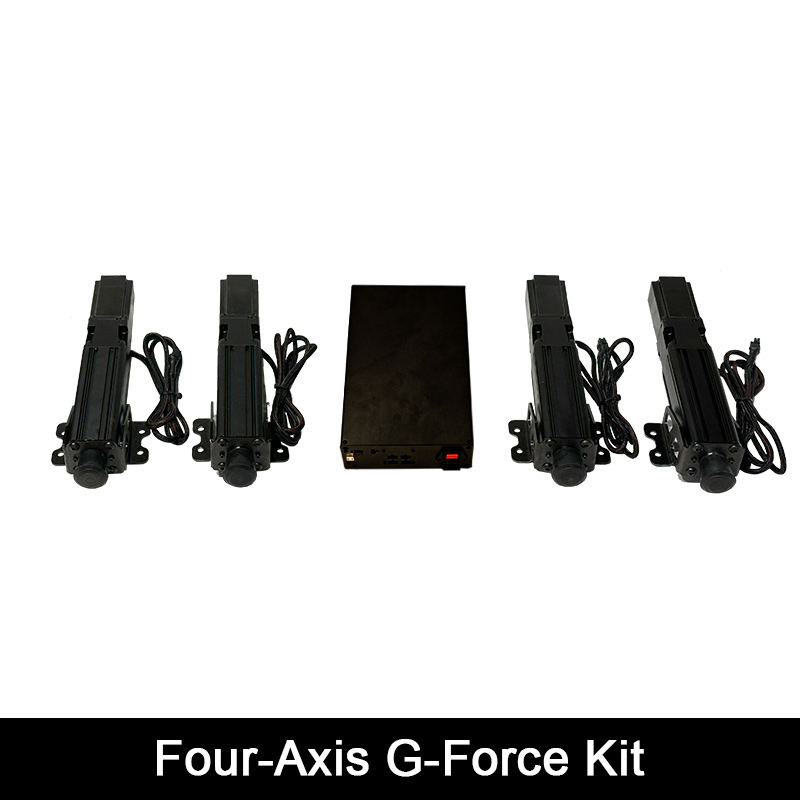

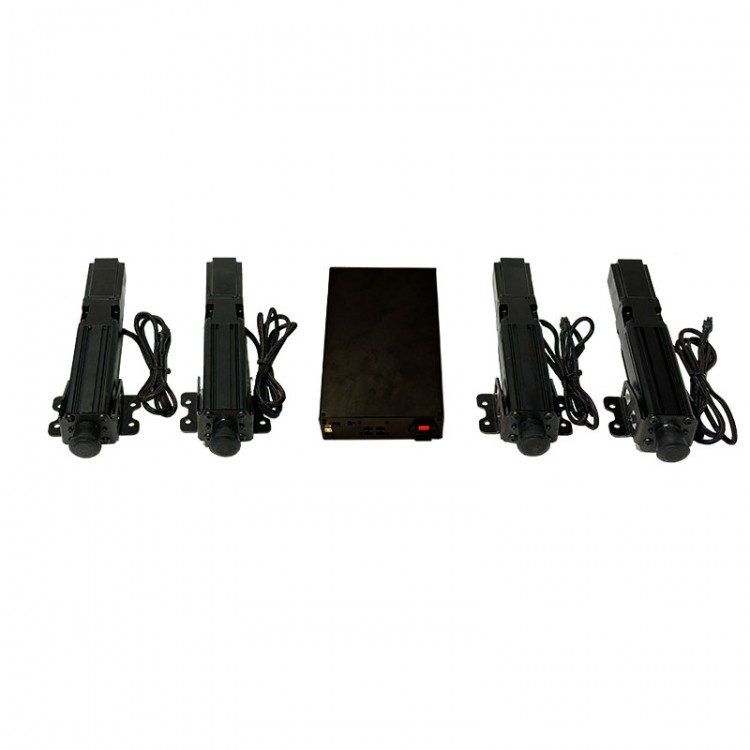

Package Included:
- 4 x Square cylinders
- 1 x Controller box
- 1 x Emergency stop switch
- 1 x Data cable
- 1 x Power cord

Packaging Details:
- Packing size: 50CM*40CM*30CM
- N.W.: 30KG

Note:
- Bracket is not included.
