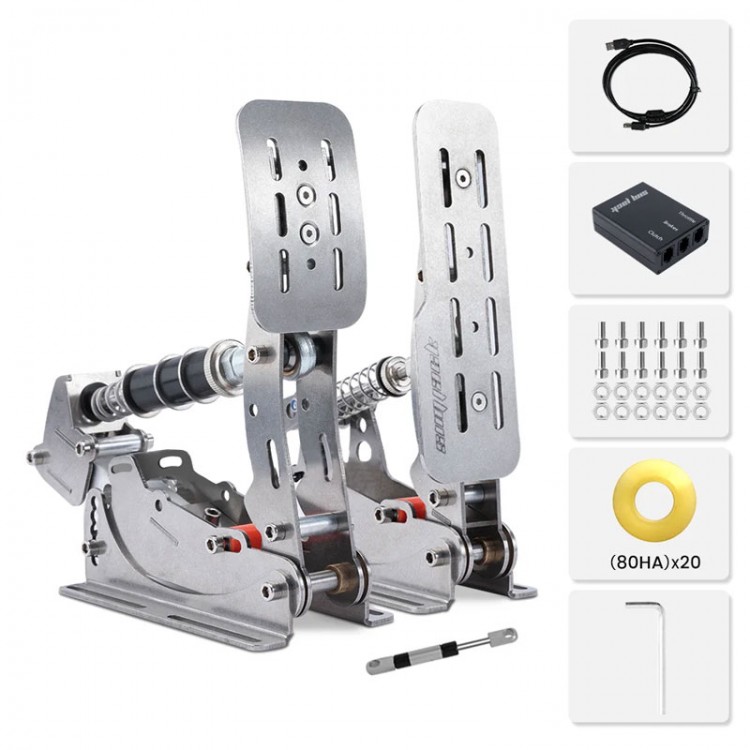

Simplayer PRO-P2+H1 Sim Racing Pedals Load Cell Pedals Standard Version with One Hydraulic Rod

Simplayer PRO-P2+H1 Sim Racing Pedals Load Cell Pedals Standard Version with One Hydraulic Rod

Advantages:
- High strength steel, high precision hall sensor, mapping pedal output curves, adjustable spacing and height, and anti-slip design.
- High-precision hydraulic sensors: The throttle and brake pedals incorporate 16-bit high-precision pressure sensors with an impressive resolution of up to 65536 PPr. Notably, the brake pedal can withstand a maximum force of 200kg. This high-precision detection brake pedal pressure allows the driver to easily achieve their desired force.
- Equipped with two sets of damping rubbers-one set tailored for beginners and one for professional gamers-coupled with accompanying springs on the pedal assembly. Various combinations of sensations can be achieved, closely simulating a realistic experience.
- Throttle and brake pedals: All support stepped strength adjustment as well as further stepless fine tuning.
- Self-lubricating bearing: Design tolerances have been meticulously optimized to minimize clearances on every component. Each vital pivot point is outfitted with self-lubricating bearings, which have undergone automatic durability testing to guarantee normal operation even after completing one million working cycles.
- High-strength steel with CNC precision laser cutting: All structural components are made with high-strength steel, enhanced through CNC precision laser cutting. This combination not only provides a simulated realistic touch but also ensures increased rigidity and stability, especially under heavy loads.
- Connection to PC via USB: PC Once calibrated, the pedals can be seamlessly connected to your PC via USB.
- Output curve adjustments: Pedal output curves can be easily configured to meet various requirements.
- Worry-free installation: Video tutorials can be provided.

Features:
- Only used for PC, but not for PS4/PS5, XBOX or MAC
- Made of quality stainless steel, it is anti-rust and very durable
- 3mm stainless steel made by laser cutting, grinding and polishing
- For computer use. Plugged directly into USB, no driver installation required
- Brake damping adopts imported rubber with hardness of 70
- Added heel and toe position on throttle panel, and brake panel widened for easy heel-toe operation
- The pedal strength can be adjusted by adjusting the height of the hole
- The inclination angle of the pedals can be adjusted by adjusting the height of the hole
- The BOM material spring is not loose and does not slip, reducing the friction sound of the shaft
- Brake arc pedal is made according to the real racing pedal surface
- Throttle with long panel design makes it more conducive to the delicate foot feel control of the throttle
- Customized 45CM sensor long cable makes it more convenient to connect to the pedal control box
- Rubber will not deform or burst in fierce competitions
- STM32 control box provides a full-range 16-bit output for each pedal

Package Included:
- 1 x Set of Racing Pedals

Packaging Details:
- G.W.: 3.7kg

Note:
1. We provide clear pictures and measurements. Please check as much as possible to make sure the item is the one that you need.
2. Please allow 0.5-1 inch difference due to manual measurement (1 inch=2.54 cm).
