Simple RF Spectrum Analyzer Tracking Generator 33MHz-4400MHz D6 V2.03B ADF4351 VFO Source

Simple RF Spectrum Analyzer Tracking Generator 33MHz-4400MHz D6 V2.03B ADF4351 VFO Source

Specifications:
- Item Name: JTGP-1033 Simple Spectrum Analyzer with Tracking Generator/ADF4351 VFO Source
- Attribute: RF Frequency Domain Analysis Tool
- Interface: USB
- Powered Supply: Via USB
- Standby Current: ≤90mA
- Sweep Frequency Current: ≤350mA
- Sweep Frequency Bandwidth: 33MHz-4400MHz
- Turn on the tracking generator output bandwidth 35MHz-1500MHz
- Sweep Frequency Step: ≥35~68.75MHz/125Hz, 68.75~137.5MHz/250Hz, 137.5~275MHz/500Hz, 275~550MHz/1kHz, 550~1100MHz/2kHz, 1100~2200MHz/4kHz, 2200~4400MHz/8kHz
- Sweep Frequency Speed: ≥800 points / sec
- Sweep Frequency Dynamic Log-Ratio: > 50dB
- Output Power of Point Frequency or Sweep Frequency: ≈0 dBm
- Input Detection: ≤10dbm
- Background: ≈ -60dBm
- PC Software: NWT4.11.09 Version
- PC Operating System: Support for winxp, win732, win764
- Uses: For measuring frequency, simple transmission frequency analysis of the transmission network. Spectrum analyzer is commonly known as an RF multimeter.

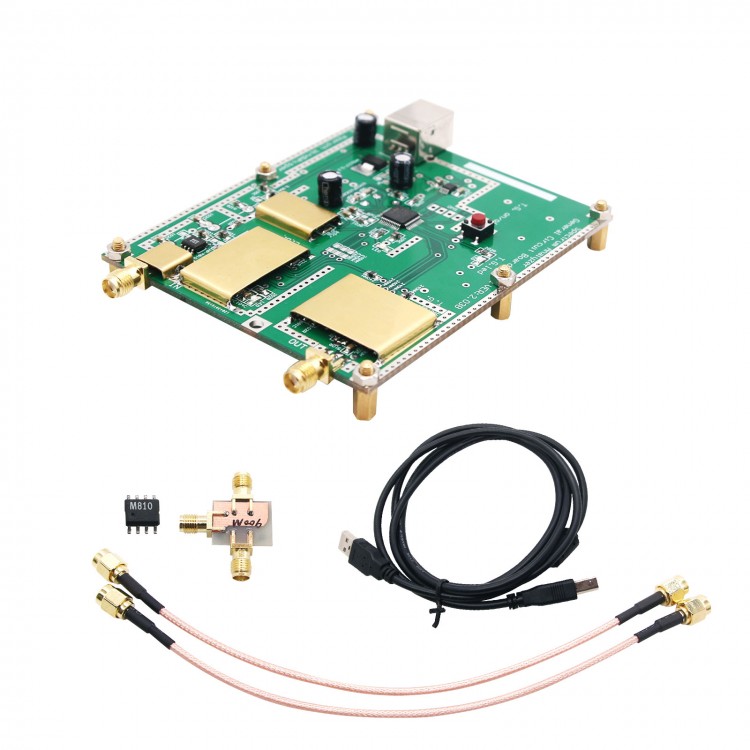

Package Included:
- 1 x Simple Spectrum Analyzer
- 2 x SMA Jumper Wires 20cm
- 1 x USB Cable

Note:
- There is a on-board switch that controls the output of the tracking generator. The default status is the tracking function is off when it is powered on. And its status is unchanged when it is used as a signal source.
- Since the input detection terminal of this unit can withstand up to 10mw or 10dbm, it is recommended to use the tracking generator in it. Please not use an external noise source instead of the tracking generator, because the total output noise of the noise source is too large. For example, the bandwidth output of noise source 1khz is 0.001mW or -30dbmW, then the 100mhz bandwidth and the theoretical output should be 100w.
