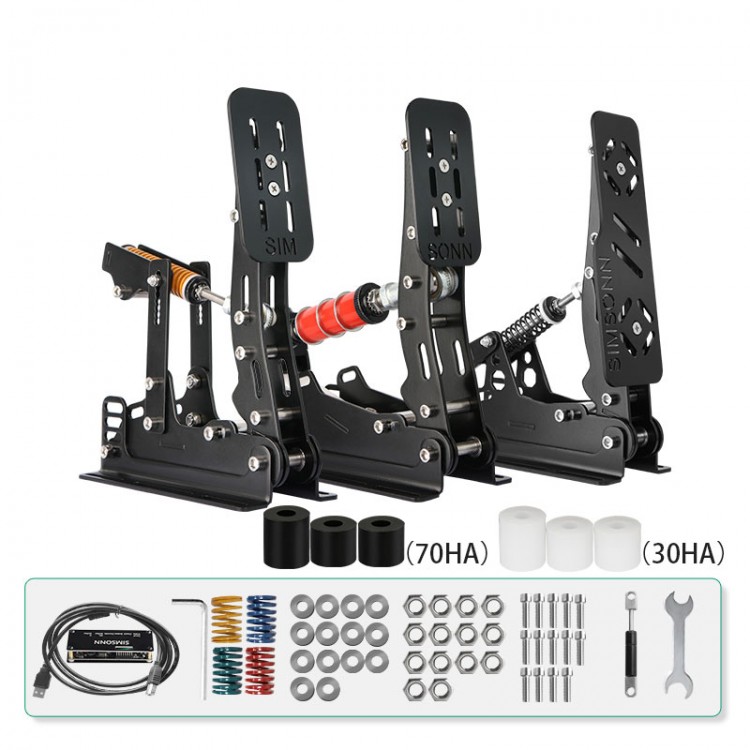

SIMSONN 3-Pedal Set SIM Racing Pedals Load Cell Pedals (with 1 Hydraulic Rod) without Pedal Plate

SIMSONN 3-Pedal Set SIM Racing Pedals Load Cell Pedals (with 1 Hydraulic Rod) without Pedal Plate

Features:
- The 3-pedal set includes clutch, brake and throttle pedals
- Compatibility: Only for PC, not for PS4/PS5, XBOX or MAC
- Made of quality stainless steel, it is corrosion-resistant and durable
- 3mm/0.1" thick stainless steel boasts smooth surface without burrs thanks to laser cutting and polishing
- USB connection: Connect it to your computer using a USB cable and no need to install drivers
- Brake damping is made of red polyurethane. Dampings with hardness of 50HA, 30HA and 70HA are available, making it easy to replace
- Heel and toe positions have been added to the throttle panel, and the brake panel has been widened for easy heel-toe operation
- The pedal force can be adjusted by adjusting the height of the hole
- The tilt angle of the pedals can be adjusted
- Pedal calibration data is stored in the main controller. You only need to calibrate once. Please contact customer service for Simsonn calibration software and tutorials. Easy to use the Simsonn calibration software
- All key pivot points have plain bearings. Ball bearings are used for pedal arm bottom mounting to eliminate clearance and prevent wobble
- SIM racing pedals for computer games: Simsonn pedals are the perfect choice for casual simulator players and Esports professionals
- Long spring life, paragraph braking and adjustable stroke
- For Windows system and no need to install drivers. Just plug and play. Multiple forward and one reverse gears meet the needs of most 5- or 6-speed manual transmissions and very few 7-speed manual transmissions, covering the entire range of applications
- Supported games include but not limited to: ETS2/ATS, FORZA HORIZON 4/5, WRC7/8/9, PROJECT CARS 2/3 and DIRT RALLY 2. You can contact customer service to know more
- 200KG load cell: The precision sensor adopts surface sandblasting and anodizing process to make its appearance more beautiful
- Cable material upgrade: The cables are more durable, thicker, longer, and have a hemming design
- Control box and software updates: The upgraded pedal control box can restore and upgrade the firmware to keep it updated in new games. Eight custom output curves can be configured using the SimPedalsConfig_V4 software and stored in the control box hardware to avoid duplicate calibrations
- With the addition of a limit spring nut, the pedals will not loosen during high-intensity use, avoiding frequent calibration and dead-time adjustment
- There will be no pedal shaking, zero friction, and stable rebound thanks to upgraded motor pole ball bearing
- STM32 control box: The pedals feature a 16-bit high-manganese load sensor with a resolution of up to 65536 PPr

Specifications:
- Material: Stainless steel
- Compatible models: Compatible with pedal plates of all models. Supports connection to PC via USB
- Maximum sensing values of sensors: Clutch/Throttle: 20kg/44.1lb; Brake: 200kg/440.9lb

Pedal Maintenance Tips:
- If you use pedals regularly, lubricate the friction-prone parts of the pedals regularly to prolong the lifespan of the pedals.

Package Included:
- 1 x 3-Pedal Set

Packaging Details:
- G.W.: 5.5kg
