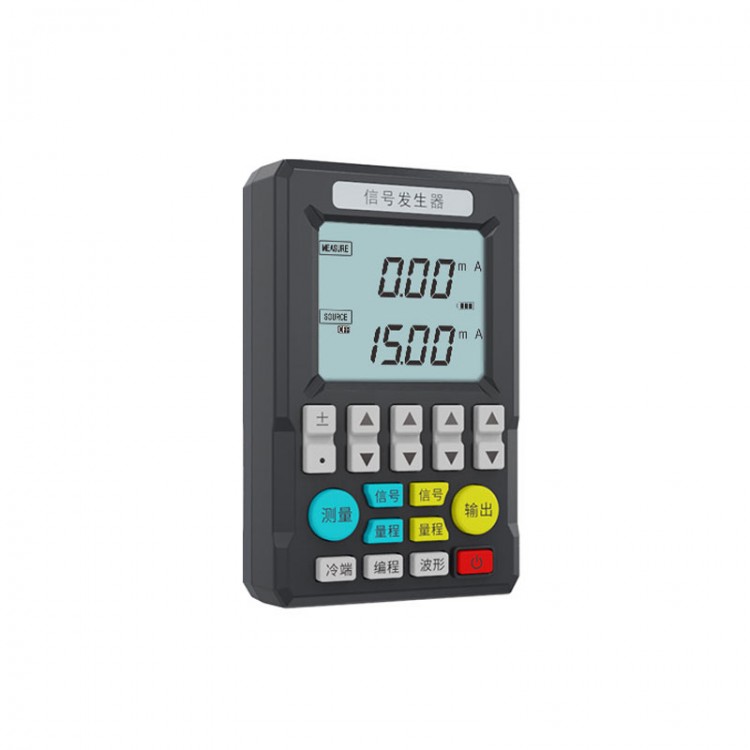

SIN-C703S Versatile Version Portable Handheld Signal Generator Multifunctional Signal Source with LCD Screen
Application:
- Mobile current source: 24V DC distribution, more convenient on-site power supply.
- Analog signal source: simulate various signals, debug one on site and get it done.
- Signal measuring instrument: portable signal measurement, smaller than a multimeter.
- Programming signal source: four types of waveform output (normal timing, rising sawtooth wave, falling sawtooth wave, square wave), simulate function signal.
Specification:
- Model: SIN-C703S
- Working temperature: -10℃ ~ 55℃
- Working humidity: 20% - 80%RH non-condensing
- Storage temperature: -20℃ ~ 70℃
- Size: 115 x 71 x 30mm
- Using power: 300mA
- Current protection: 30V
Package Included:
- 1 x Signal Generator
Note:
- Battery is not included.
