SINCO TECH DO921 OBD2 Dashboard 6.5" Universal OBD2 Dash Display Bluetooth Module For Automobile Race
Description:

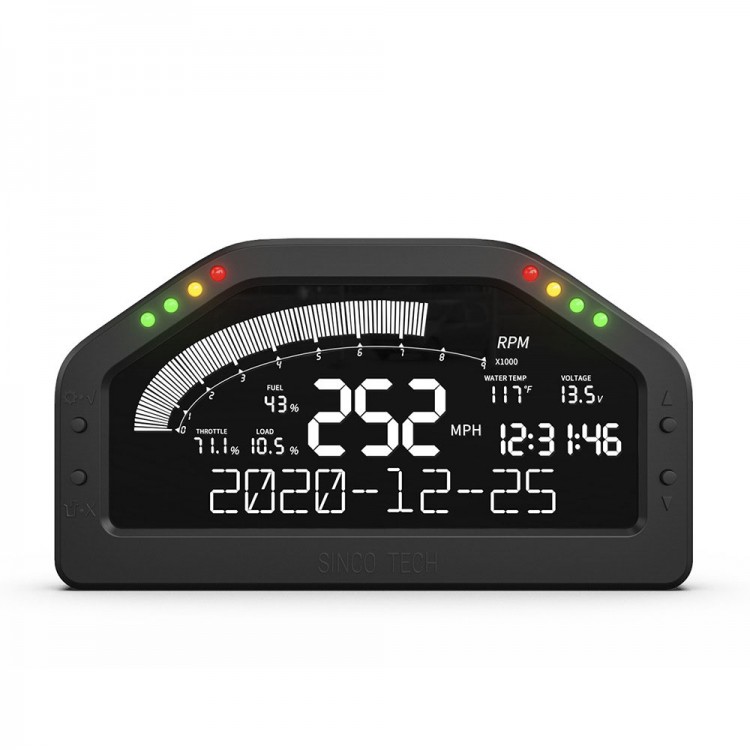

DO921 OBD2 digital dashboard display adopts 6.5" backlit LCD display, which is commonly used in most vehicles with 12V engine that comply with the second-generation automatic diagnosis system (OBDII). Speed band display can reach up to 9000 rpm. More than 12 items of engine data can be read, including speed, vehicle speed, boost, water temperature, intake pressure, intake temperature. DO921 OBD meter starts with white font displayed by default when it turns on. 7-color adjustable screen color is stylish and dazzling. It is easy to install, plug and play.
Advantages:
- The instrument uses low-consumption LCD, automatically power off when the flame is turned off
- 8 colorful LED lights with sequential indication function
- Bluetooth automatic data transmission
- 30 years of instrument production research and development technology
Applicable Protocols:
1. ISO9141
2. KWP2000_FAST
3. KWP2000_5BIT
4. J1850_PWM
5. J1850_VPW
6. CAN_250K_11BIT
7. CAN_250K_29BT
8. CAN_500K_11BIT
9. CNA_500K_29BIT
Features:
- A variety of data, convenient and fast. Covers more than 12 kinds of vehicle engine main data, bid farewell to the cumbersome multi-instrument mode, and more convenient to use. Speed display, vehicle speed display, remaining fuel amount in the fuel tank, accelerator pedal position, power supply voltage, turbocharging, intake pressure, ignition advance angle of cylinder 1, intake air flow, intake air temperature, vehicle load rate, coolant temperature
- Multifunctional display area at the bottom: speed value display, intake pressure, turbocharging, intake temperature, ignition advance angle of cylinder 1, date display
- Bluetooth data transmission: Bluetooth OBD module transmits data to the display via Bluetooth to realize the long-distance placement of the Bluetooth OBD module and the display
- Speeding alarm, safe and practical. The meter can be set with alarm and reminder function of rotating speed and vehicle speed, reminded by warning sound and 8 LED indicators
- Seven-color backlight: The meter provides 7 color numbers, and users can choose the colors according to their preferences or the current environment
- Adjustable brightness: Users can choose to adjust the brightness manually or automatically according to the current environment, there are 3 levels of brightness and automatic sensitivity to choose from
- Unit switching: The system can switch the speed, temperature, and pressure units. KM/H and MPH; Celsius (℃) and Fahrenheit (℉); BAR, PSI and KPA are available for users to choose
Specifications:
- Brand: SINCO TECH
- Model: DO921
- Display type: digital
- Working voltage: 9V-16V

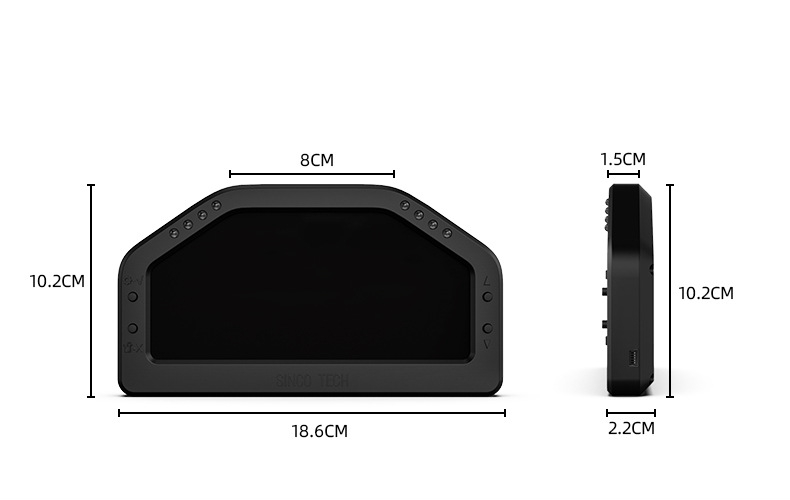

- Screen size: 186MM*102.4MM*22MM
- Applicable models: All models that comply with the second generation automatic diagnosis system (OBDII)
Package Included:
- 1 x OBDII Bluetooth Transmit Module
- 1 x Display
- 1 x Display Bracket
- 1 x Power Cord (for wiring)
- 1 x Power Cord (connects car cigarette lighter)
