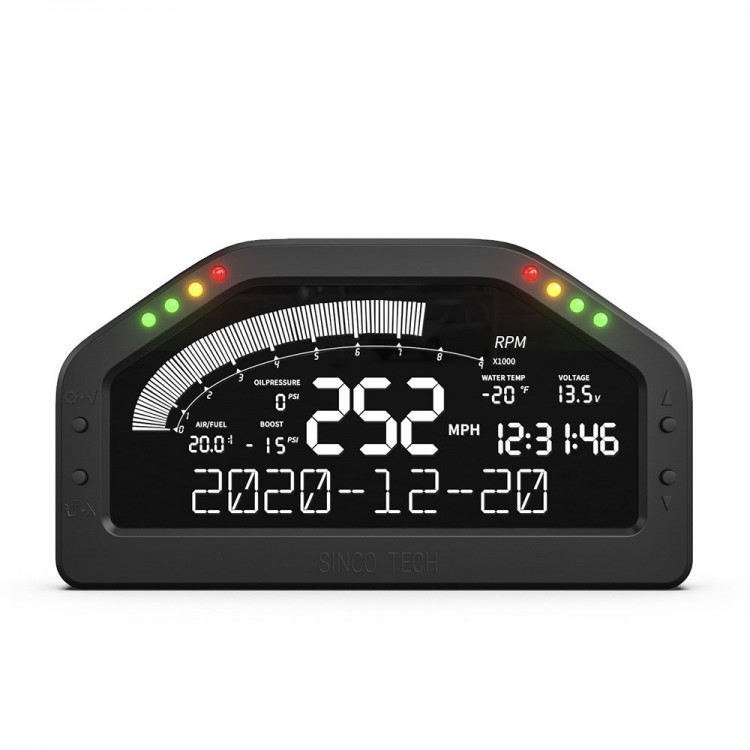

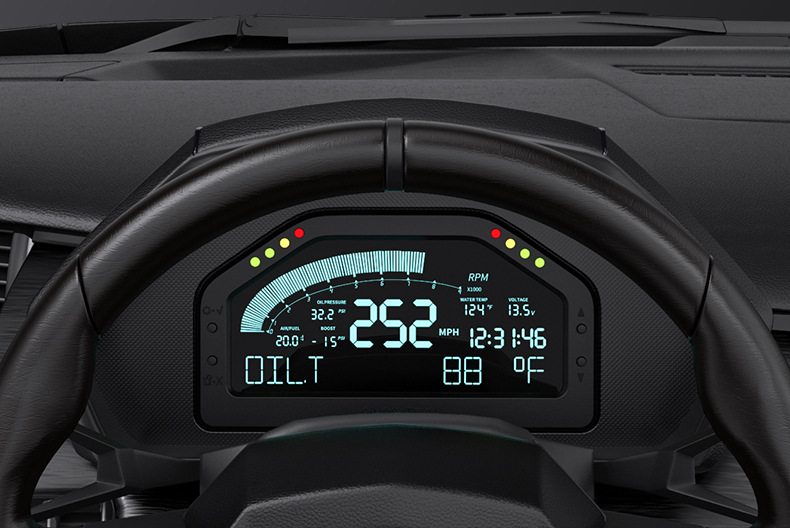

SINCO TECH DO922 Dashboard Display Race Dash Display Kit Water Temperature Oil Pressure Speedometer
Features:
- DO922 sensor, multi-function racing instrument
- Convenient and practical, accurate data
- Low-consumption LCD display, and the screen is automatically powered off when your car turns off
- 8 colorful LED lights with sequential indication function
- The display and the controller are automatically connected via wireless Bluetooth
- 30 years of instrument production research and development technology
- Multifunctional display area at the bottom: voltage display, exhaust gas temperature display, air-fuel ratio display, oil temperature display, water temperature display, oil pressure display, booster display
- Bluetooth data transmission: The sensor controller transmits data to the display via Bluetooth, realizing the remote placement of the controller and the display
- Speeding alarm, safe and practical. The instrument can be set with the alarm reminder function of rotating speed and vehicle speed, and remind users through the warning sound and 8 LED indicators
- Seven-color backlight: In addition to the default white display, the meter also provides 7 colors. Users can choose colors according to their preferences or the current environment
- Adjustable brightness: The user can choose to adjust the brightness manually or automatically according to the current environment. There are 3 levels of brightness and automatic sensitivity to choose from
- Unit switching: The system can switch the speed, temperature, and pressure units. KM/H and MPH; ℃ and ℉; BAR, PSI and KPA are available for users to choose freely
Product Parameters:
- Model: DO922

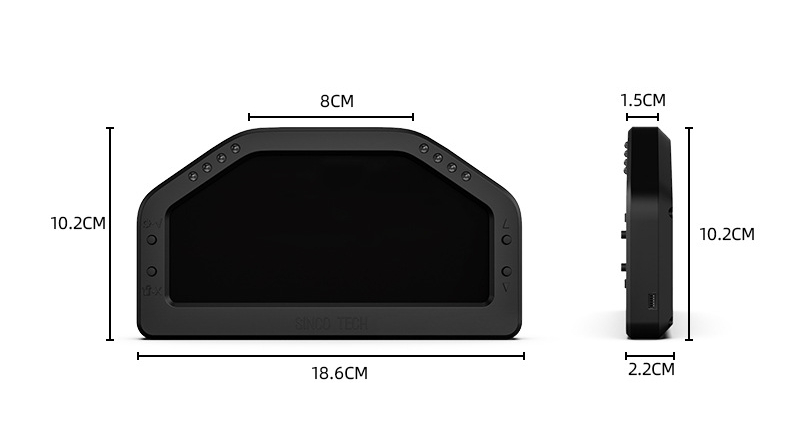

- Size: 186*102*22MM
- Display type: number
- Maximum speed: 9000
- Operating voltage: 9V-16V
- Applicable models: all 12V vehicles

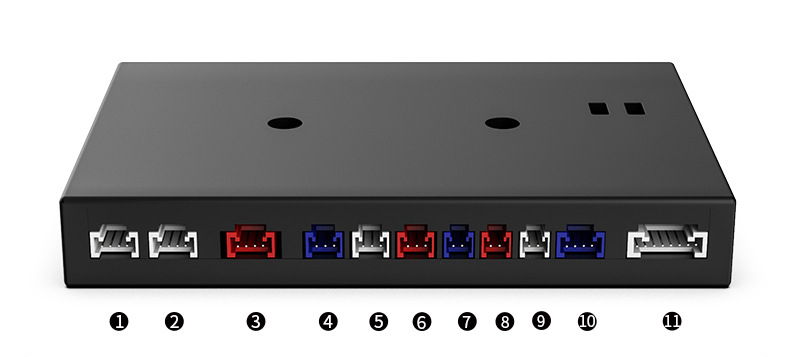

Wiring Instructions:
1. Spare
2. Spare
3. Power supply input (red~ACC, black~ground)
4. Boost sensor (red~sensor, green~signal, black~sensor-)
5. Oil pressure sensor (red~sensor, green~signal, black~sensor-)
6. Air-fuel ratio sensor (red~sensor, green~signal, black~sensor-)
7. Oil temperature sensor (green~signal, black~ground
8. Water temperature sensor (green~signal, black~ground)
9. Exhaust temperature sensor (green~sensor, orange~sensor)
10. Speed signal (green line) and vehicle speed sensor (orange line)
11. Spare
