SINCOTECH DO904 Car Race Dash Bluetooth Full Sensor Dashboard LCD Rally Gauge
Description:
- Give your car that Race-car look !!
- High quality
- Easy installation and setup
- Clear, bright, high visible green backlit LCD display
- Uses OBD2 bluetooth connection
- Alarm and LED's
- Great for NA vehicles with OBD2 (does not display boost or oil pressure)

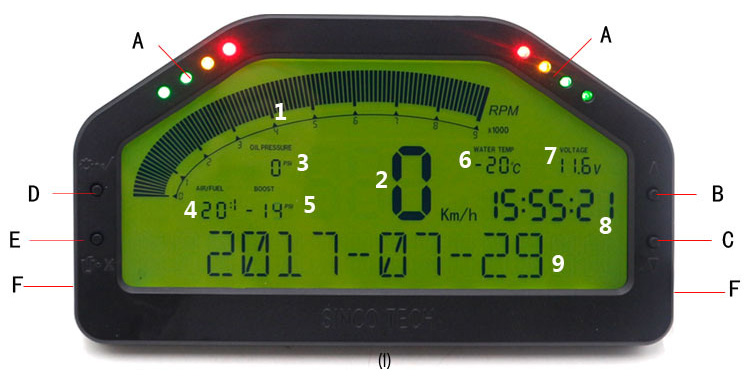

A: LED Indicator ; with 4LEDs in both sides,the color are Green/Green/Yellow/Red, the LEDs will lighting acoording the Rotate speed increasing
B:Upper option button; could choose parametter and goes to up/down to set the parameter
C:Down option button:could choose parametter and goes to up/down to set the parameter
D:Menu button: used for get menu page and confirmation of the parameter
E;Exit key: used for exit menu and cancel the parameter adjustment

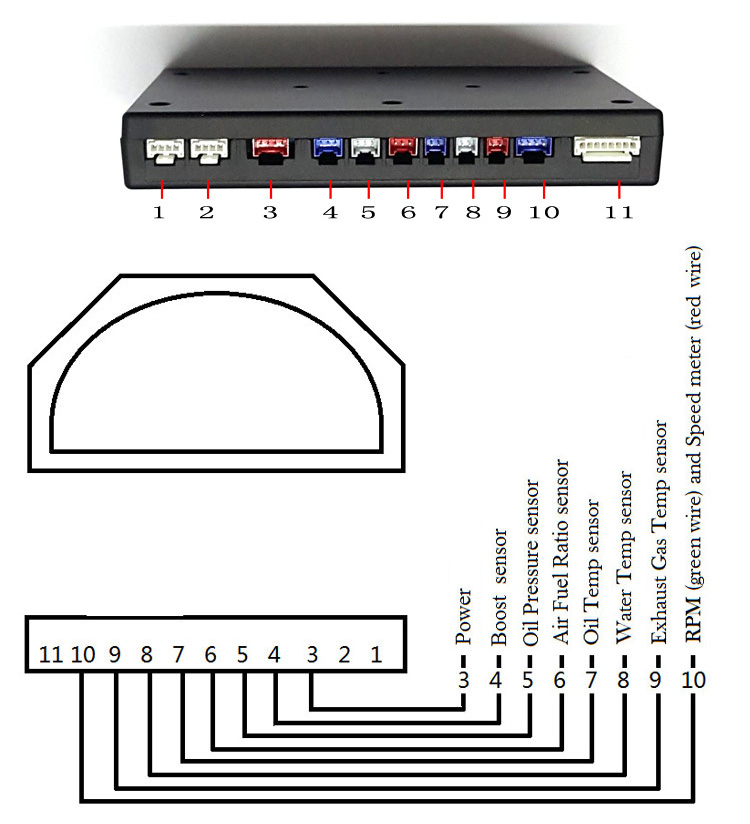

F:Data port: Use for connect to the sensor data connet port
G: Installation position:used to install the device to the car by screws
DO904 -Manual Instruction: Click here
Specification:
- Name: Dash Race Display
- Connect: Sensor bluetooth
- Model: DO904
- Voltage: 9V-16V DC
- Speed: 9000rpm tacho
- Suitable For: 12V Universal cars.

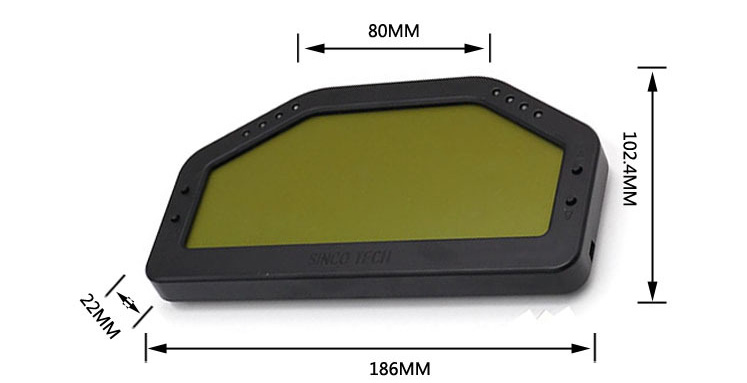

- Size: 185 x 102mm

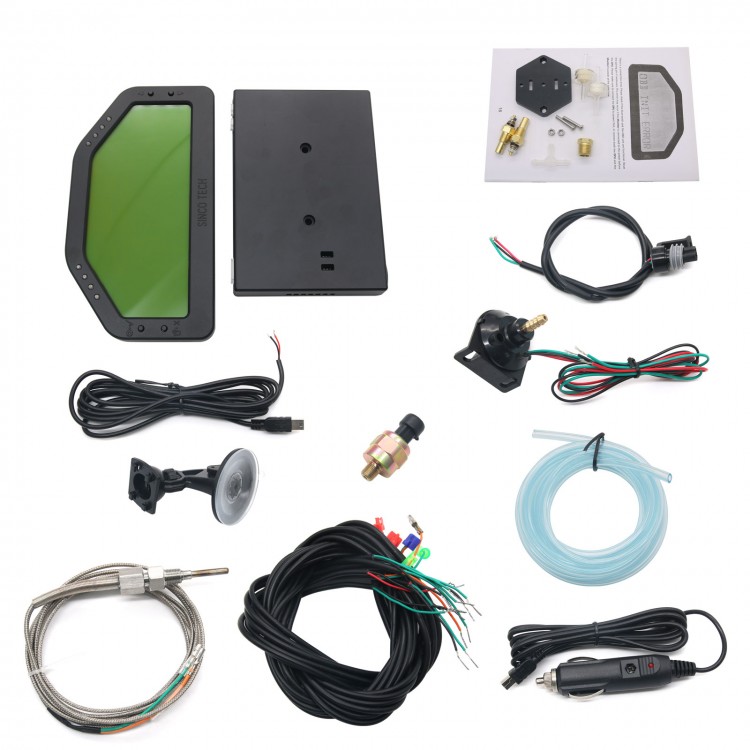

Package Included:
- 1 x Dash display
- 1 x Power leads
- 1 x Installation Stand
- 1 x OBD / Bluetooth Unit
- 1 x Manual
