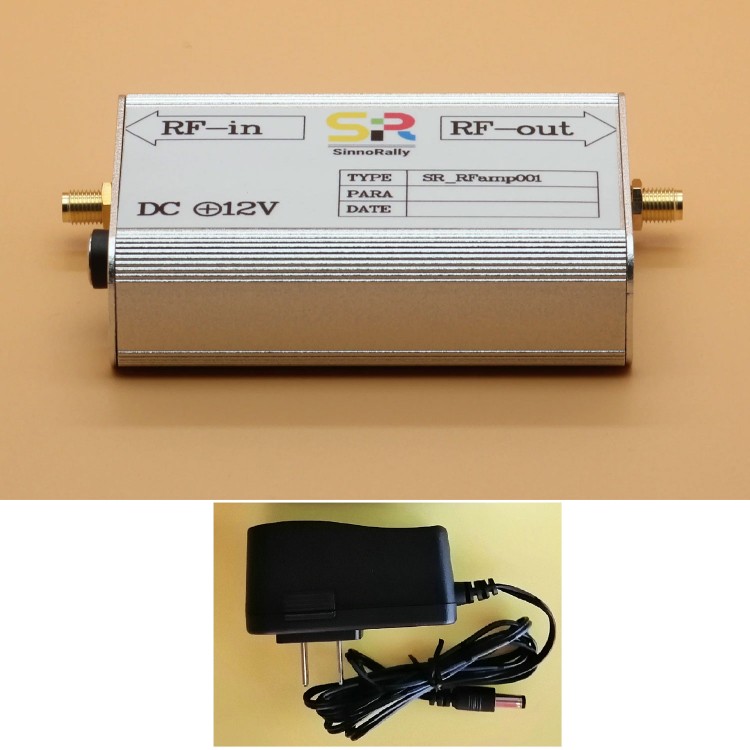

SinnoRally RFamp001 9KHz-3GHz 30dB RF Amplifier EMC Electromagnetic EMI Low Noise RF Preamplifier with 12V Power Adapter
Specification:
- Product size: L x W x H = 88 x 58 x 25mm
- Power supply: DC12V, current < 300mA
- Input and output impedance: 50ohm
- Maximum output power: 10dBm
- Input RF signal power: <= -30dBm, limiting DC voltage 15V
After the RFamp001 signal source is connected to a 40dB attenuator, the measured spectrum of 30MHz-1GHz is received from the spectrophotometer input, and it can be seen that the gain fluctuation is very small, less than ± 2dB.
RFamp001 input is connected to a magnetic field probe, and the actual working effect of the amplifier is achieved.
RFamp001 Background Noise Diagram:
SR-Rfamp001 Actual Measurement Spectrogram:
Usage Diagram:
Precaution:
- Connect all signal lines, power on the spectrograph first, and then power on the amplifier.
- The amplifier does not support hot plug/unplug. Please do not plug or unplug the signal line with electricity to prevent static electricity or leakage from damaging the amplifier.
Package Included:
- 1 x RF Amplifier
- 1 x Probe
- 1 x Storage Box
- 1 x 12V Power Adapter
