• SINO 2 Axis Dro Digital Readout with 2 pcs KA300-320 Linear Scales Complete DRO Kit

SINO 2 Axis Dro Digital Readout with 2 pcs KA300-320 Linear Scales Complete DRO Kit

Availability: In stock, usually dispatched in 1 business day

  • Price:$219.52
  • Price in reward points: 2195 Reward Points: 22
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $215.13 $210.74 $204.15 $195.37 Contact US
Quantity:

SINO 2 Axis Dro Digital Readout with 2 pcs KA300-320 Linear Scales Complete DRO Kit

Product Decription:
- The digital display ruler can be used in milling machines, grinding machines, lathes, boring machines, wire cutting, Longmen milling machines, small hole machines, etc.

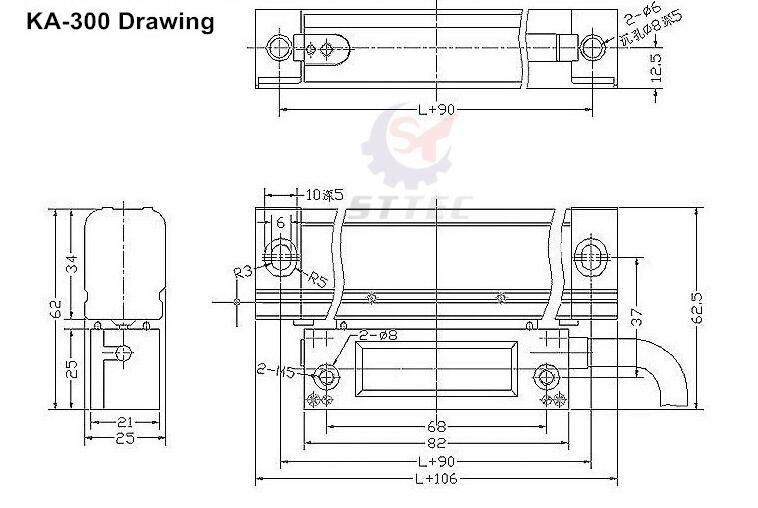

- Model: KA300 series,
- Common range: 220,270,320,370,420,470,520,570,620,670,720,770,820,870,920,970,1020.
- Signal waveform: TTL square wave;
- Bit pin: Nine serial (2 pin connect to 0V, 6 pin connect to A signal, 7 pin with +5V, 8 pin B signal)
- Resolution: 0.005mm; 0.001mm;
- The shielding wire is about 3 meters;
- Warranty:1 year

Product parameter:
- Pitch:0.02mm(50 wire/mm)
- Resolution:5um,1um,0.5um
- Accuracy:+3um,+5um,+15um(20+0.1℃)
- Range:70-3000mm
- Move speed:High speed ruler120m/min(custom)
- Ordinary ruler:≤40m/min
- Power:5V+5%,80mA
- Cable line length:3m tandard (KA-200 open grid ruler standard 2m,if you need other length,we can custom)
- Working temperature:0-45℃
- Plug foot:9 core plug,support RS-422 signal output,support TTL square waveform output
- Grating ruler zero: 50mm for one

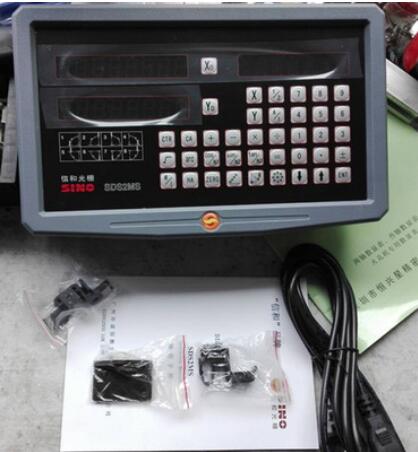

Package List:

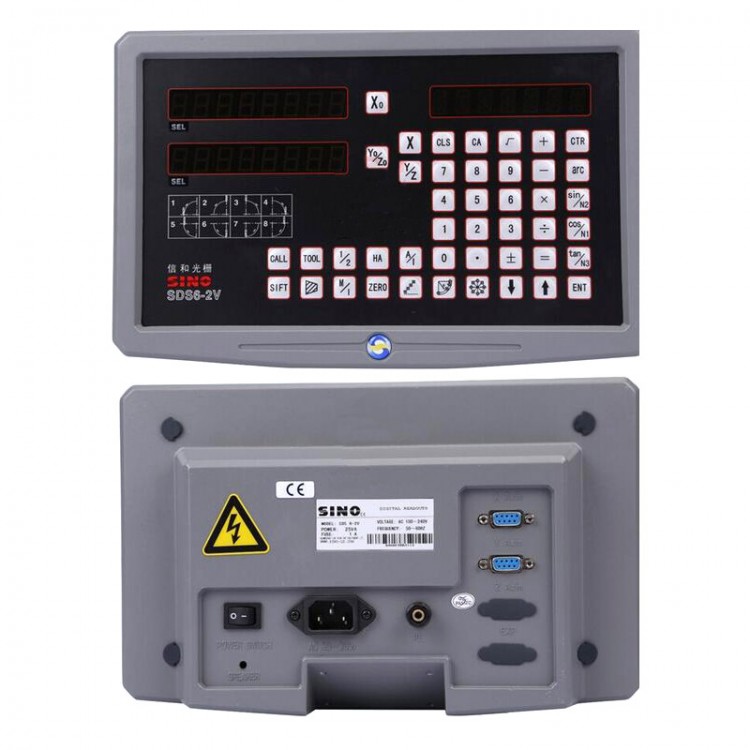

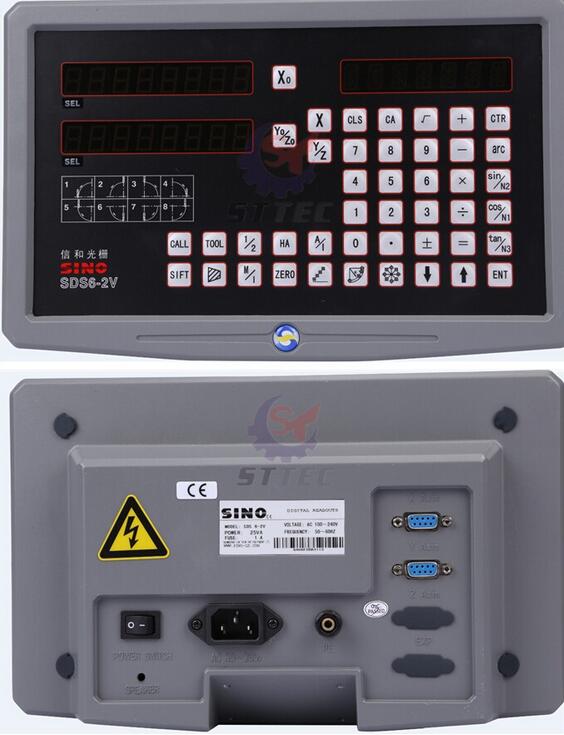

- 1 x SINO 2 Axis Dro Digital Readout

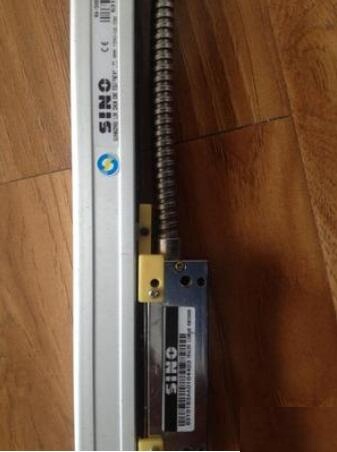

- 2 x KA300-320 Linear Scales Complete DRO Kit
- 1 x Instruction
