| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $333.10 | $326.30 | $316.11 | $302.51 | Contact US |
Description:

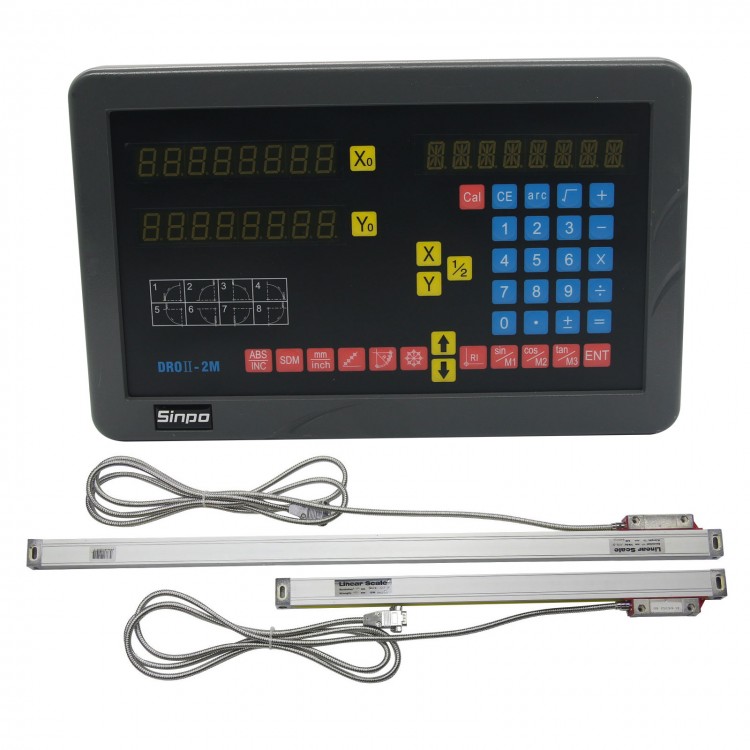

- Item name:Whole set 2 axis linear scales with 2 axis digital readout DRO
- Order included:1 piece 2axis DRO+2pcs 5um linear scales+mounting brackets(Included Fedex/DHL freight)
- Resolution:5um (0.005mm) 0.0002”
- Travel length:120mm-950mm.if it over 950mm,it cost extra.You may contact with us about the extra cost;
- Total length:longer 140mm than travel length
- Application:Mill machine,Later,cutting machine,dring machine,grinder machine ETC.
- Warranty:Five years
- For bridgeport 9X42" mill,
- please choose either 750/350mm scales or 800/350mm scales.
- One inch equals to 25.4mm
We offer Scale length, 120mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm, 650m, 700mm, 750mm, 800mm, 850mm, 900mm and 950mm. One inch equals to 25.4mm. You may choose ANY two scales in the scale lengths above.
After making order, pls kindly tell us the travel length!!
Instuction:
Readout Counter/Console:
Advanced electronic technology and trigonometric function; Multiple memories and zero reference functions; Rugged die cast aluminum case. Input voltage 80-260V, 50HZ-60HZ;
Basic Functions: Zero Reset; Preset; Inch/mm Conversation; ABS/INC Coordinate Conversation/200 Groups Coordinate Display; Non-Volatile Memory (data retained in event of power loss); “1/2” Function key; Linear Error Compensation; Sleep Switch; 200 Points Auxiliary Zero; Automatic Recognition and Storage of Scale Zero Reference Point
Special function of milling DRO: Smooth ‘R’ Function; Simple ‘R’ Function; Bore in Oblique Line; Bore PCD Circle; Simple Calculator; Corner Chamfer Calculation; Inside Outside Profile Function.
we are second generation of SINPO readouts. It has the mark of “DRO II” on the panel and it should have the mark of “CHFOIC” at the back of the readout and on the packaging box. If you visit alibaba or visit ebay stores of some other sellers, you will find DRO readout counters look very similar to our SINPO model. Are you buying the authentic one? Believe us!!!
Glass scales:
TTL output, 5um/0.0002” resolution, anti-dust, anti-coolant, double-sealing design at IP53 insulation/protection level;
Various international quality accreditations including CE certification, ISO9001 certification, JT25/JT26 certification, JT20 certification, JX13 certification.
Are our scales well-sealed and protected against dust and coolant? We believe that claiming “double sealing” by ourselves is not enough at all. We have the IP53 insulation/protection certificate to prove! Are other sellers providing you the internationally recognized certificate?
IMPORTANT: We guarantee that we supply authentic SINPO scales to you. The model number of SINPO scales should start with “JCX”, and the manufacturer is “CHFOIC”. Please look carefully at our photos and check if you have gotten the real SINPO products.
Linear Glass Scales Features
1.High Precision linear scale
2.Resolution : 5um (0.005mm) 0.0002”
3.Signal : TTL square /wave EIA-442
4.Grating pitch: 0.02mm (50LP/min)
5.Accuracy: ±0.005 mm or 0.0002" (at 20 deg C)
6.Reference marks at interval of 50mm
7.Response Speed: 60m/min or 40ins/sec
8.Cable length:2.5 Meter (can lengthen)
Need long scales or special scales? Contact us! We will find a positive answer for you! We supply glass scales up to 2200mm travel and magnetic scales up to 10 meters by door to door air shipping.
Packing included:
This is a complete kit. You just need to hook the readout system to your machine.It includes one 2 Axis DRO,two scales (each with 3m cable, longer cables are available), protective covers, brackets,Some other installation hardware etc, an english manual and all the accessories for installation.
