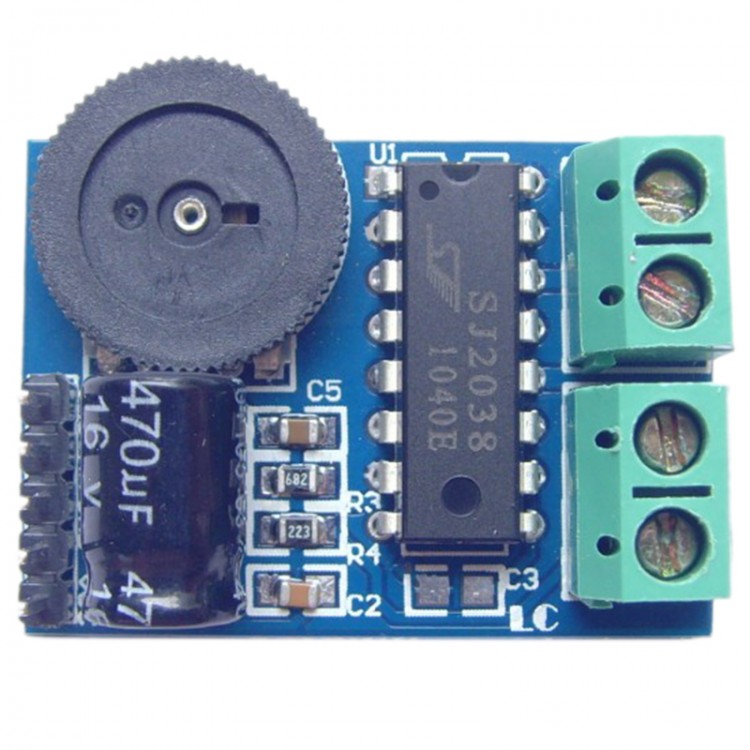

SJ2038 Power Amplifier Module Audio Amplifier Module
Description:
1. Onboard SJ2038 double audio power chip BTL, when the supply voltage is 6V, and THD is less than 10%, can provide 4ohm load with3.5 W output power or can offer 8ohm load with output power 2.2 W.
2. The main chip pin has led out to controlled easily by external devices. Onboard 2 circuit that is as far as 5.08mm from 2P terminals. Respectively the left and right channel output line.
3. Onboard dial potentiometer, can adjust the output volume.
4. Operating voltage: 2-6V.
5. Board size: 36 mm x26 mm
Package included:
- 1 x SJ2038 Audio Amplifier Module
