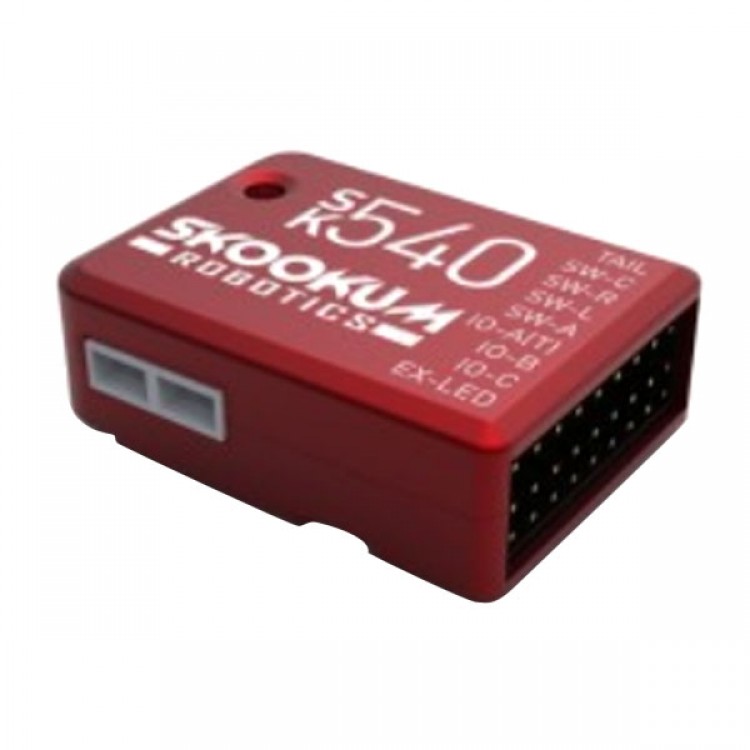

Skookum SK 540 Flybarless System 3-Axis Gryo Helicopter

Skookum SK 540 Flybarless System 3-Axis Gryo Helicopter
Descriptions:
- The SK 540 was developed in response to SK 720 pilots who loved the unit’s flybarless control, but didn’t feel the need for the self levelling function or GPS capability. Therefore the SK 720 was robbed its accelerometers and got two all-new 3-axis MEMS gyros and a new 32-bit processor, packaged into an anodised and laser etched aluminium case. The SK 540 also loses the need for the SK-SB1 SBus adapter – SBus receivers can be directly connected to any open port on the SK 540′s servo bus. Other gizmos included with the new FBL system are a simple setup system, the possibility to load SK 720 settings directly onto the 540 as well as the integrated governor and quadcopter compatibility
Specfications:
- Dimensions: 29x38x13mm
- Weight: 18g
- Dual 3-axis MEMs gyros
- 32-bit processor
- Anodised and laser etched aluminium case
- Compatible with DMSS, DSMX, DSM2, DMSS,  Futaba SBus (without SBus adapter), PPM and traditional receivers
- Easy to use Setup Wizards and compatibility with SK 720 setup files
- Supports use as a 8-channel receiver core when used with Spektrum Satellites, Futaba SBus, or PPM receivers
- Works with digital or analog swash servos
- Suitable for 120, 135/140, and 90 degree eCCPM, as well as mCCPM swashplates
- Works with 2,3,4, or 5 blades, with phase trim adjustable to +-90°
- Swash Ring anti-binding algorithm
- Internal swash mixing, for accurate control
- Supports Spektrum radios with either 1024 or 2048 servo steps, and 22ms or 11ms frame rates
- Quadcopter flight control (beta)

What’s new with the SK 540?
The SK 540 was developed in response to SK 720 pilots who loved the unit’s flybarless control, but didn’t feel the need for the self levelling function or GPS capability.  As a result, we took the accelerometers out of the SK 720, included two all-new 3-axis MEMS gyros and a new 32-bit processor, then packaged it in a brand new anodized and laser etched aluminum case. The SK 540 also loses the need for the SK-SB1 SBus adapter – SBus receivers can be directly connected to a port on the SK 540′s servo bus.

Fast Performance
The SK 540 inherits the high performance flight control from its big brother, the SK 720.  Like the 720, the SK 540 integrates the yaw and cyclic gyros, giving rock-solid piro maneuvers and tail control that benefits from knowing what the collective stick is doing.  For pilots looking for lightning fast piros, the SK540 is capable of 3 full rotations in one second!

Easy Setup
The Setup Wizards from the SK 720 have carried over to the SK 540 as well.  These wizards will guide you through simple steps, having your heli ready to fly in no time.  Have a favourite SK 720 setup?  The SK 540 can load it directly onto the unit!  Video walkthroughs of Setup Wizards are also available on our YouTube channel, making setup even easier.

Features without Expensive Price
Along with the flybarless control from the SK 720,  the 540 keeps a number of functions that made the SK 720 a market leader for features in a single unit:

Integrated Governor
Your heli’s setup is simplified with the SK 540′s integrated governor.  Simply plug your RPM sensor into the IO-C port, enter your gear ratio into the SK 540 software, and set your RPM values.

Quadcopter Compatibility
Quadcopter pilots get a compact and easy to use flight control solution with the SK 540 – no soldering, no open circuit boards.  Just connect the ESCs, tell the SK 540 which way it’s pointed and fly!
