Key Features:
- 5 inches high resolution colorful LCD display,image can be turned according to position
- Average splice time: 8 seconds
- Average tube-heat time: 25 seconds
- Automatic heat mode
- Lithium battery: Rechargable and up to 200 times of continuous splice and heat after fully charged
- X or Y axis Separately views with 360 times magnification, or Simultaneously 220 times
- Cutting-edge technology for image processing
- New technology of fiber core alignment,enhanced accuracy,PAS Technology
- New developed technology providing strong wind and dust resistance
- Automatic self-inspection: Display inspection, Forward inspection
- Cleave length: 9~16mm (0.25mm),10~16mm (0.9mm)
- Splicing mode: Auto & Manual & Full-Auto
- Storing 6,000 groups of latest splice results
- New technology of fiber core alignment, enhanced accuracy
- New 3-in-1 cutting fixture for rubber-insulated wire,pigtail & bare fiber (Patented technology)
- New Multipurpose 1+N fixture (Patented technology)
- 1+N: one 3-in-1 fixture (for rubber-insulated wire,fiber optic pigtail,bare fiber) & optional fixtures (for SC/LC/FC connector).
Specification:
- Applicable Fibers: SM,MM,NZ-DS,EDF,Pigtail,Cable (rubber-insulated wire),SC/LC/FC connector (optional function)
- Average Splice Loss: 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF)
- Return Loss: ≥60dB
- Tension Test: 2.0N(200gf)(Standard)
- Typical splicing time: 10 seconds
- Typical heating time: 30 seconds
- Splicing Program: 50 groups
- Protection Sleeve Length: 20mm,40mm,60mm
- Operating Language: Chinese,English,French,Portuguese,Spanish
- Operating Conditions: -10~+50°C(operation temperature),0~95% RH(humidity),0~5000m(altitude)
- Power Supply: AC adaptor: 100~240V input voltage,50/60Hz;12V,5A output voltage(DC)
- Inner lithium battery: 12V,5.2AH
- Monitor: 5 inches high resolution colorful LCD display
- Fiber Image Magnification: X or Y axis Separately views 360 times magnification,or Simultaneously 220 times
- Storage of Splice Result: 6000 groups of latest splice results
- Splicing Model: Auto & Manual & Full Auto
- Optical Fiber Fixture: 3-in-1 cutting fixture;Multipurpose 1+N fixture (T-208HF,for SC/LC/FC connector)
- Dimensions: 130(W)x135(D)x130(H)mm;Package size: 53x32x30cm
- Weight: 1.74kg+0.38kg (battery weight)=2.12kg;Package G.W.: 6.03 kg

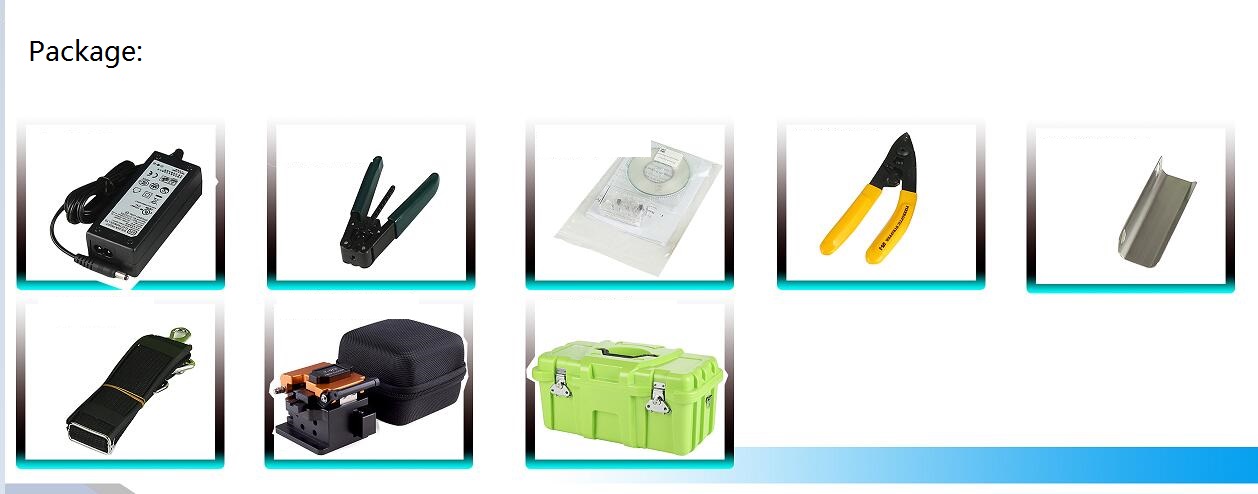

Package List:

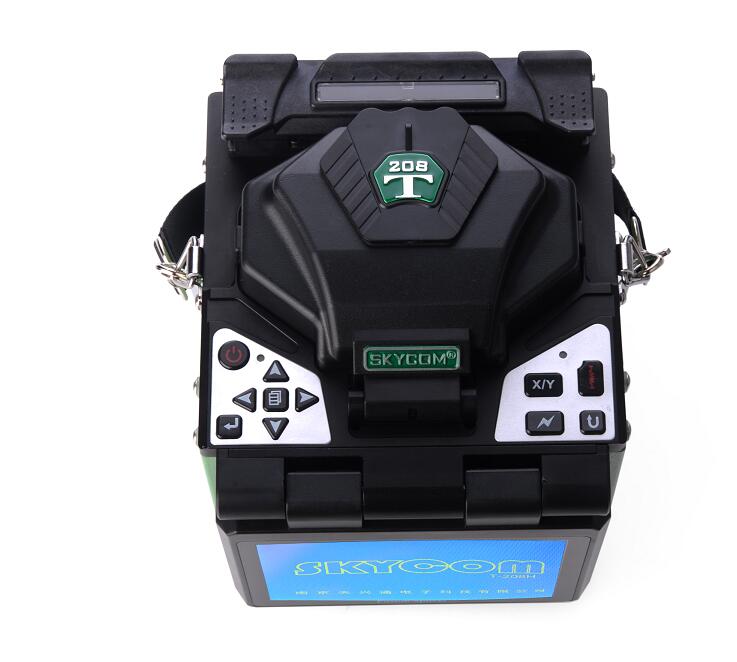

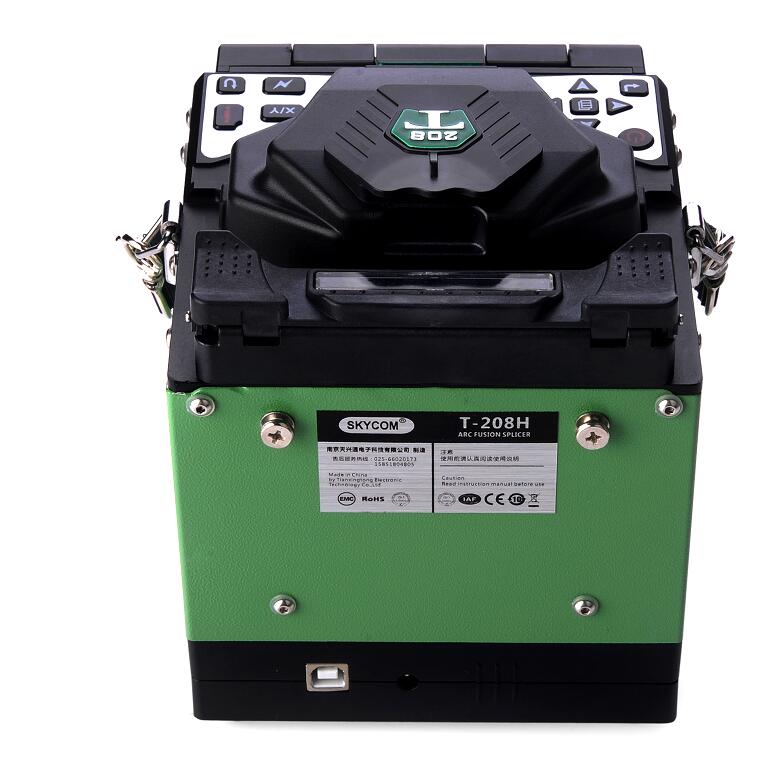

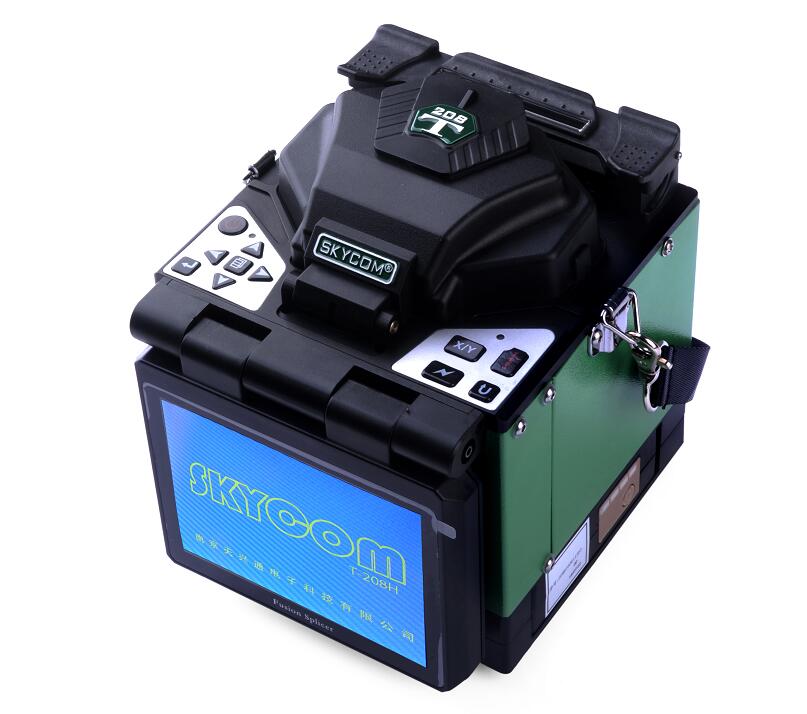

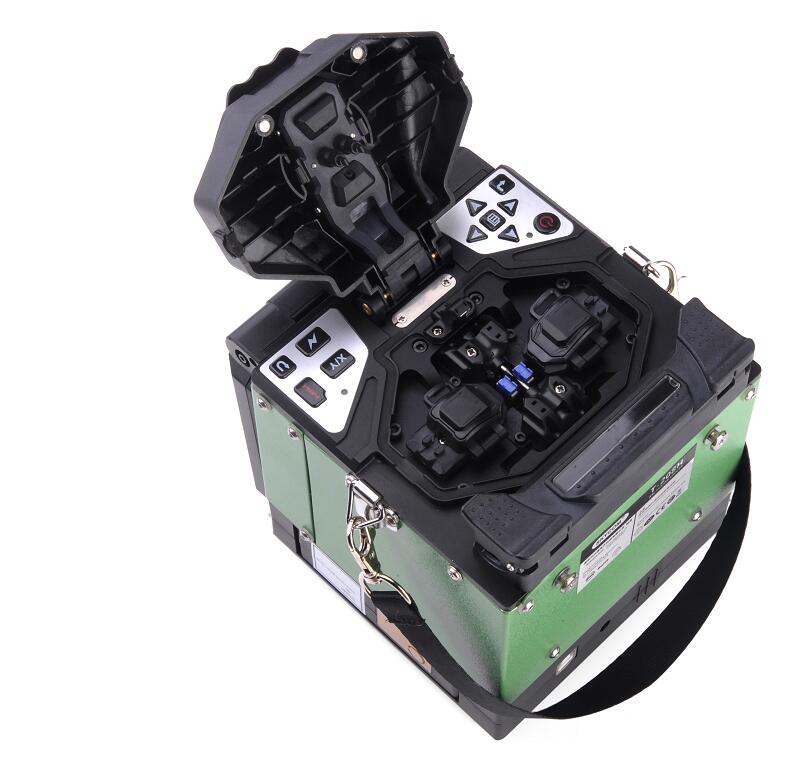

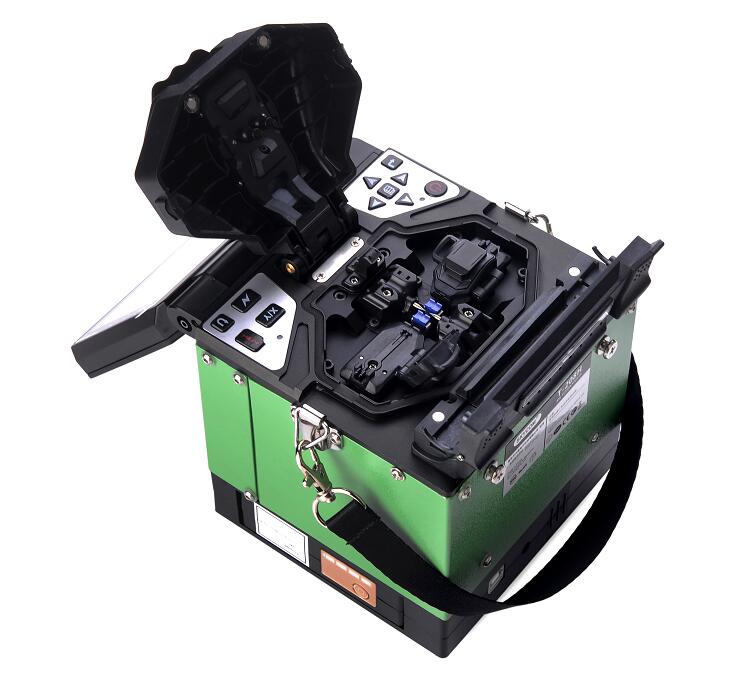

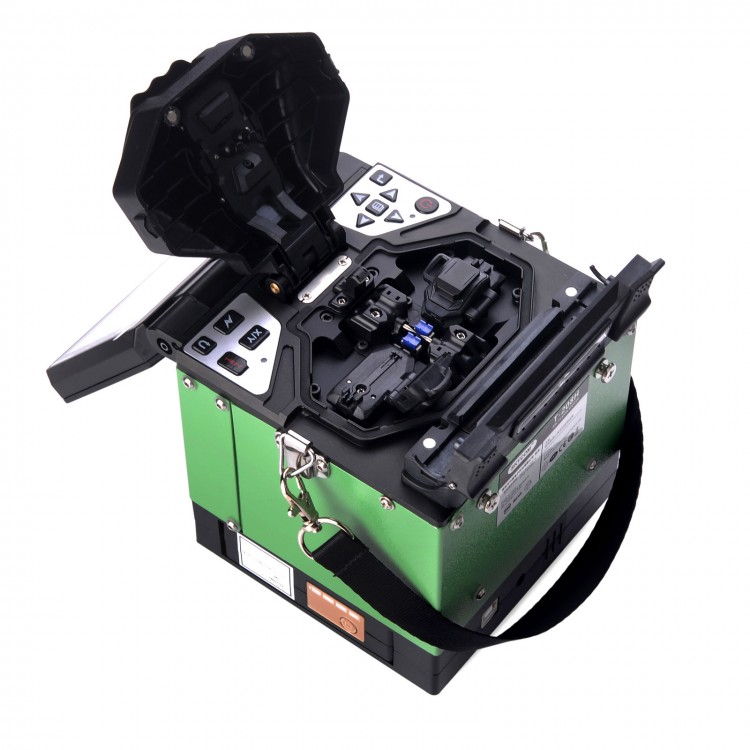

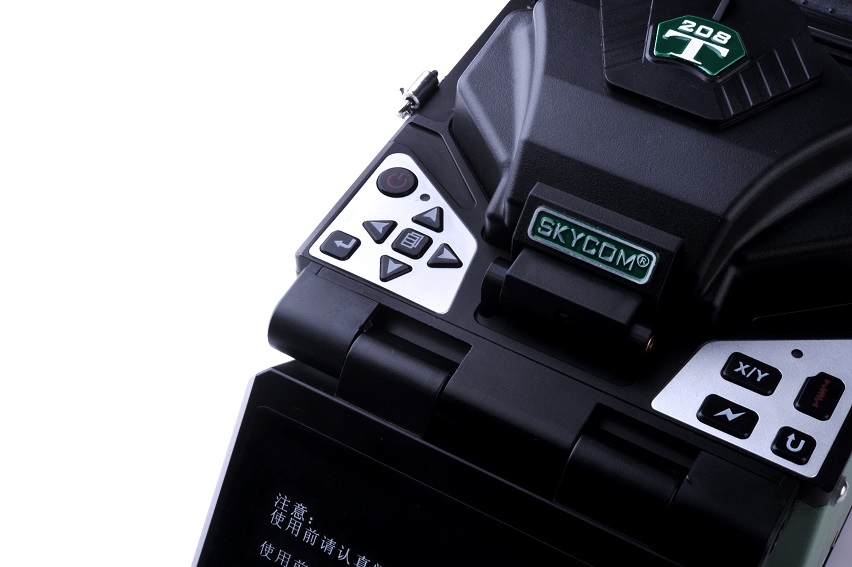

- 1 x Machine T-208H
- 1 x Fiber Cleaver
- 1 x Fiber Stripper
- 1 x AC Adaptor (Charger)
- 1 x Spare Electrodes
- 1 x Cooling Tray
- 1 x Instruction CD
- 1 x Quick Reference Guide
- 1 x Rubber-insulated wire stripping pliers
- 1 x Rubber-insulated wire 3-in-1 cutting fixture
- 1 x Carrying Case with Carrying Strap
