SkyPRO II Standard Version USB Programmer Offline Programmer for 24 25 93 SPI FLASH AVR STM32 STM8

SkyPRO II Standard Version USB Programmer Offline Programmer for 24 25 93 SPI FLASH AVR STM32 STM8

Features:
- Small and portable
- Automatic identification of all supported chips
- Built-in resettable fuse provides continuous protection for the device
- USB 2.0 interface, with speed up to 12Mbps
- Support HCS series rolling code chip programming (HOPPING CODE version)
- Support 24 EEPROM, 25 EEPROM, 93 EEPROM, SPI FLASH, DATA FLASH and other series of memory chips and AVR microcontrollers
- Support mass production mode (mass production version)
- Supports chip duplication (24 EEPROM, 25 EEPROM, 93 EEPROM)
- It supports automatic detection and upgrade of software and firmware, and supports continuous addition of chip models
- Its software supports multiple languages, and users can customize the interface language according to their needs
- Friendly buffer editing window
- Support for Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8 and Windows 10
- Connect to a computer and work as a normal programmer
- Offline burner (can be separated from the computer)
- The upper and lower positions are common, and chips can be placed at will, and two chips can be programmed at the same time
- Support STM32 microcontroller
- Chip copy. All memory chips can be copied (24, 25, 93, spiflash and dataflash)
- Built-in card reader (display removable disk on my computer; easy to copy and organize files)
- Built-in virtual serial port (a general high-speed serial port is virtualized on the computer)
- Support multiple languages (Global languages are available. Just open the language file in Notepad for translation. English, Simplified Chinese, Traditional Chinese are provided by default)
- eBook
- Built-in lithium battery; compact and portable to carry
- Ultra-high-precision real-time clock (using high-precision 32.768KHz table vibration)
- Support TF card up to 32GB
- Chip identification (supported chips can be identified)
- Custom splash screen/animation
- Fully custom operation process (ID verification, erasing, blank checking, writing, verification and encryption)
- Support automatic button-free burning and burning machine
- Quickly select files to be burned (you can also read data from chips and save it)
- Support serial number incremental programming
- Save all settings to the project, which is convenient for quick switching of multiple projects (one time setting, lifetime enjoyment)
- Support direct copying of all memory chips (automatic identification of model and capacity)
- Quickly view all directories and files on your memory card
- Read TXT files and play videos
- Customize screen brightness, screen-off and standby time, and how the buzzer works
- Real-time view of anti-counterfeiting serial number, working voltage and main control chip temperature
- Adjustable buzzer (silent, programming, key)
- Adjustable backlight, timed screen off, shutdown
- Online programming (connect to computer)
- More efficient offline programming (efficiency increased by 60%)
- Frosted and exquisite shell
- Serial number burning
- Permanent software and automatic firmware upgrading
- Automatically update the chip database
- Burning statistics (success and failure)
- Real-time display of operation process and progress

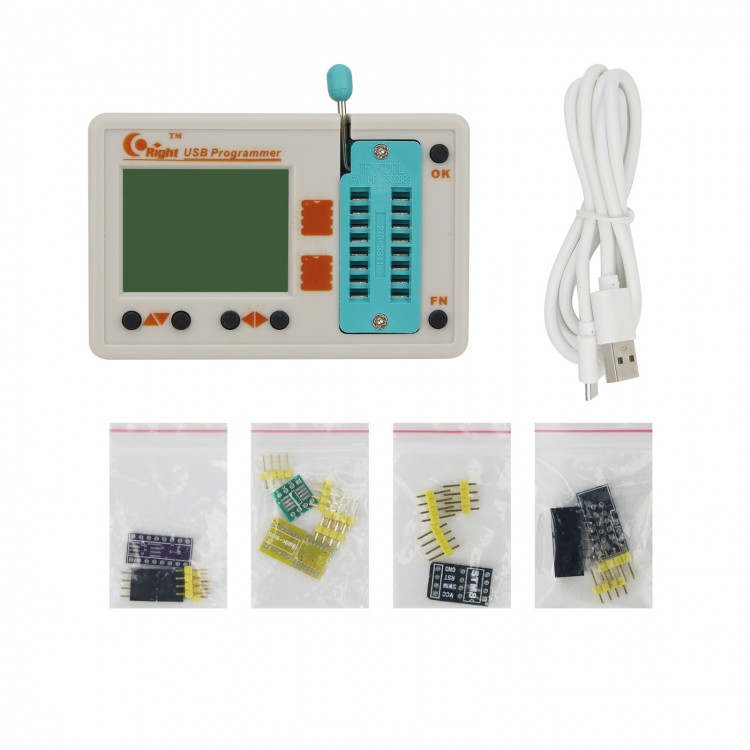

Package Included:
- 1 x Programmer Main Unit
- 1 x USB Cable
- 1 x Set of SOP16/SOP8 To DIP8
- 1 x Set of SOP8 To DIP8 (Can be Used as STM32 Adapter Board)
- 1 x Set of DATA FLASH Adapter Board
- 1 x Set of AVR-ISP10 Adapter Board
- 1 x STM8 Adapter Board

Supported Chips:
**********************************HOPPING CODE********************************
                                                   *Rolling Code Edition*
- For MICROCHIP: HCS101; HCS200; HCS201; HCS300; HCS301; HCS320; HCS360; HCS361;

***********************************24 EEPROM**********************************
- For ATMEL: AT24C01; AT24C01A; AT24C01B; AT24C02; AT24C02A; AT24C02B; AT34C02D; AT24C04; AT24C04A; AT24C04B; AT34C04; AT24C08; AT24C08A; AT24C08B; AT24RF08C; AT24C16; AT24C16A; AT24C16B; AT24C32; AT24C32A; AT24C32B; AT24C64; AT24C64A; AT24C64B; AT24C128; AT24C128A; AT24C128B; AT24C256; AT24C256A; AT24C256B; AT24C512; AT24C512A; AT24C512B; AT24C1024; AT24C1024A; AT24C1024B;
- For CATALYST: CAT24C01; CAT24C02; CAT24C04; CAT24C08; CAT24C16; CAT24C32; CAT24C64; CAT24C128; CAT24C256; CAT24C512; CAT24C1024;
- For CORIGHT: 24C01; 24C02; 24C04; 24C08; 24C16; 24C32; 24C64; 24C128; 24C256; 24C512; 24C1024;
- For FAIRCHILD: FM24C01; FM24C02; FM24C03; FM24C04; FM24C05; FM24C08; FM24C09; FM24C16; FM24C17; FM24C32; FM24C64; FM24C128; FM24C256; FM24C512; FM24C1024;
- For HOLTEK: HT24C01; HT24LC01; HT24C02; HT24LC02; HT24C04; HT24LC04; HT24C08; HT24LC08; HT24C16; HT24LC16; HT24C32; HT24LC32; HT24C64; HT24LC64; HT24C128; HT24LC128; HT24C256; HT24LC256; HT24C512; HT24C1024;
- For ISSI: IS24C01; IS24C02; IS24C04; IS24C08; IS24C16; IS24C32; IS24C64; IS24C128; IS24C256; IS24C512; IS24C1024;
- For MICROCHIP: 24AA00; 24FC00; 24LC00; 24AA01; 24FC01; 24LC01; 24AA02; 24FC02; 24LC02; 24AA04; 24FC04; 24LC04; 24AA08; 24FC08; 24LC08; 24AA16; 24FC16; 24LC16; 24AA32; 24FC32; 24LC32; 24AA64; 24FC64; 24LC64; 24AA128; 24FC128; 24LC128; 24AA256; 24FC256; 24LC256; 24AA512; 24FC512; 24LC512; 24AA1026; 24FC1026; 24LC1026;
- For NSC: 24C02; 24C02L; 24C64;
- For NXP: PCA24S08;
- For RAMTRON: FM24C04A; FM24CL04; FM24C16A; FM24CL16; FM24C64; FM24CL64; FM24C256; FM24CL256; FM24C512;
- For ROHM: BR24C01; BR24L01; BR24C02; BR24L02; BR24C04; BR24C04; BR24C08; BR24L08; BUL08; BR24C16; BR24L16; BR24C32; BR24L32; BR24C64; BR24L64;
- For SANYO: LE26CAP08;
- For ST: M24C01; ST24C01; M24C02; ST24C02; M24C04; ST24C04; M24C08; ST24C08; M24C16; ST24C16; M24C32; ST24C32; M24C64; ST24C64; M24128; M24256; M24512; M24M01; M24M02;
- For XICOR: X24C01; X24C02; X24C04; X24C08; X24C16;

***********************************25 EEPROM**********************************
- For ATMEL: AT25010; AT25020; AT25040; AT25080; AT25160; AT25320; AT25640; AT25128; AT25256; AT25512;
- For CATALYST: CAT25C01; CAT25C01P; CAT25C01S; CAT25C01U; CAT25C02P; CAT25C02S; CAT25C02U; CAT25C03P; CAT25C03S; CAT25C03U; CAT25C04P; CAT25C04S; CAT25C04U; CAT25C05P; CAT25C05S; CAT25C05U; CAT25C08P; CAT25C08S; CAT25C08U; CAT25C09P; CAT25C09S; CAT25C09U; CAT25C16P; CAT25C16S; CAT25C16U; CAT25C17P; CAT25C17S; CAT25C17U; CAT25C32P; CAT25C32S; CAT25C33P; CAT25C33S; CAT25C64P; CAT25C64S; CAT25C65P; CAT25C65S; CAT25C128P; CAT25C128S; CAT25C256P; CAT25C256S;
- For CORIGHT: 25C01; 25C02; 25C040; 25C080; 25C160; 25C320; 25C640; 25C128; 25C256;
- For MICROCHIP: 25AA040; 25C040; 25LC040; 25AA080; 25C080; 25LC080; 25AA160; 25C160; 25LC160; 25AA320; 25C320; 25LC320; 25AA640; 25C640; 25LC640; 25AA128; 25LC128; 25AA256; 25LC256;
- For RAMTRON: FM25L04; FM25C160; FM25L16; FM25640; FM25CL64; FM25V01; FM25L256; FM25V02; FM25V05; FM25V10; FM25V20;
- For ST: M95010; ST25C01; ST25W01; M95020; ST25C02; ST25W02; M95040; ST25C04; ST25W04; M95080; ST25C08; ST25W08; M95160; ST25C16; ST25W16; M95320; M95640; M95128; M95256; M95512; M95M01; M95M02;
- For TI: TI2532; TI2532A; TI2564;
- For XICOR: X25010; X25020; X25040; X25080; X25160; X25320; X25640; X25128; X25256; X25512;

***********************************93 EEPROM**********************************
- For ACE: ACE93C46-16bit; ACE93C46-8bit;
- For AKM: AK93C45A; AK93C55A; AK93C65A; AK93C75A;
- For ATC: ATC93C46-16bit; ATC93C46-8bit; ATC93C56-16bit; ATC93C56-8bit; ATC93C66-16bit; ATC93C66-8bit; ATC93C86-16bit; ATC93C86-8bit;
- For ATMEL: 93C46-16bit; 93C46-8bit; 93C46A; 93C46B; 93C46C-16bit; 93C46C-8bit; 93C56-16bit; 93C56-8bit; 93C56A; 93C56B; 93C56C-16bit; 93C56C-8bit; 93C66-16bit; 93C66-8bit; 93C66A; 93C66B; 93C66C-16bit; 93C66C-8bit; 93C76-16bit; 93C76-8bit; 93C76A; 93C76B; 93C76C-16bit; 93C76C-8bit; 93C86-16bit; 93C86-8bit; 93C86A; 93C86B; 93C86C-16bit; 93C86C-8bit;
- For CATALYST: CAT93C46-16bit; CAT93C46-8bit; CAT93C56-16bit; CAT93C56-8bit; CAT93C57-16bit; CAT93C57-8bit; CAT93C66-16bit; CAT93C66-8bit; CAT93C86-16bit; CAT93C86-8bit;
- For CORIGHT: 93C06; 93C46-16bit; 93C46-8bit; 93C56-16bit; 93C56-8bit; 93C66-16bit; 93C66-8bit; 93C76-16bit; 93C76-8bit; 93C86-16bit; 93C86-8bit;
- For EXEL: XL93C06; XL93C46; XL93CS46; XL93LC46; XL93C56; XL93LC56; XL93C66; XL93LC66;
- For FAIRCHILD: FM93C06; FM93C46; FM93C46A-16bit; FM93C46A-8bit; FM93C56; FM93C56A-16bit; FM93C56A-8bit; FM93C66; FM93C66A-16bit; FM93C66A-8bit; FM93C86A-16bit; FM93C86A-8bit;
- For HOLTEK: HT93LC46-16bit; HT93LC46-8bit; HT93LC56-16bit; HT93LC56-8bit; HT93LC66-16bit; HT93LC66-8bit;
- For ISSI: IS93C46; IS93C46A-16bit; IS93C46A-8bit; IS93C56; IS93C56A-16bit; IS93C56A-8bit; IS93C66; IS93C66A-16bit; IS93C66A-8bit; IS93C76A-16bit; IS93C76A-8bit; IS93C86A-8bit;
- For MICROCHIP: 93C06; 93AA46-16bit; 93AA46-8bit; 93C46-16bit; 93C46-8bit; 93C46A; 93C46B; 93LC46-16bit; 93LC46-8bit; 93LC46A; 93LC46B; 93AA56-16bit; 93AA56-8bit; 93C56-16bit; 93C56-8bit; 93C56A; 93C56B; 93LC56-16bit; 93LC56-8bit; 93LC56A; 93LC56B; 93AA66-16bit; 93AA66-8bit; 93C66-16bit; 93C66-8bit; 93C66A; 93C66B; 93LC66-16bit; 93LC66-8bit; 93LC66A; 93LC66B; 93AA76-16bit; 93AA76-8bit; 93C76-16bit; 93C76-8bit; 93LC76-16bit; 93LC76-8bit; 93AA86-16bit; 93AA86-8bit; 993C86-16bit; 93LC86-16bit; 93LC86-8bit; 993C86-8bit;
- For NSC: 93C06; 93CS06; 93C46; 93CS46; 93C56; 93CS56; 93C66; 93CS66; 93C86; 93CS86;
- For ROHM: BR93LC46; BR93LC46RF; BR93LC56; BR93LC56RF; BR93LC66; BR93LC66RF;
- For SEIKO: S-93C46A; S-93C56A; S-93C66A;
- For ST: ST93C06; M93C46-16bit; M93C46-8bit; M93S46; M93S46R; M93S46W; ST93C46; M93C56-16bit; M93C56-8bit; M93S56; M93S56R; M93S56W; ST93C56; M93C66-16bit; M93C66-8bit; M93S66; M93S66R; M93S66W; ST93C66; M93C76-16bit; M93C76-8bit; M93C86-16bit; M93C86-8bit;

***********************************SPI FLASH************************************
- For  ALTERA: EPCS1; EPCS4; EPCS16; EPCS64; EPCS128;
- For AMIC: A25L05PT; A25L05PU; A25L512; A25L010; A25L10PT; A25L10PU; A25L020; A25L20PT; A25L20PU; A25L040; A25L40P; A25L080; A25L80P; A25L016; A25L16PT; A25L16PU; A25LQ16; A25L032; A25LQ032; A25LQ32A; A25LQ64;
- For ATMEL: AT25F512; AT25F512A; AT25F512B; AT25F1024; AT25F1024A; AT25FS010; AT25DF021; AT25F2048; AT25FS020; AT25DF041A; AT25F4096; AT25FS040; AT25SF041; AT26F004; AT25SF081; AT26DF081A; AT25DF161; AT25SF161; AT26DF161; AT26DF161A; AT25DF321; AT25DF321A; AT26DF321; AT25DF641;
- For BERG: BG25Q40A; BG25Q80A; BG25Q16A; BG25Q32A;
- For CHINGIS: Pm25LD256C; Pm25LD512; Pm25LD512C; Pm25LQ512A; Pm25LD010; Pm25LD010C; Pm25LQ010A; Pm25LD020; Pm25LD020C; Pm25LQ020A; Pm25LD040; Pm25LD040C; Pm25LQ040A; Pm25LQ080; Pm25LQ016; Pm25LQ032C;
- For CORIGHT: 25P05; 25P10; 25P20; 25P40; 25P80; 25P16; 25P32; 25P64; 25P128;
- For EON: EN25B05; EN25B05T; EN25F05; EN25LF05; EN25P05; EN25B10; EN25B10T; EN25D10; EN25F10; EN25LF10; EN25P10; EN25B20; EN25B20T; EN25D20; EN25F20; EN25LF20; EN25P20; EN25B40; EN25B40T; EN25D40; EN25F40; EN25LF40; EN25P40; EN25B80; EN25B80T; EN25D80; EN25F80; EN25P80; EN25Q80A; EN25T80; EN25B16; EN25B16T; EN25D16; EN25F16; EN25P16; EN25Q16; EN25Q16A; EN25QH16; EN25T16; EN25B32; EN25B32T; EN25F32; EN25P32; EN25Q32A; EN25Q32B; EN25QH32A; EN25B64; EN25B64T; EN25F64; EN25P64; EN25Q64; EN25QH64; EN25F128; EN25Q128; EN25QH128A; EN25QH256;
- For ESMT: F25L01PA; F25L02PA; F25L004A; F25L004AT; F25L04PA; F25L04UA; F25L008A; F25L008AT; F25L08PA; F25L08QA; F25L016A; F25L016AT; F25L16PA; F25L16QA; F25L32A; F25L32AT; F25L32PA; F25L32QA; F25L64QA;
- For EXCELSEMI: ES25P10; ES25P20; ES25M40; ES25M40A; ES25P40; ES25M80; ES25M80A; ES25P80; ES25M16; ES25M16A; ES25P16; ES25P32;
- For FM: FM25F005; FM25F01; FM25F02; FM25F04; FM25FQ32;
- For GIGADEVICE: GD25Q512; GD25Q10; GD25Q20B; GD25Q21B; GD25Q40B; GD25Q41B; GD25Q80B; GD25Q16B; GD25Q32B; GD25Q64B; GD25Q64C; GD25Q128C;
- For MICRON: M25P05; M25P10; M25P20; M25P40; M25P80; M25P16; M25P32; N25Q032; N25Q032A; M25P64; N25Q064; N25Q064A; M25P128; N25Q128; N25Q128A; N25Q256; N25Q256A; MT25QL512AB;
- For MXIC: MX25U5121E; MX25L5121E; MX25L512E; MX25R512F; MX25V512E; MX25V512F; MX25U1001E; MX25L1006E; MX25L1021E; MX25L1026E; MX25R1035F; MX25V1006E; MX25V1035F; MX25U2032E; MX25U2033E; MX25L2006E; MX25L2026E; MX25R2035F; MX25V2006E; MX25V2035F; MX25U4032E; MX25U4033E; MX25U4035; MX25V4035; MX25L4006E; MX25L4026E; MX25R4035F; MX25V4006E; MX25V4035F; MX25U8032E; MX25U8033E; MX25U8035; MX25U8035E; MX25V8035; MX25L8006E; MX25L8008E; MX25L8035E; MX25L8036E; MX25L8073E; MX25R8035F; MX25V8006E; MX25V8035F; MX25U1635E; MX25U1635F; MX25L1606E; MX25L1608E; MX25L1633E; MX25L1635E; MX25L1636D; MX25L1636E; MX25L1673E; MX25R1635F; MX25V1635F; MX25U3235E; MX25U3235F; MX25L3206E; MX25L3208E; MX25L3233F; MX25L3235E; MX25L3236D; MX25L3236F; MX25L3239E; MX25L3273E; MX25L3273F; MX25L3275E; MX25R3235F; MX25U6435F; MX25U6473F; MX25L6406E; MX25L6408E; MX25L6433F; MX25L6435E; MX25L6436E; MX25L6436F; MX25L6439E; MX25L6445E; MX25L6465E; MX25L6473E; MX25L6473F; MX25L6475E; MX25R6435F; MX25U12835F; MX25U12873F; MX25L12835F; MX25L12836E; MX25L12839F; MX25L12845E; MX25L12845G; MX25L12850F; MX25L12865E; MX25L12865F; MX25L12873F; MX25L12875F; MX25U25635F; MX25L25635E; MX25L25635F; MX25L25639F; MX25L25645G; MX25L25673G; MX25L25735E; MX25L25735F; MX25L25835E; MX25U51245G; MX25UM51245G; MX66U51235F; MX25L51237G; MX25L51245G; MX66L51235F; MX66L1G45G;
- For NEXFLASH: NX25P10; NX25P20; NX25P40; NX25P80; NX25P16; NX25P32;
- For PMC: PM25LV512; PM25LV010; PM25LV020; PM25LV040; PM25LV080B; PM25LV016B;
- For SAIFUN: SA25F005; SA25F010; SA25F020; SA25F040; SA25F080; SA25F160; SA25F320;
- For SPANSION: S25FL004A; S25FL008A; S25FL016A; S25FL116K; S25FL032A; S25FL132K; S25FL064A; S25FL164K; S25FL128K; S25FL128S; S25FL256S; S25FL512S;
- For SST: SST25LF512A; SST25VF512; SST25VF512A; SST25LF010A; SST25VF010; SST25VF010A; SST25LF020A; SST25VF020; SST25VF020A; SST25VF020B; SST25LF040A; SST25VF040; SST25VF040A; SST25VF040B; SST25LF080A; SST25VF080; SST25VF080A; SST25VF080B; SST25VF016B; SST25VF032B; SST25VF064C;
- For ST: M25P05; M25P05A; M25P10; M25P10A; M25PE10; M25P20; M25P20A; M25PE20; M25P40; M25P40A; M25PE40; M25P80; M25P80A; M25PE80; M25PX80; M25P16; M25PE16; M25PX16; M25P32; M25PX32; M25P64; M25PX64; M25P128;
- For WINBOND: W25Q10EW; W25P10; W25X10; W25X10A; W25X10AL; W25X10L; W25Q20BW; W25Q20EW; W25P20; W25Q20; W25X20; W25X20A; W25X20AL; W25X20L; W25Q40BW; W25Q40EW; W25P40; W25Q40; W25X40; W25X40A; W25X40AL; W25X40L; W25Q80BW; W25Q80EW; W25P80; W25Q80; W25X80; W25X80A; W25X80AL; W25X80L; W25Q16DW; W25Q16FW; W25P16; W25Q16; W25X16; W25Q32FW; W25P32; W25Q32; W25X32; W25Q64FW; W25Q64; W25X64; W25Q128FW; W25Q128; W25Q256; W25M512JV;

***********************************DATA FLASH**********************************
- For ATMEL: AT45DB011D-bin; AT45DB011B; AT45DB011D; AT45DB021D-bin; AT45DB021B; AT45DB021D; AT45DB041D-bin; AT45DB041B; AT45DB041D; AT45DB081D-bin; AT45DB081B; AT45DB081D; AT45DB161D-bin; AT45DB161B; AT45DB161D; AT45DB321D-bin; AT45DB321B; AT45DB321D; AT45DB642D-bin; AT45DB642B; AT45DB642D;

*************************************STM32************************************
                                                        *SkyPRO II*
- For STM32F0xx: STM32F030F4; STM32F031C4; STM32F031F4; STM32F031G4; STM32F031K4; STM32F042C4; STM32F042F4; STM32F042G4; STM32F042K4; STM32F051C4; STM32F051K4; STM32F051R4; STM32F030C6; STM32F030K6; STM32F031C6; STM32F031E6; STM32F031F6; STM32F031G6; STM32F031K6; STM32F038C6; STM32F038E6; STM32F038F6; STM32F038G6; STM32F038K6; STM32F042C6; STM32F042F6; STM32F042G6; STM32F042K6; STM32F042T6; STM32F048C6; STM32F048G6; STM32F048T6; STM32F051C6; STM32F051K6; STM32F051R6; STM32F070C6; STM32F070F6; STM32F030C8; STM32F030R8; STM32F051C8; STM32F051K8; STM32F051R8; STM32F051T8; STM32F058C8; STM32F058R8; STM32F058T8; STM32F071V8; STM32F072C8; STM32F072R8; STM32F072V8; STM32F070CB; STM32F070RB; STM32F071CB; STM32F071RB; STM32F071VB; STM32F072CB; STM32F072RB; STM32F072VB; STM32F078CB; STM32F078RB;  STM32F078VB; STM32F091CB; STM32F091RB; STM32F091VB; STM32F030CC; STM32F030RC; STM32F091CC; STM32F091RC; STM32F091VC; STM32F098CC; STM32F098RC; STM32F098VC;
- For STM32F10x: STM32F100C4; STM32F100R4; STM32F101C4; STM32F101R4; STM32F101T4; STM32F102C4; STM32F102R4; STM32F103C4; STM32F103R4; STM32F103T4; STM32F100C6; STM32F100R6; STM32F101C6; STM32F101R6; STM32F101T6; STM32F102C6; STM32F102R6; STM32F103C6; STM32F103R6; STM32F103T6; STM32F100C8; STM32F100R8; STM32F100V8; STM32F101C8; STM32F101R8; STM32F101T8; STM32F101V8; STM32F102C8; STM32F102R8; STM32F103C8; STM32F103R8; STM32F103T8; STM32F103V8; STM32F105R8; STM32F105V8; STM32F100CB; STM32F100RB; STM32F100VB; STM32F101CB; STM32F101RB; STM32F101TB; STM32F101VB; STM32F102CB; STM32F102RB; STM32F103CB; STM32F103RB; STM32F103TB; STM32F103VB; STM32F105RB; STM32F105VB; STM32F107RB; STM32F107VB; STM32F100RC; STM32F100VC; STM32F100ZC; STM32F101RC; STM32F101VC; STM32F101ZC; STM32F103RC; STM32F103VC; STM32F103ZC; STM32F105RC; STM32F105VC; STM32F107RC; STM32F107VC; STM32F100RD; STM32F100VD; STM32F100ZD; STM32F101RD; STM32F101VD; STM32F101ZD; STM32F103RD; STM32F103VD; STM32F103ZD; STM32F100RE; STM32F100VE; STM32F100ZE; STM32F101RE; STM32F101VE; STM32F101ZE; STM32F103RE; STM32F103VE; STM32F103ZE; STM32F101RF; STM32F101VF; STM32F101ZF; STM32F103RF; STM32F103VF; STM32F103ZF; STM32F101RG; STM32F101VG; STM32F101ZG; STM32F103RG; STM32F103VG; STM32F103ZG;
- For STM32F2xx: STM32F205RB; STM32F205VB; STM32F205RC; STM32F205VC; STM32F205ZC; STM32F207IC; STM32F207VC; STM32F207ZC; STM32F205RE; STM32F205VE; STM32F205ZE; STM32F207IE; STM32F207VE; STM32F207ZE; STM32F215RE; STM32F215VE; STM32F215ZE; STM32F217IE; STM32F217VE; STM32F217ZE; STM32F205RF; STM32F205VF; STM32F205ZF; STM32F207IF; STM32F207VF; STM32F207ZF; STM32F205RG; STM32F205VG; STM32F205ZG; STM32F207IG; STM32F207VG; STM32F207ZG; STM32F215RG; STM32F215VG; STM32F215ZG; STM32F217IG; STM32F217VG; STM32F217ZG;
- For STM32F30x: STM32F334C4; STM32F334K4; STM32F301C6; STM32F301K6; STM32F301R6; STM32F302C6; STM32F302C8; STM32F302K6; STM32F302R6; STM32F303C6; STM32F303K6; STM32F303R6; STM32F334C6; STM32F334K6; STM32F334R6; STM32F301C8; STM32F301K8; STM32F301R8; STM32F302K8; STM32F302R8; STM32F303C8; STM32F303K8; STM32F303R8; STM32F318C8; STM32F318K8; STM32F328C8; STM32F334C8; STM32F334K8; STM32F334R8; STM32F373C8; STM32F373R8; STM32F373V8; STM32F302CB; STM32F302RB; STM32F302VB; STM32F303CB; STM32F303RB; STM32F303VB; STM32F373CB; STM32F373RB; STM32F373VB; STM32F302CC; STM32F302RC; STM32F302VC; STM32F303CC; STM32F303RC; STM32F303VC; STM32F358CC; STM32F358RC; STM32F358VC; STM32F373CC; STM32F373RC; STM32F373VC; STM32F378CC; STM32F378RC; STM32F378VC; STM32F302RD; STM32F302VD; STM32F302ZD; STM32F303RD; STM32F303VD; STM32F303ZD; STM32F302RE; STM32F302VE; STM32F302ZE; STM32F303RE; STM32F303VE; STM32F303ZE; STM32F398VE;
- For STM32F4xx: STM32F401CB; STM32F401RB; STM32F401VB; STM32F401CC; STM32F401RC; STM32F401VC; STM32F411CC; STM32F411RC; STM32F411VC; STM32F446MC; STM32F446RC; STM32F446VC; STM32F446ZC; STM32F401CD; STM32F401RD; STM32F401VD; STM32F401CE; STM32F401RE; STM32F401VE; STM32F4050E; STM32F407IE; STM32F407VE; STM32F407ZE; STM32F411CE; STM32F411RE; STM32F411VE; STM32F417IE; STM32F417VE; STM32F417ZE; STM32F429BE; STM32F429IE; STM32F429NE; STM32F429VE; STM32F429ZE; STM32F446ME; STM32F446RE; STM32F446VE; STM32F446ZE; STM32F469AE; STM32F469BE; STM32F469IE; STM32F469NE; STM32F4050G; STM32F405RG; STM32F405VG; STM32F405ZG; STM32F407IG; STM32F407VG; STM32F407ZG; STM32F4150G; STM32F415RG; STM32F415VG; STM32F415ZG; STM32F417IG; STM32F417VG; STM32F417ZG; STM32F427AG; STM32F427IG; STM32F427VG; STM32F427ZG; STM32F429BG; STM32F429IG; STM32F429NG; STM32F429VG; STM32F429ZG; STM32F437IG; STM32F437VG; STM32F437ZG; STM32F439BG; STM32F439IG; STM32F439NG; STM32F439VG; STM32F439ZG; STM32F469AG; STM32F469BG; STM32F469IG; STM32F469NG; STM32F479AG; STM32F479BG; STM32F479IG; STM32F479NG; STM32F427AI; STM32F427II; STM32F427VI; STM32F427ZI; STM32F429AI; STM32F429BI; STM32F429II; STM32F429NI; STM32F429VI; STM32F429ZI; STM32F437AI; STM32F437II; STM32F437VI; STM32F437ZI; STM32F439AI; STM32F439BI; STM32F439II; STM32F439NI; STM32F439VI; STM32F439ZI; STM32F469AI; STM32F469BI; STM32F469II; STM32F469NI; STM32F479AI; STM32F479BI; STM32F479II; STM32F479NI;
- For STM32L0xx: STM32L031C4; STM32L031E4; STM32L031F4; STM32L031G4; STM32L031K4; STM32L041F4; STM32L031C6; STM32L031E6; STM32L031G6; STM32L031K6; STM32L041C6; STM32L041G6; STM32L041K6; STM32L051C6; STM32L051K6; STM32L051R6; STM32L051T6; STM32L052C6; STM32L052K6; STM32L052R6; STM32L052T6; STM32L053C6; STM32L053R6; STM32L051C8; STM32L051K8; STM32L051R8; STM32L051T8; STM32L052C8; STM32L052K8; STM32L052R8; STM32L052T8; STM32L053C8; STM32L053R8; STM32L062K8; STM32L063C8; STM32L063R8; STM32L071K8; STM32L071V8; STM32L072V8; STM32L073V8; STM32L083V8; STM32L071CB; STM32L071KB; STM32L071RB; STM32L071VB; STM32L072CB; STM32L072KB; STM32L072RB; STM32L072VB; STM32L073RB; STM32L073VB; STM32L081CB; STM32L081RB; STM32L082KB; STM32L083RB; STM32L083VB; STM32L071CZ; STM32L071KZ; STM32L071RZ; STM32L071VZ; STM32L072CZ; STM32L072KZ; STM32L072RZ; STM32L072VZ; STM32L073CZ; STM32L073RZ; STM32L073VZ; STM32L083CZ; STM32L083RZ; STM32L083VZ;
- For STM32L1xx: STM32L100C6-A; STM32L100C6; STM32L151C6-A; STM32L151C6; STM32L151R6-A; STM32L151R6; STM32L152C6-A; STM32L152C6; STM32L152R6-A; STM32L152R6; STM32L100R8-A; STM32L100R8; STM32L151C8-A; STM32L151C8; STM32L151R8-A; STM32L151R8; STM32L151V8-A; STM32L151V8; STM32L152C8-A; STM32L152C8; STM32L152R8-A; STM32L152R8; STM32L152V8-A; STM32L152V8; STM32L100RB-A; STM32L100RB; STM32L151CB-A; STM32L151CB; STM32L151RB-A; STM32L151RB; STM32L151VB-A; STM32L151VB; STM32L152CB-A; STM32L152CB; STM32L152RB-A; STM32L152RB; STM32L152VB-A; STM32L152VB; STM32L100RC; STM32L151CC; STM32L151QC; STM32L151RC-A; STM32L151RC; STM32L151UC; STM32L151VC; STM32L151ZC; STM32L152CC; STM32L152QC; STM32L152RC-A; STM32L152RC; STM32L152UC; STM32L152VC; STM32L152ZC; STM32L162RC-A; STM32L162RC; STM32L162VC-A; STM32L162VC; STM32L151QD; STM32L151RD; STM32L151VD-X; STM32L151VD; STM32L151ZD; STM32L152QD; STM32L152RD; STM32L152VD-X; STM32L152VD; STM32L152ZD; STM32L162QD; STM32L162RD; STM32L162VD-X; STM32L162VD; STM32L162ZD; STM32L151QE; STM32L151RE; STM32L151VE; STM32L151ZE; STM32L152QE; STM32L152RE; STM32L152VE; STM32L152ZE; STM32L162RE; STM32L162VE; STM32L162ZE;

**************************************AVR*************************************
- For ATMEL: ATmega48A; ATmega48PA; ATmega8; ATmega8515; ATmega8535; ATmega88A; ATmega88PA; ATmega16; ATmega162; ATmega163; ATmega165; ATmega168A; ATmega168PA; ATmega169; ATmega169P; ATmega32; ATmega325; ATmega3250; ATmega328; ATmega328P; ATmega329; ATmega3290; ATmega406; ATmega64; ATmega640; ATmega644; ATmega645; ATmega6450; ATmega649; ATmega6490; ATmega128; ATmega1280; ATmega1281; ATmega1284P; ATmega2560; ATmega2561;

*************************************C8051*************************************
- For SILICON_LABS: C8051F340
