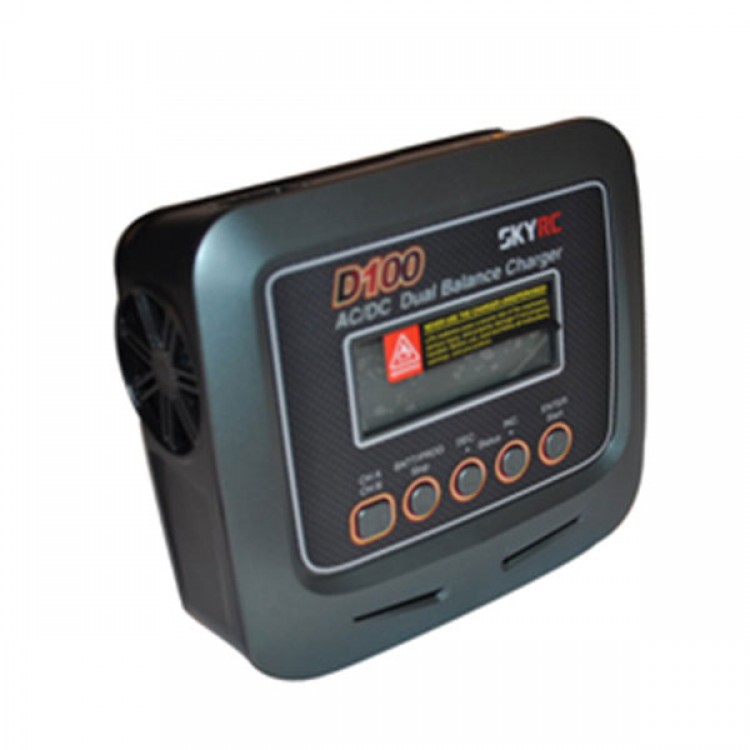

SKYRC D100 AC/DC Dual Balance 10A Charger / 5A Discharger RC Car

SKYRC D100 AC/DC Dual Balance 10A Charger / 5A Discharger RC Car

Description:
- SKYRC D100 is a twin-channel charger with two independent circuits which can charge two different kinds of batteries simultaneously. It also supports power distribution in AC mode to get max charging power to shorten charging time. What's more, users could set the terminal voltage by themselves and connect it to PC for PC control and firmware upgrade. Besides that, users could also use it as Lithium Battery Meter and Battery Internal Resistance Meter. There are Automatic Charging Current Limit, Capacity Limit, Temperature Threshold and Processing Time Limit which makes the charger safe to use.

Feature:
    Lithium Battery Balancer
    SKYRC D100 employs an individual-cell-voltage balancer. It isn't necessary to connect an external balancer for balance charging.
    Maximum Safety
    Automatic Charging Current Limit / Capacity Limit / Temperature Threshold / Processing Time Limit
    Program Data Store/Load
    The charger can store up to 10 different charge /discharge profiles for each channel. You can keep the data pertaining to program setting of the battery of continuous charging or discharging. Users can call out these data at any time without any special program setting.
    Battery Meter
    The user can check battery's total voltage, the highest voltage, the lowest voltage and each cell's voltage by this charger.
    Battery Resistance Meter
    The user can check battery's total internal resistance and each cell's internal resistance.
    PC Control
    The user can monitor pack voltage, cell voltage and other data during the charging, view charge date in realtime graphs, and can also control charging and update firmware from Charge Master.
    Terminal Voltage Control
    The charger allows user to change the end voltage. (for expert user only)

Specification:
    Length: 163mm
    Width: 153mm
    Height: 72mm
    Net Weight: 975g
    Input Voltage: AC100-240V / DC 11-18V
    Charge Circuit Power: DC Input 2 x 100W
    AC Input 100W (Support Power Distribution)
    Discharge Circuit Power: 2 x 10W
    Charger Current Range: 0.1-10A
    Discharge Current Range: 0.1-5A
    Current Drian for Balancing Port: Max 200mA/cell
    Trickle Charging Current: 30mA-300mA & OFF
    LiPo/LiFe/Lilon/LiHV Battery Cell Count: 1-6S
    NiMH/NiCd Battery Cell Count: 1-15S
    Pb Battery Voltage: 2-20V

Charge Master:
The user can monitor pack voltage, cell voltage and other data during the charging, view charge data in realtime graphs, and can also control charging and update firmware from Charge Master.
