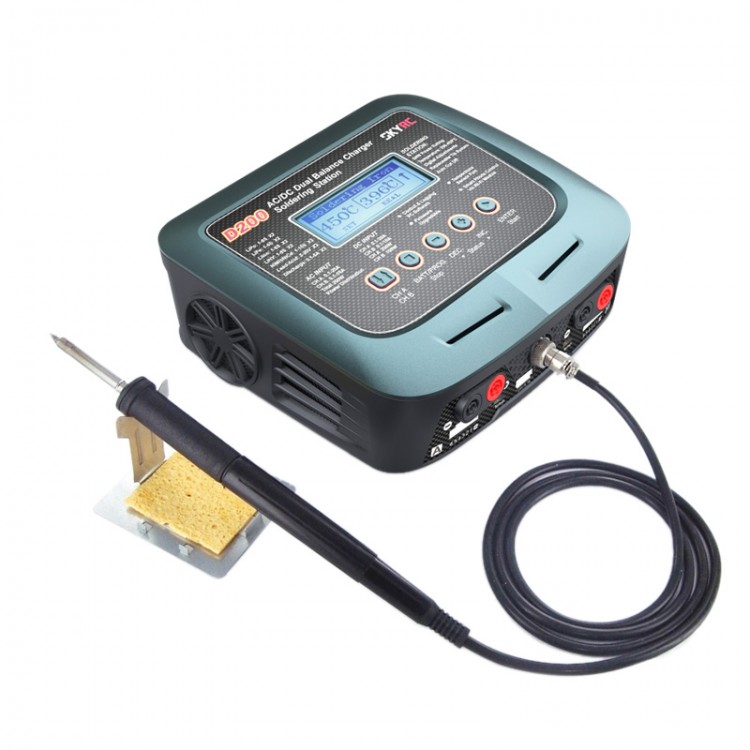

SkyRC D200 AC DC Dual Balance Charger Discharger with Soldering Iron for RC Models

SkyRC D200 AC DC Dual Balance Charger Discharger with Soldering Iron for RC Models

Description:
SKYRC D200 is a dual output charger, which supports power distribution with AC source. It has new functions, like, Terminal Voltage Control (TVC), Battery Meter, Battery Internal Resistance Meter.
It has software protection, like, Current Limit, Capacity Limit, Temperature Threshold and Charging Time Limit.It supports PC control and firmware upgrade.
Additionally,it has a built in soldering iron that can heat up to 450℃ with heavy duty 60W, the temperature is adjustable from 200-450℃.

Features:
- Large-screen liquid crystal display (128 * 64)
- Terminal voltage control
- Re-peak Mode for NiMH / NiCd batteries
- Battery Meter
- Battery internal resistance meter
- Soldering Iron: 60W MAX, 200-450 Celsius
- PC communication: USB port for PC control and firmware upgrades
- Smartphone control and monitoring via Wi-Fi module (SK-600075 optional parts)
- Support two channels simultaneously charge two different types of batteries

Specifications:
- Input voltage: AC100-240V / DC11-20V
- Charging circuit output power: DC output 200W + 100W (± 10%) / AC output 200W (± 10%)
- Discharge circuit output power: 2 × 10W
- Charge current range: 0.1-1.0A, 1.1A-20A
- Discharge current range: 0.1-5A
- Currently Drian balance port: maximum 300 mA / Battery
- Trickle charging current: 50 mA -300 mA & OFF
- Lithium polymer / lithium iron / lithium-ion battery Number: 1-6S
- NiMH / NiCd Number: 1-15S
- Lead-acid battery voltage: 2-24V
- Size: 180x165x72mm
- N.W: 1260G

Package includes:
- 2x SKYRC D200 Dual Balance 200W 20A Charger
