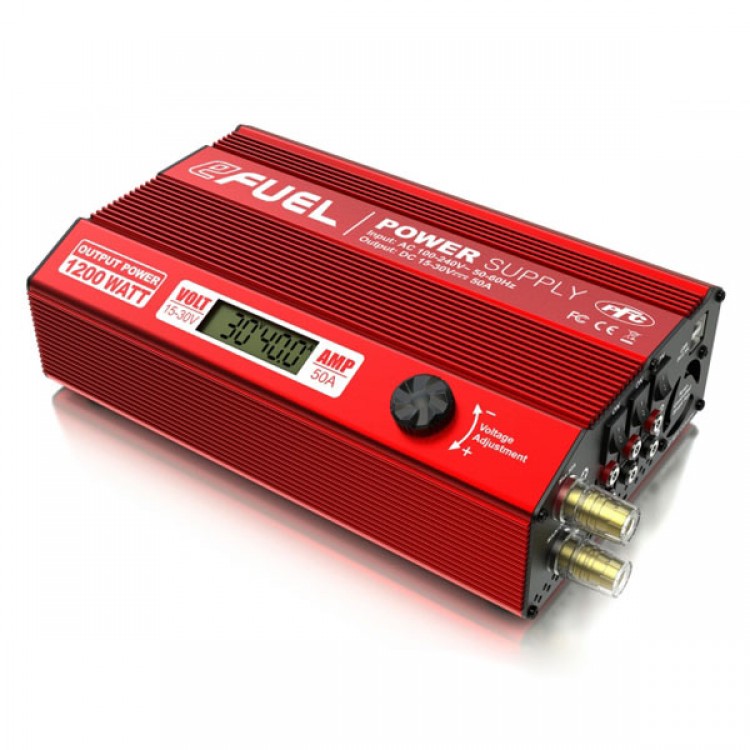

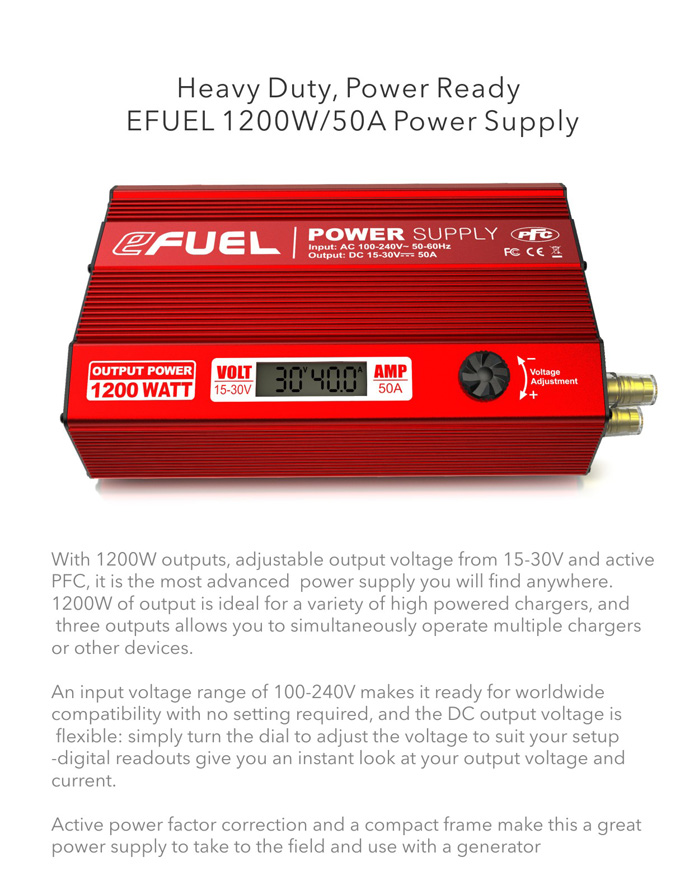

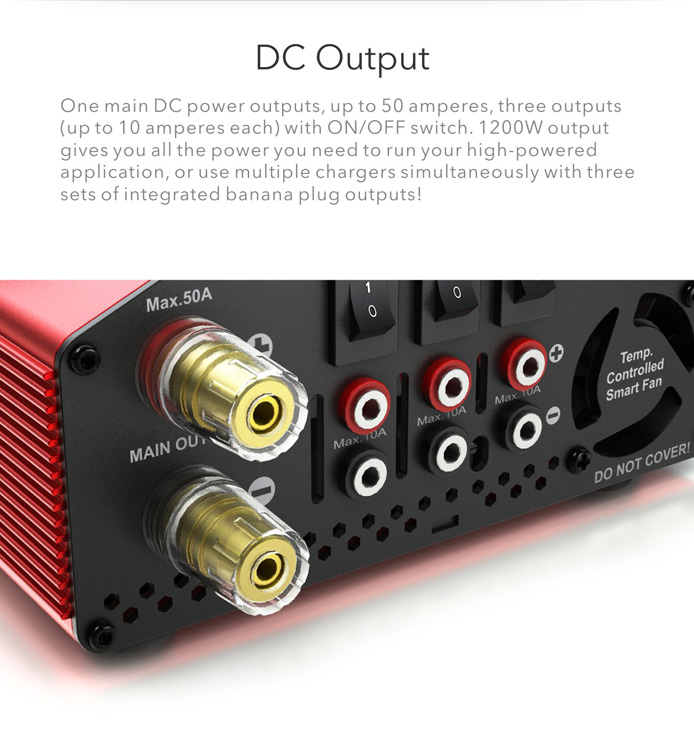

SKyrc eFuel 1200W 50A Power Supply 100-240V AC DC Switching Power Supply
Specifications:

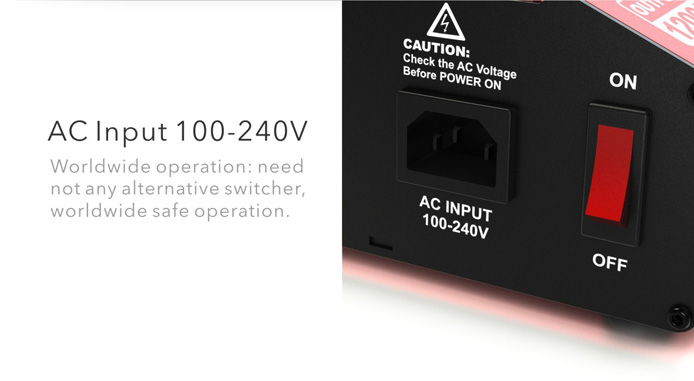

- Voltage…………………………………………………………………………………………………100-240V AC
- Input AC Frequency…………………………………………………………………………………………50-60Hz
- Output Voltage……………………………………………………………………………………15-30V DC±0.5V
- Output Current………………………………………………………………………………………………50A±1A
- Current Overload Protection…………………………………………………………………………≤ 51A 500MS
- Input Fuse…………………………………………………………………………………………… 20A Fuse

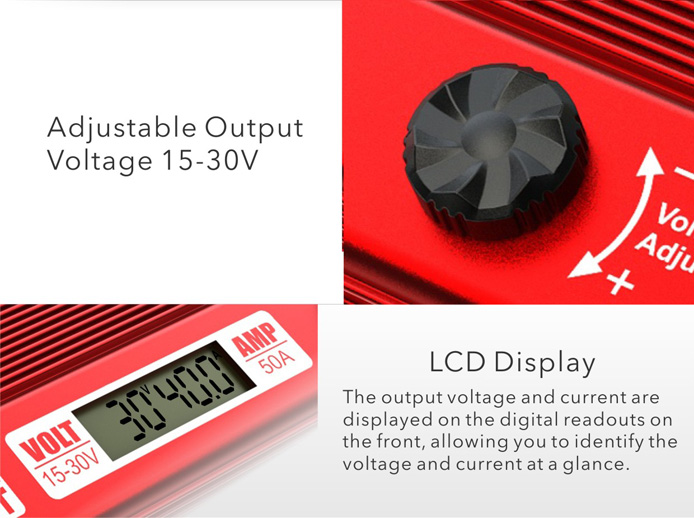

- LCD Display………………………………………………………………………………Voltage Precision ±0.3V
- Current Precision ±0.5A
- Output Voltage Ripple………………………………………………………………………………………< 300mV
- Power Efficiency………………………………………………………………………………………………89%

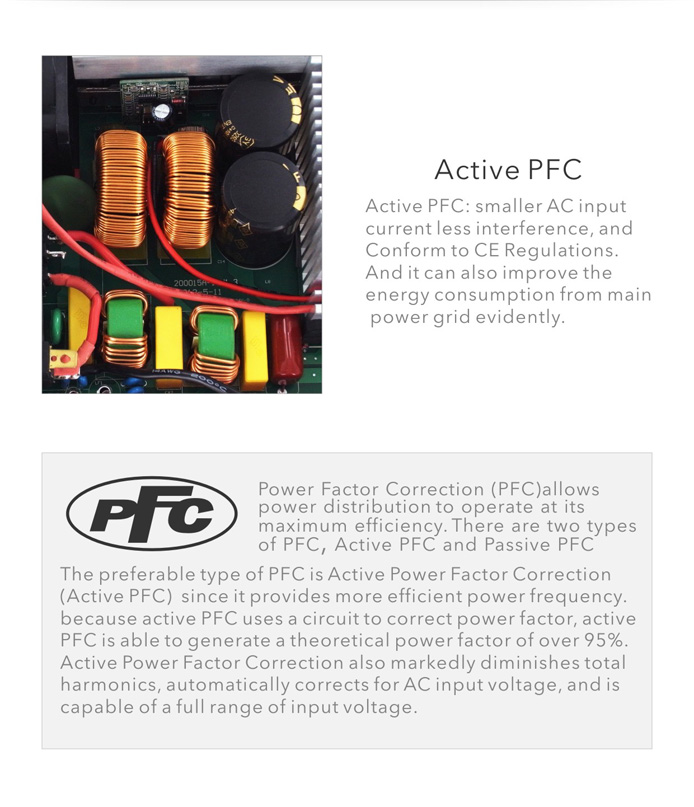

- Power Factor……………………………………………………………………………………………………> 0.98
- Over Temperature Protection………………………………………………………………………………<65℃

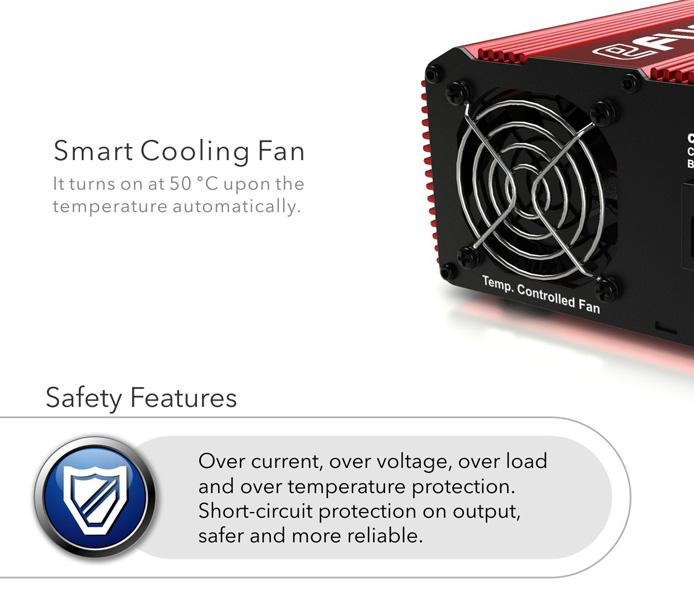

- Cooling Method…………………………………………………………………………………………Cooling Fan
- Operating Temperature………………………………………………………………………………………0-40℃
- Operating Humidity……………………………………………………………………………………………0-90%

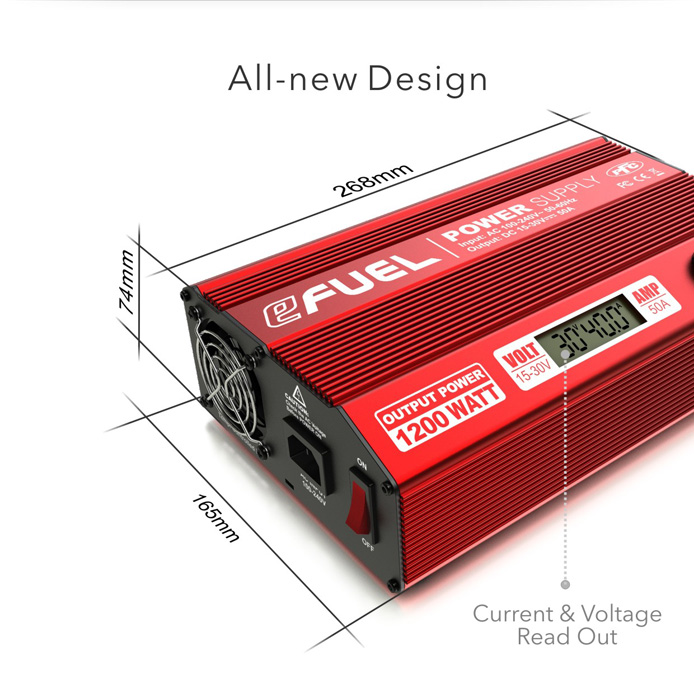

- Dimensions (L*W*H)……………………………………………………………………………305x170x85mm
- Net weight………………………………………………………………………………………………………3.08kg
Specifications are typical; individual units might vary. Specifications are subject to change and improvement without notice.
Package included:
- 1 x SKyrc eFuel 1200W 50A Power Supply
