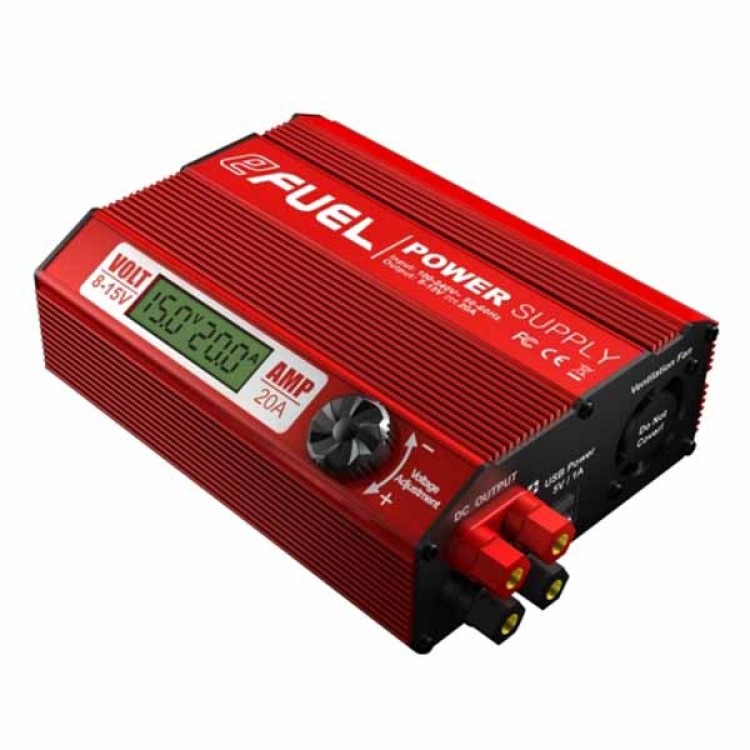

SKYRC EFUEL 20A Switching DC Power Supply
eFUEL switching DC Power Supply is designed to use household AC power source to power equipments that required DC power. The eFUEL converts standard household power 110-120V AC or 200-240V AC to 6-15V DC power and can supply up to 20 amperes of continuous power.
Features:
- Two 15 volts power outputs, up to 20 amperes
- Output voltage adjustable 6-15V(Part No. PSU20ADU & PSU20ADE only)
- Large LCD indicates voltage and current amperes output (Part No. PSU20ADU & PSU20ADE only)
- Smart cooling fan
- Over temperature protection
- Over loading protection
- Short circuit protection
Specifications:
- Voltage:110V AC (Part No.PSU20ADU,PSU20AU)
220V AC (Part No.PSU20ADE,PSU20AE)
- Input AC Frequency: 50Hz/60Hz
- Output Voltage: 6-15V DC±0.5V
- Output Current: 20A±1A
- Current Overload Protection: ≤21A 500MS
- Input Fuse: 110V AC 6.3A Fuse,220V AC 3.15A Fuse
- LCD Display: Voltage Precision ±0.3V,Current Precision ±0.3A
- Output Voltage Ripple: <100MV
- Power Efficiency: >80%
- Power Factor: >0.7
- Over Temperature Protection: <100℃
- Cooling Method: Cooling Fan
- Operating Temperature: 0-40℃
- Operating Humidity: 0-90%
- Dimensions (L*W*H): 184.5x92x50mm
- Net weigh: 908g
