Skyrc eFuel Super Compact Size 230W 17A 100-240V AC Charger Power Supply Adapter for RC Helicopter and Airplane

Description:

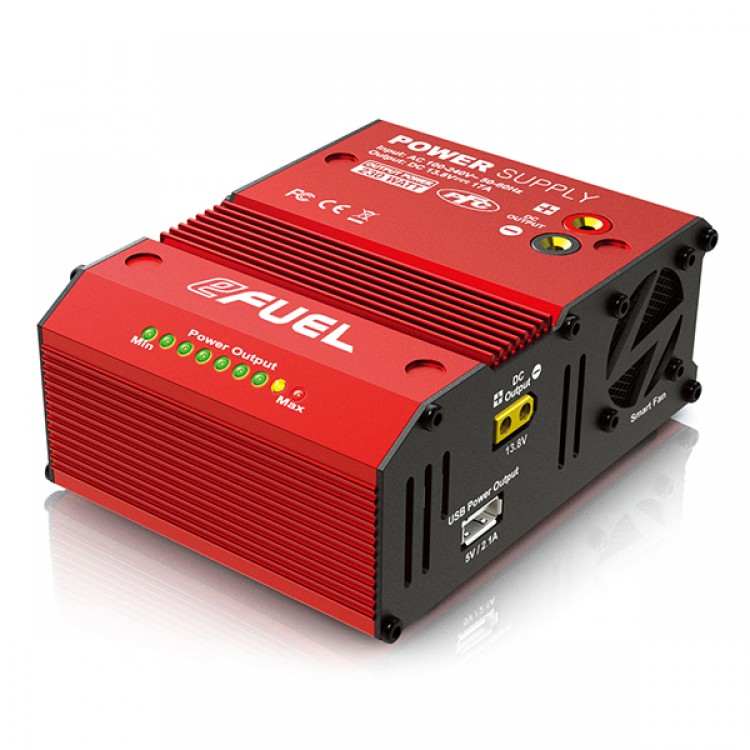

-  The eFUEL can convert standard household power 100-240V AC to 13.8V DC power and supply max 17 amperes of continuous power. It delivers smooth and reliable power and it not only enables RacingStar RS16 Charger but also RacingStar RSTW Tire Warmer to dock directly without the use of messy DC cables. It can also be used with other DC devices.




Two DC Outputs
- Two DC power outputs, total output power up to 17 amperes. Output 1 is located on the top and the output 2 is located on the right side of the power supply.



AC Input 100-240V
-  Worldwide operation: need not any alternative switcher, worldwide safe operation.

Nine LED indicators
- Nine LED indicates output power from minimum to maximum.


Direct Plug Docking System
 - There is DC output on the top of the power supply and it is designed for use with RacingStar RS16 Charger and RacingStar RSTW Tire Warmer. A pair of dual banana plugs which is used to connect the Charger/Tire Warmer and power supply are included in the package.





Specifications:
- Input Voltage…………………………………………………………………………………………100-240V AC
- Input AC Frequency…………………………………………………………………………………………50-60Hz
- Output Voltage……………………………………………………………………………………13.8V DC±0.2V
- Output Current………………………………………………………………………………………………17A±0.5A
- Current Overload Protection……………………………………………………………………≥17.5A 500MS
- Input Fuse…………………………………………………………………………………………… 5A Fuse
- Output Voltage Ripple………………………………………………………………………………………<150mV
- USB Output……………………………………………………………………………………………… …5V / 2.1A
- Power Efficiency………………………………………………………………………………………………91%
- Power Factor……………………………………………………………………………………………………>0.98
- Over Temperature Protection……………………………………………………………………………… 65℃
- Cooling Method…………………………………………………………………………………………Cooling Fan
- Operating Temperature………………………………………………………………………………………0-40℃
- Operating Humidity……………………………………………………………………………………………0-90%
- Dimensions (L*W*H)………………………………………………………………………125.7x92.7x50.2mm
- Net weight…………………………………………………………………………………………………………602g

Specifications are typical; individual units might vary. Specifications are subject to change and improvement without notice.

Package list:
-  1 x Skyrc eFuel Super Compact Size 230W 17A Power Charger
