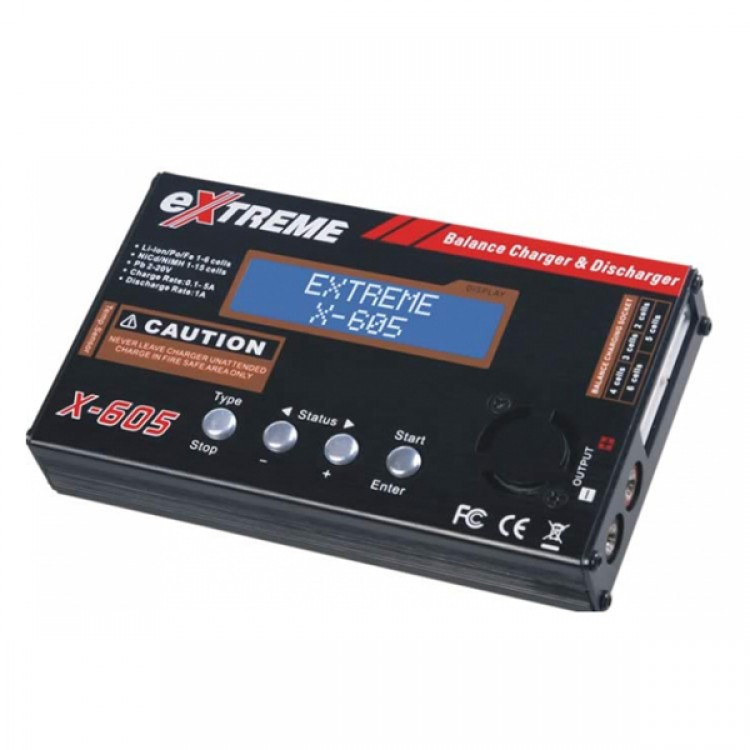

SkyRC EXtreme X-605 Battery Charger / Discharger (DC input)

SkyRC EXtreme X-605 Battery Charger / Discharger (DC input)


This eXtreme 605 is a rapid charger with a high performance microprocessor and specialized operating Software. It features an AUTO function that controls the charge rate during charging and discharging. For Lithium batteries, this can prevent overcharging which may lead to an explosion due to the user's setting the charge rate improperly. It will disconnect the circuit automatically and initiate an alarm if there is any malfunction. All the operating modes of this charger are controlled through two way communication, between the charger and the battery to achieve maximum safety. All the settings can be configured by the user.

Internal independent lithium battery balancer - the eXtreme 605  employs an individual-cell-voltage balancer. It is not necessary to connect an external balancer for balance charging. The eXtreme 605  is adaptable to various types of Lithium batteries, such as Li-ion, LiPo and the new LiFe series of batteries.

Features:
- Optimized operating software
- Internal independent lithium battery balancer
- Balancing individual cells battery discharging
- Adaptable to various types of lithium battery
- "Fast" and "storage" mode of lithium battery
- Maximum safety
- Automatic charging current limit
- Temperature threshold
- Processing time limit
- Data store/load
- Cyclic charging/discharging

Specifications:
- Operating voltage range: DC 11.0-18.0 Volt
- Circuit power: Max.charge power 50W
- Max.discharge power 5W
- Charge current range: 0.1-5.0A
- Discharge current range: 0.1-1.0A
- Current drain for balancing Li-po: 300mA /cell
- NiCd/NiMH battery cell count:1-15cells
- Li-ion/Polymer cell count:1-6cells
- Pb battery voltage:2-20V
- Dimensions: 133x87x33mm
- Net weight: 277g
