SkyRC iMAX B6 Mini Charger Digital LCD RC Lipo NiMH battery LiPro Balance Charger

SkyRC iMAX B6 Mini Charger Digital LCD RC Lipo NiMH battery LiPro Balance Charger























Description:

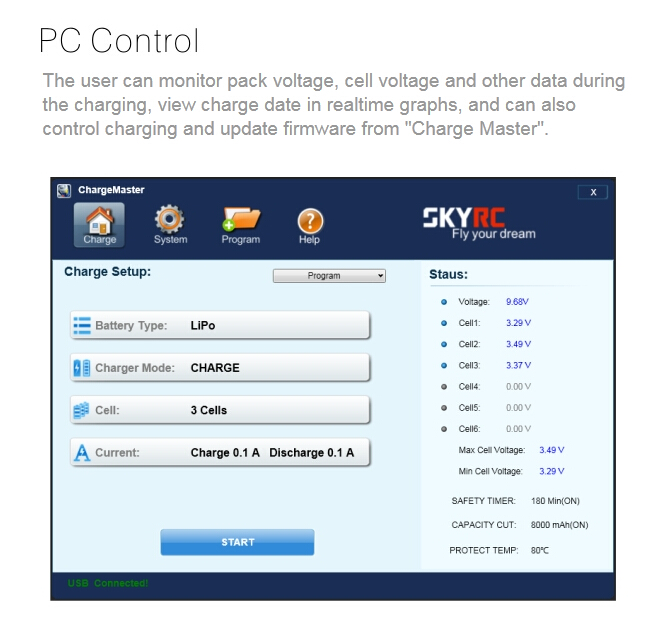

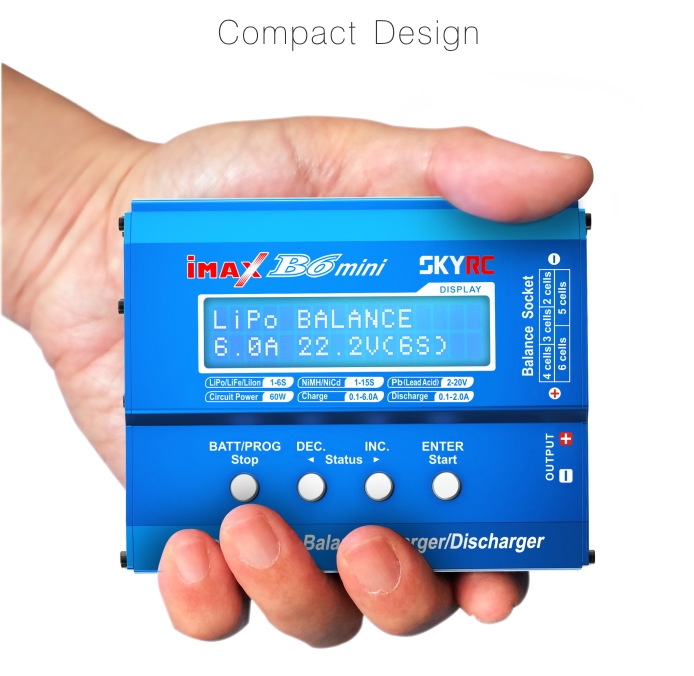

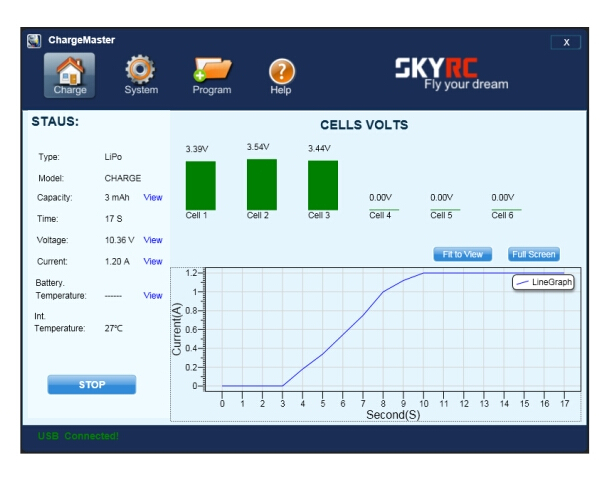

- SKYRC B6 mini is the small and upgraded version for well-known IMAX B6. Compared with B6, it is has new features and functions with its super compact size. Smaller size, bigger power. Compared with B6, the power and charge current are 20% up. Users could connect B6 mini to - PC for PC control and firmware upgrade. What's more, users could also use it as Lithium Battery Meter and Battery Internal Resistance Meter.

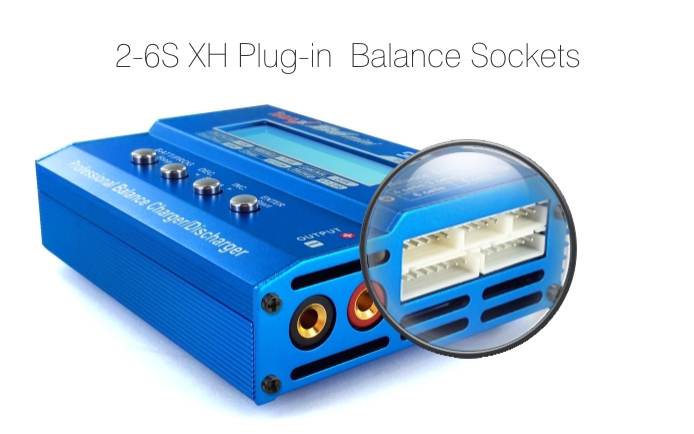

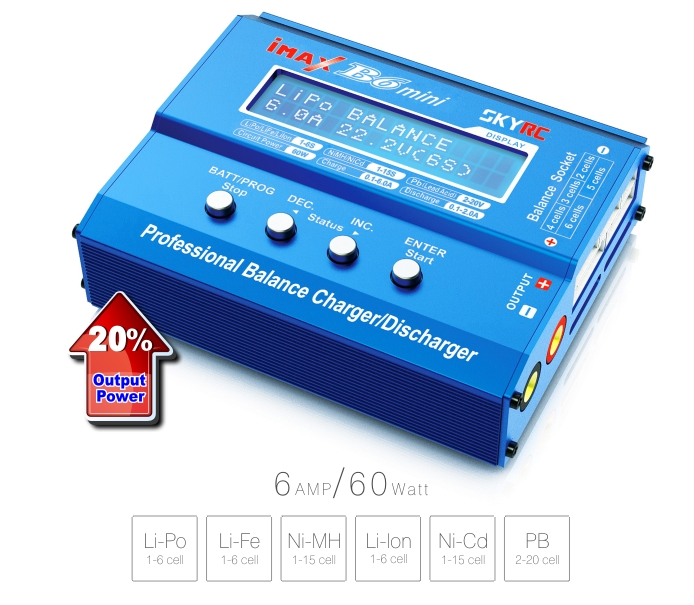

- SKYRC B6 mini is a high-performance, micro processor control charge/discharge station with battery management suitable for use with all current battery types, with integral equalizer for six-cell Lithium- Polymer (LiPo), Lithium-Ferrum (LiFe) and Lithium-Ion (LiIon) batteries; maximum 6A charge current and maximum 60W charge power.

Specification:

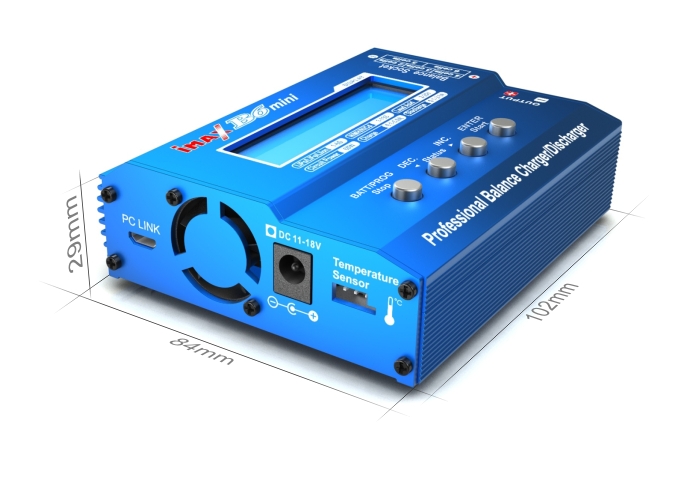

- Net Weight:233g
-  Input Voltage: DC11-18V
- Circuit Power : Max Charge: 60W
- Max Dischage: 5W
- Charge Current Range:0.1-6.0A
- Discharge Current Range : 0.1-2.0A
- LiPo/LiFe/LiIon Cells :1-6S
- NiMH/NiCd Cells:1-15S
- Pb battery Voltage :2-20V


	Dimersions
	Net Weight		233g
	Input Voltage		DC11-18V
	Circuit Power		Max Charge: 60W Max Dischage: 5W
	Charge Current Range		0.1-6.0A
	Discharge Current Range		0.1-2.0A
	LiPo/LiFe/LiIon Cells		1-6S
	NiMH/NiCd Cells		1-15S
	Pb battery Voltage		2-20V

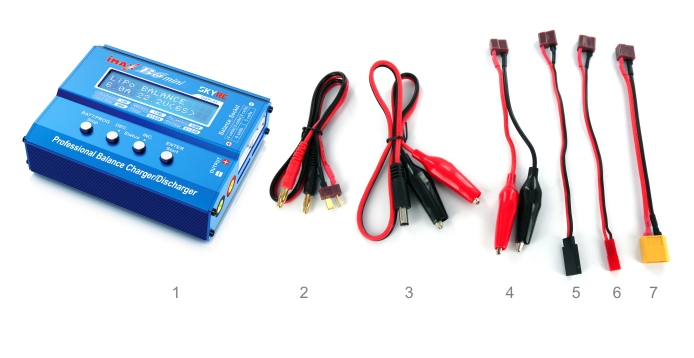

Package Include:


- SKYRC B6 mini Charger
- T Plug with Banana connector Charging Cable
- DC Cable with Alligator Clip Charging Connector
- T Plug with Alligator Clip connector Charging Cable
- T Plug with Futaba connector Charging Cable
- T Plug with JST connector Charging Cable
- T Plug with XT60 connector Charging Cable
