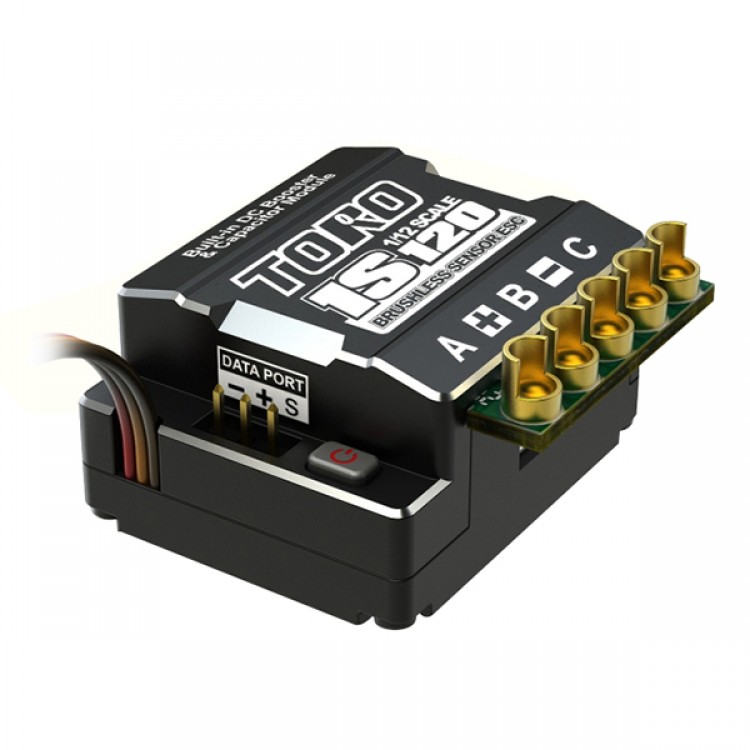

SKYRC TORO 1S120 ESC For 1/12 Onroad Competition Built-in DC Booster Capacitor

SKYRC TORO 1S120 ESC For 1/12 Onroad Competition Built-in DC Booster Capacitor

Description:
Toro One Cell 120A ESC is designed for 1/10th Scale one-cell class racing with small size, built-in power switch and durable aluminum out case. It also comes with built-in DC-booster and capacitor module.
It features advanced timing system and well-performed throttle and brake control function. Racers could set the boost and turbo timing precisely, and punch/brake control rate by point or customize the throttle/brake curve to meet the request for linear and power.
It also supports firmware update and can be programmed by SkyLink via PC, Program Box and even your smart phone.

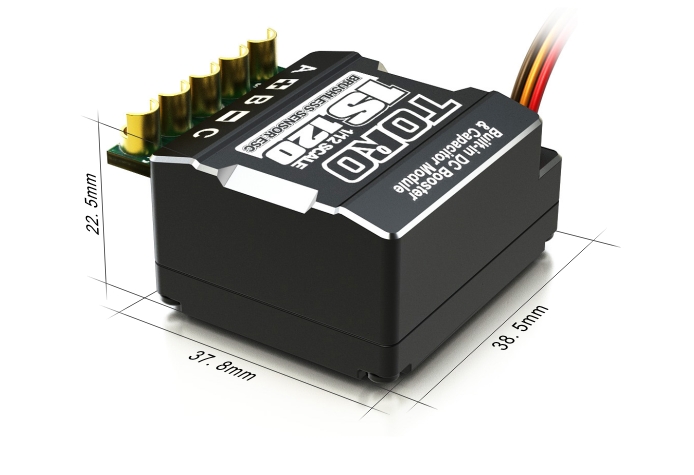

Size
Constant/Burst Current	120A/760A
Motor Compatible	Brushless Sensor & Sensorless Motor
Car Compatible	1/12 On Road competition
Motor Limits	≥3.5T(3 slots, 2 poles, 540 class motor)
Resistance	0.0003ohm
Battery Cell Count	1S LiPo
BEC Output	6V@3A, line
Weight	50g (without wire)

Toro 1S 120A ESC for 1/12 Onroad Competition:
- Toro One Cell 120A ESC is designed for 1/10th Scale one-cell class racing with small size, built-in power switch and durable aluminum out case. It also comes with built-in DC-booster and capacitor module.
- It features advanced timing system and well-performed throttle and brake control function. Racers could set the boost and turbo timing precisely, and punch/brake control rate by point or customize the throttle/brake curve to meet the request for linear and power.
- It also supports firmware update and can be programmed by SkyLink via PC, Program Box and even your smart phone.

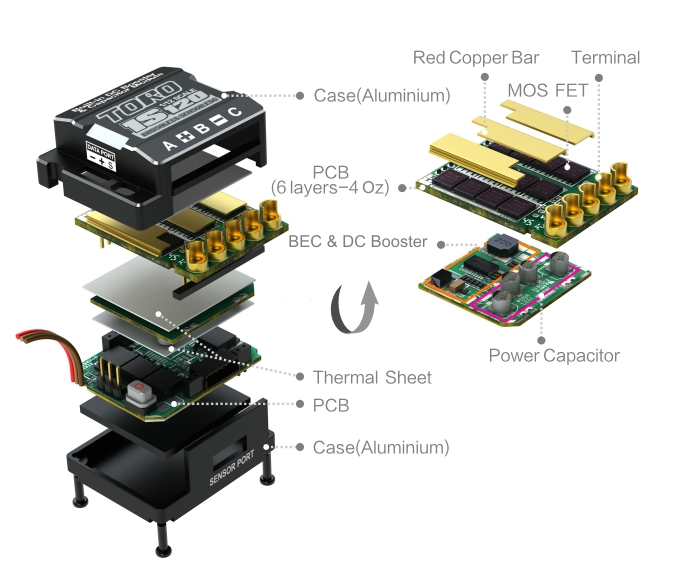

Compact Design:

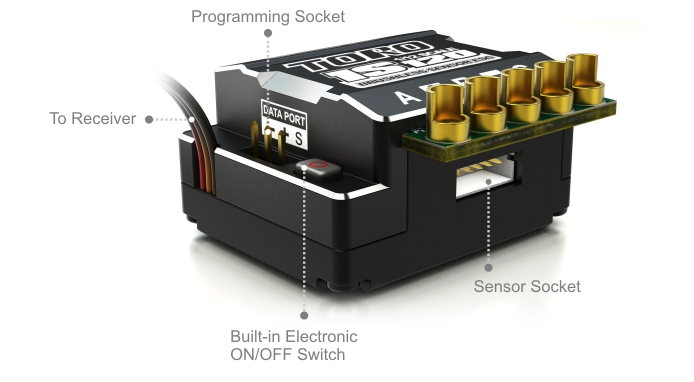

Built-in Electronic Switch:
- The electronic switch is built in so that it could save space.
- And the electronic switch is more sensitive and reliable.

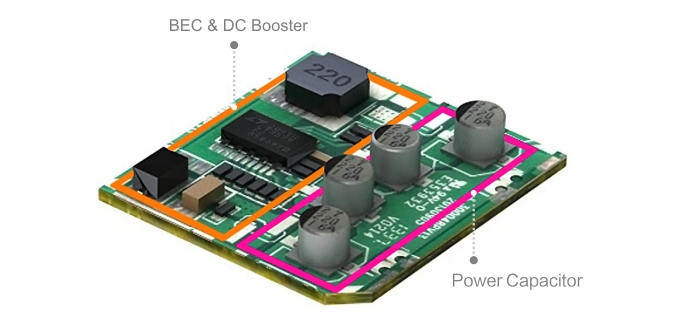

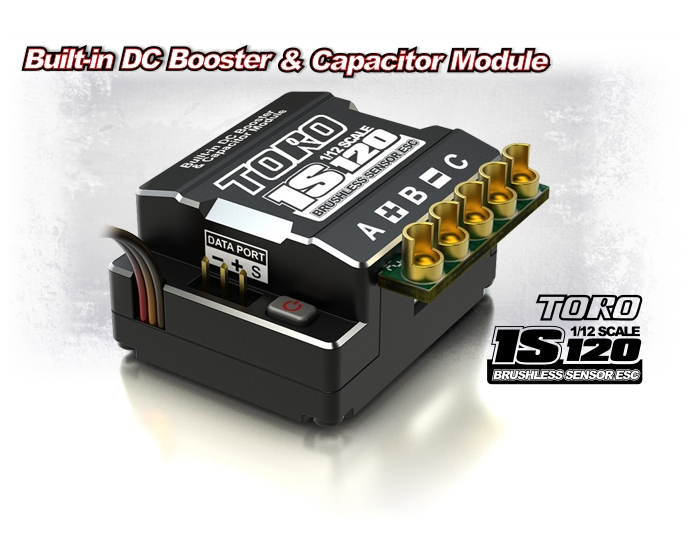

Built-in DC Booster & Capacitor Module:
- This ESC comes with built-in DC booster, which allows drivers to power their vehicle's electronics on a single 1 cell Li-Po battery pack without installing additional external boosters or receiver pack.
- And it's with built-in capacitor module. This feature does away with the need to use a separate capacitor.


Less Resistance,Less Heat, More Efficiency:

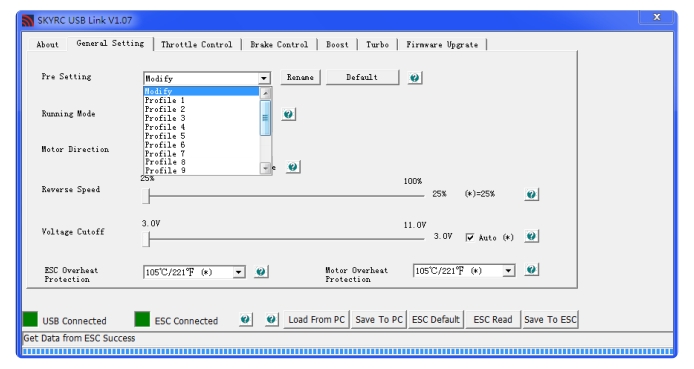

10 User Modifiable Profiles:
- The users could set and store 10 sets of profiles in the ESC. These data could be called out at any time without any special program setting. All the setting can be exported or imported so that the user could compare and analyze.


Safety Features:
- Low voltage protection
- Motor and ESC overheat protection
- Signal lost protection

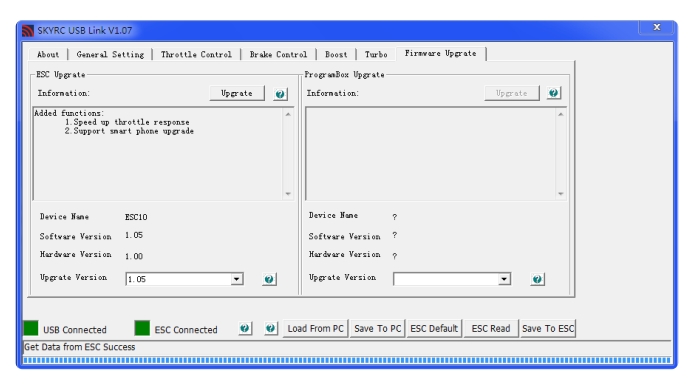

Firmware Update:
The firmware can be updated by connecting the ESC with PC or smart phone.

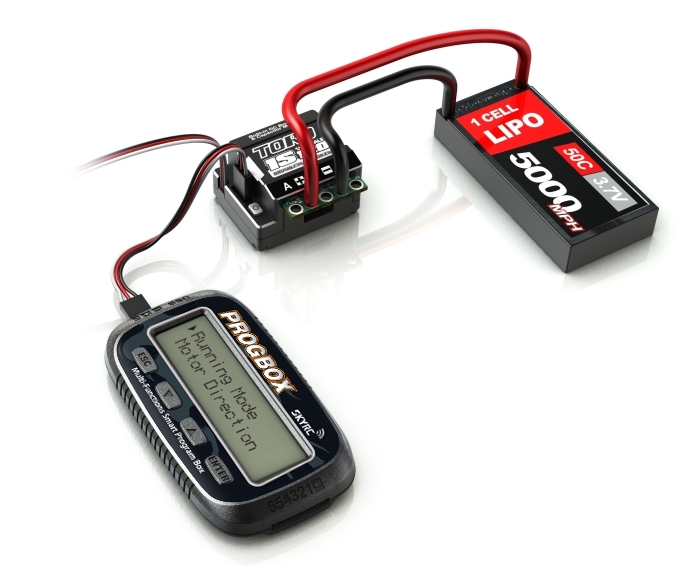

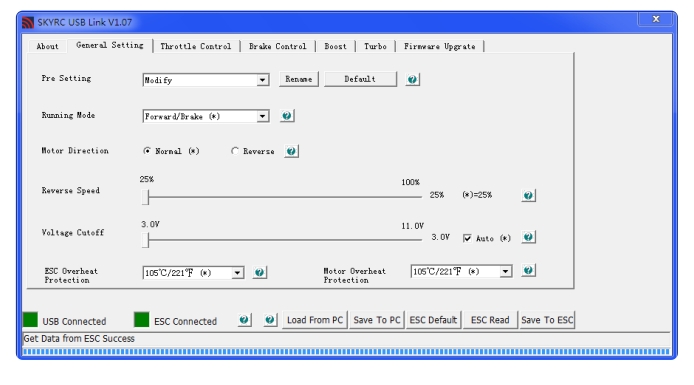

Programming Method:

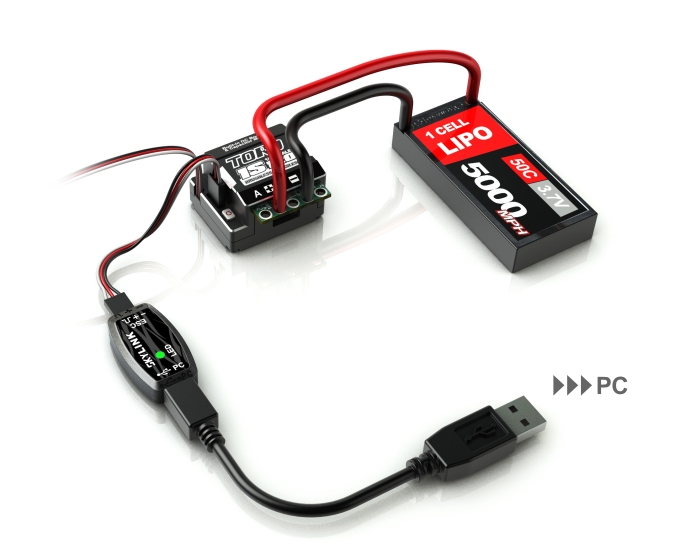

It can be programmed by PC connected with
1.SKYLINK(SK-600013)



2.PROGBOX(SK-300046)


Precise Programmable Items:
- Advanced Timing System
- Users could set the turbo and boost timing which can improve the motor RPM to get its best performance.

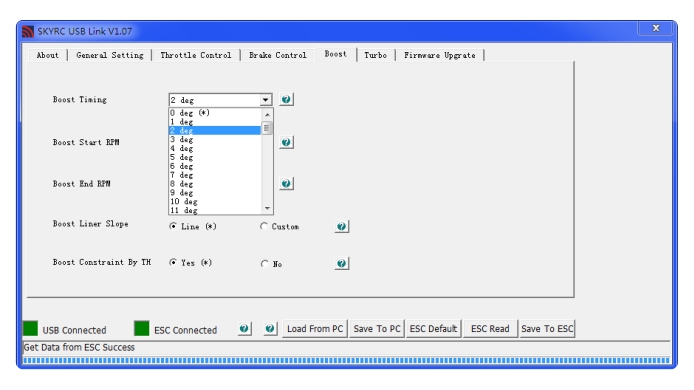

                                                                                    Boost Timing Setting

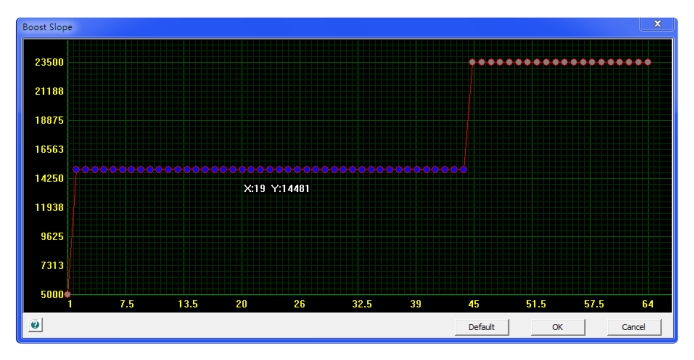

                                                                                         Boost Curve Custom

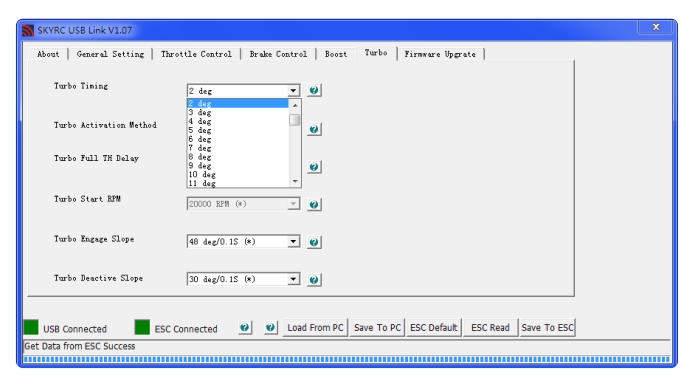

                                                                                         Turbo Timing Setting

Well-performed Throttle & Brake Control Function:
- Users could set the punch/brake control rate by point or custom the throttle/brake curve by themselves,and different customers' request for linear and power all can be met.

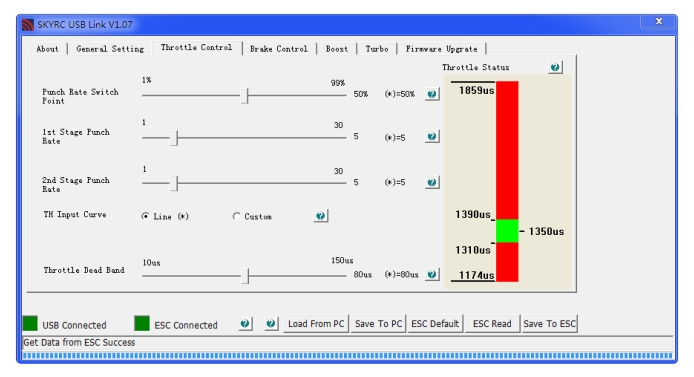

                                                                                      Throttle Control Setting

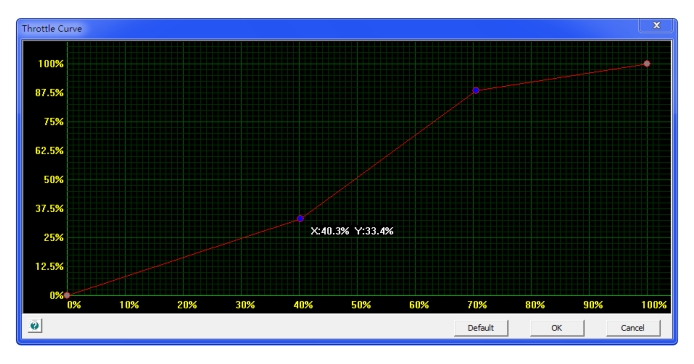

                                                                                   Throttle Curve Custom

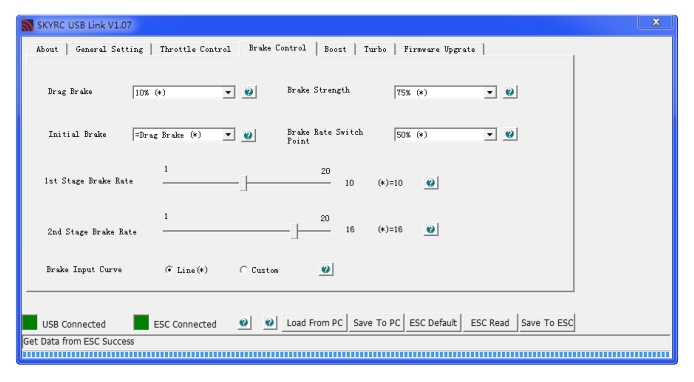

                                                                                 Brake Control Setting

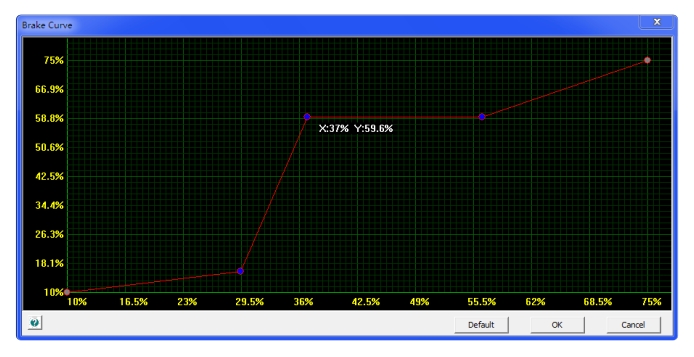

                                                                                       Brake Curve Custom
