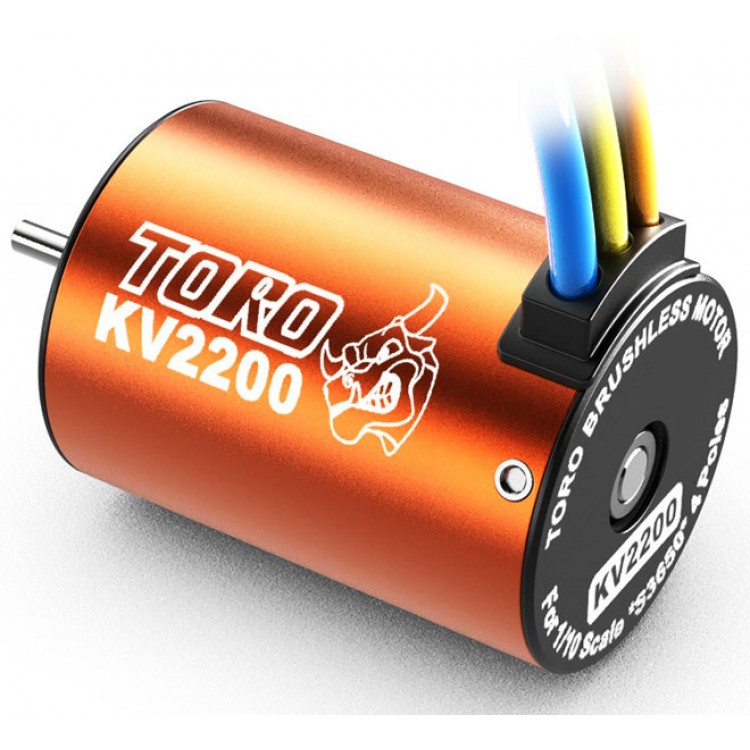

SKYRC Toro 2200KV/4P Sensorless Brushless Motor for 1/10 Car
Motor Features:
| Item Name | Toro 2200KV/4P BL Motor for 1/10 Car | ||
| Sensored /Sensorless | sensorless | No loading @7.2V Current | 0.8A |
| Turns | 6T | Max current | 28A |
| KV value | 2200KV | Resistance (Ω) | 0.021Ω |
| Poles | 4P | Battery range | 2-3S |
| Diameter | 35.9mm | Operation Temperature | <130C |
| Motor length | 50mm | Max Temperature | <180C |
| Extend shaft diameter | 3.17mm | Suitable car scale | 1/10 |
| Length of extend shaft | 15mm | Suitable ESC | >35A |
| Weight | 190g | Connector Type | 3.5mm |
| Thickness of lamination | 0.35mm | ||
