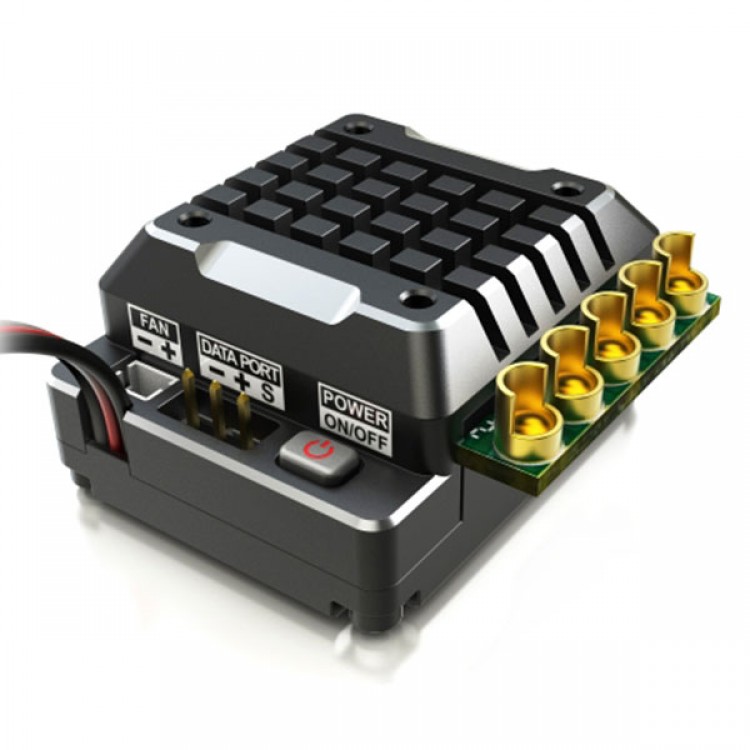

SkyRC Toro TS 120A ESC with Aluminum case for 1/10 and 1/12 Buggy and Truck
Description:
- Toro TS 120A ESC for 1/10th Scale Car is designed for the use with 2S to 3S LiPo battery packs, has a 3.5T motor limit and features a 6V/3A BEC system.
- The users could set and store 10 sets of profiles in the ESC. These data could be called out at any time without any special program setting. All the setting can be exported or imported so that the user could compare and analyze.
- Advanced Timing System ,Users could set the turbo and boost timing which can improve, the motor RPM to get its best performance.
- Users could set the punch/brake control rate by point or custom the,throttle/brake curve by themselves,and different customers' request , for Line and power all can be met
Specification:
- Weight :45g (without wire)
- Constant/Burst Current :120A/760A
- Motor Compatible : Brushless Sensor & Sensorless ESC
- Car Compatible :1/10 and 1/12 On Road and Off Road
- 1/10 and 1/8 Crawlers: Motor Limits ,5-6S NiMH or 2S LiPO--≥3.5T(1/10 On Road), ≥5.5T(1/10 Off Road)
- 8-9S NiMH or 3S LiPO--≥5.5T(1/10 On Road),≥8.5T(1/10 Off Road)
- Resistance : 0.0003ohm
- Battery Cell Count : 4-9S NIMH or 2-3S LiPO
- BEC Output :6V/3A
- FAN:8V/0.2A , MAX 12.6V
