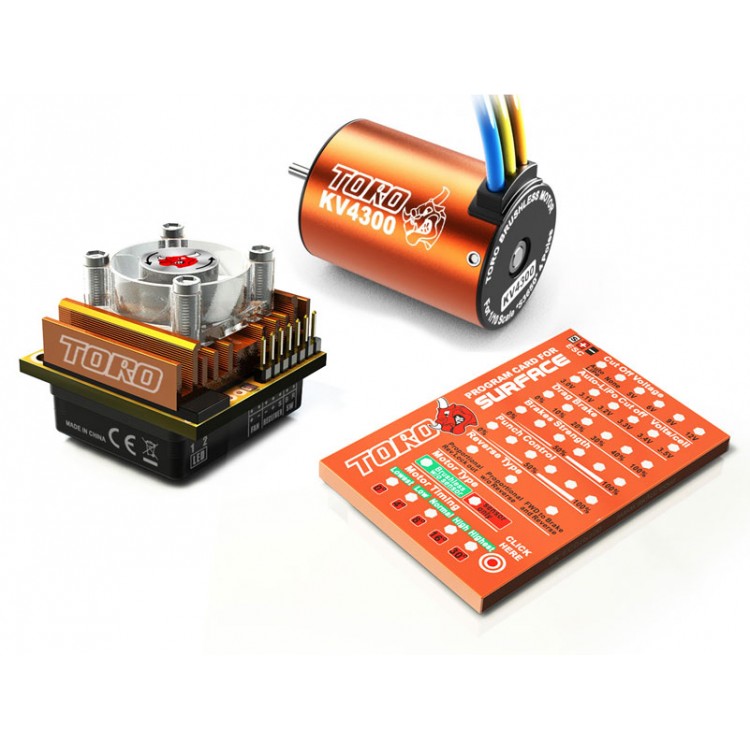

SKYRC Toro10 C60 60A ESC Combo+Toro 4300KV/4P Brushless Motor w/ Programming Card for 1/10 Scale Car
| ESC | Motor | Program Card |
| Toro 10 C60 60A ESC | Toro 4300KV/4P BL Motor | Y |
ESC Features:
|
Controls, TORO 10 RTR |
Rev/Brk/ or Fwd/Rev |
|
|
Input Power (Cells) |
2-3S LiPo/LiFe, 4-8 NiMH (12.6V Max) |
|
|
Motor Limits |
C120 120A |
2S LiPo(4-6S NiMH): On Road ≥4.5T Off Road ≥6.5T 3S LiPo(7-8S NiMH): On Road ≥6.5T Off Road ≥9.5T |
|
C60 60A |
2S LiPo(4-6S NiMH): On Road ≥6.5T Off Road ≥8.5T 3S LiPo(7-8S NiMH): On Road ≥10.5T Off Road ≥17.5T |
|
|
C45 45A |
2S LiPo(4-6S NiMH): On Road ≥8.5T Off Road ≥11.5T 3S LiPo(7-8S NiMH): On Road ≥13.5T Off Road ≥17.5T |
|
|
C35 35A |
2S LiPo(4-6S NiMH): On Road ≥10.5T Off Road ≥13.5T 3S LiPo(7-8S NiMH): On Road ≥13.5T Off Road ≥18.5T |
|
|
Linear BEC |
5.0V 2Amp |
|
|
Status LED |
White LED, 3 color LED (Red, Green & Orange) |
|
|
Thermal Overload Protection |
Yes |
|
|
Compatibility |
Brushless Motor |
|
|
Dimensions(L*W*H/without fan) |
40.5*37.5*24mm(1.6*1.47*0.95in) |
|
|
Weight(Without wires) |
45g(1.59oz) |
|

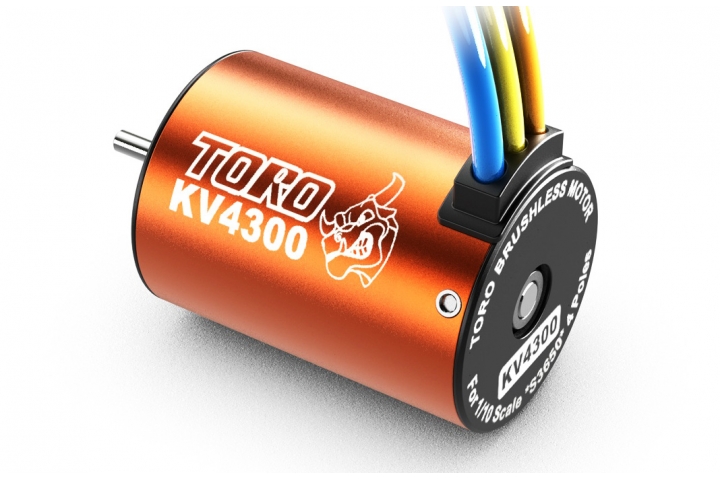

Motor Features:
| Item Name | Toro 4300KV/4P BL Motor for 1/10 Car | ||
| Sensored /Sensorless | sensorless | No loading @7.2V Current | 2.5A |
| Turns | 2T | Max current | 72A |
| KV value | 4300KV | Resistance (Ω) | 0.006Ω |
| Poles | 4P | Battery range | 2S |
| Diameter | 35.9mm | Operation Temperature | <130C |
| Motor length | 50mm | Max Temperature | <180C |
| Extend shaft diameter | 3.17mm | Suitable car scale | 1/10 |
| Length of extend shaft | 15mm | Suitable ESC | >80A |
| Weight | 190g | Connector Type | 3.5mm |
| Thickness of lamination | 0.35mm | ||
Programming card specification:
- Use for TORO series ESC
- Dimension: 52.5x79.5x6.6mm
- Weight: 11g
