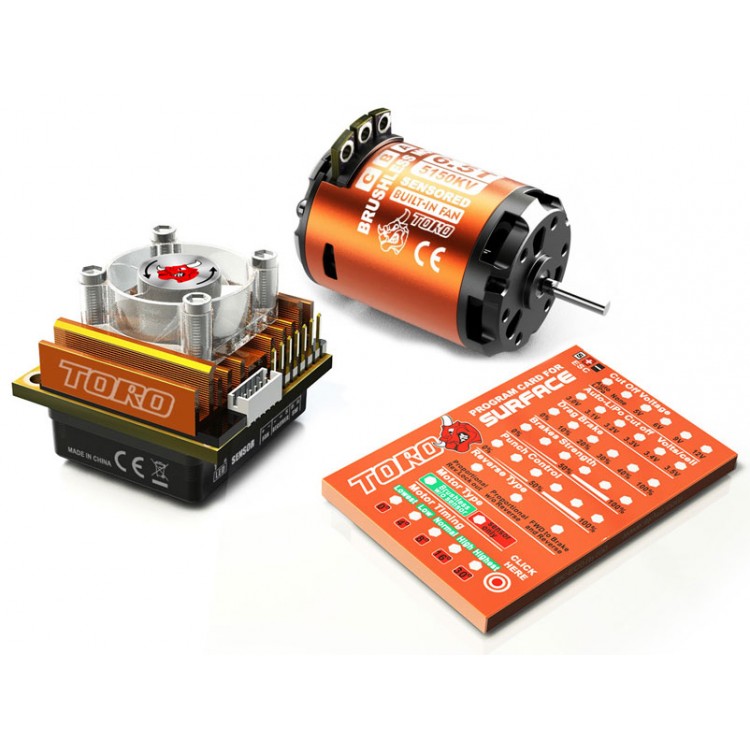

Skyrc Toro10 S120 120A ESC+Ares 5150KV/6.5T/2P Brushless Motor w/ Programming Card for 1/10 Scale Car
| ESC | Motor | Program Card |
| Toro 10 S120 120A ESC | Ares 5150KV/6.5T/2P BL Motor | Y |

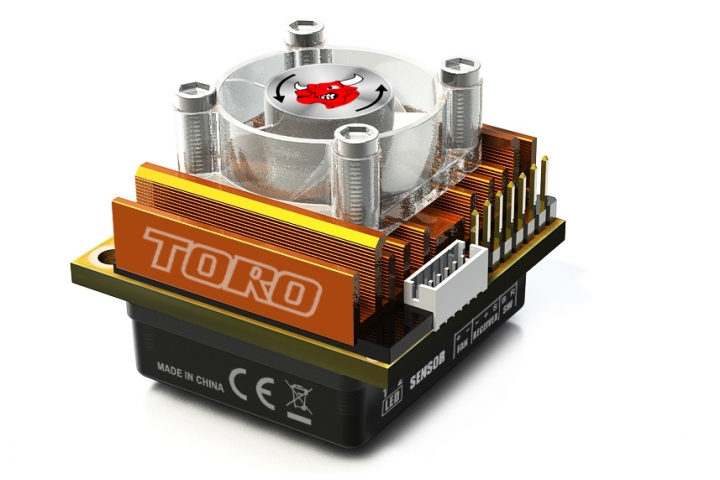

ESC Features:
|
Controls, TORO 10 RTR Sensor |
Rev/Brk/ or Fwd/Rev |
|
|
Input Power (Cells) |
2-3S LiPo/LiFe, 4-8 NiMH (12.6V Max) |
|
|
Motor Limits |
S120 120A |
2S LiPo(4-6S NiMH): On Road ≥4.5T |
|
S60 60A |
2S LiPo(4-6S NiMH): On Road ≥6.5T |
|
|
S45 45A |
2S LiPo(4-6S NiMH): On Road ≥8.5T |
|
|
S35 35A |
2S LiPo(4-6S NiMH): On Road ≥10.5T |
|
|
Linear BEC |
5.0V 2Amp |
|
|
Status LED |
White LED, 3 color LED (Red, Green & Orange) |
|
|
Thermal Overload Protection |
Yes |
|
|
Compatibility |
Sensored Brushless Motor or Sensorless Brushless Motor |
|
|
Dimensions(L*W*H/without fan) |
40.5*37.5*24mm(1.6*1.47*0.95in) |
|
|
Weight(Without wires) |
45g(1.59oz) |
|

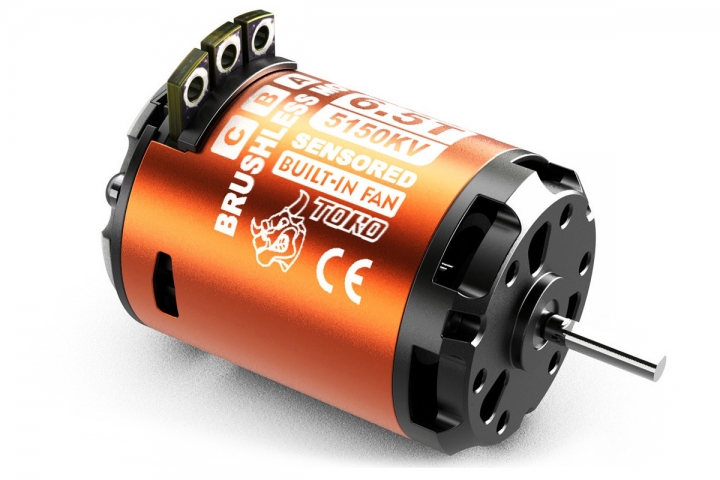

Motor Features:
| Item Name | Ares 5150KV/6.5T/2P BL Motor for 1/10 Car | ||
| Sensored /Sensorless | sensored | No loading @7.2V Current | 6.6A |
| Turns | 6.5T | Max current | 43A |
| KV value | 5150KV | Resistance (Ω) | 0.0085Ω |
| Poles | 2P | Battery range | 2S |
| Diameter | 35.9mm | Operation Temperature | / |
| Motor length | 51.5mm | Max Temperature | 180° |
| Extend shaft diameter | 3.17mm | Suitable car scale | 1/10 |
| Length of extend shaft | 13.6mm | Suitable ESC | 120A |
| Weight | 163g | Connector Type | / |
Programming card specifications:
- Dimension: 52.5x79.5x6.6mm
- Weight:11g
