Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $350.58 | $343.42 | $332.69 | $318.38 | Contact US |

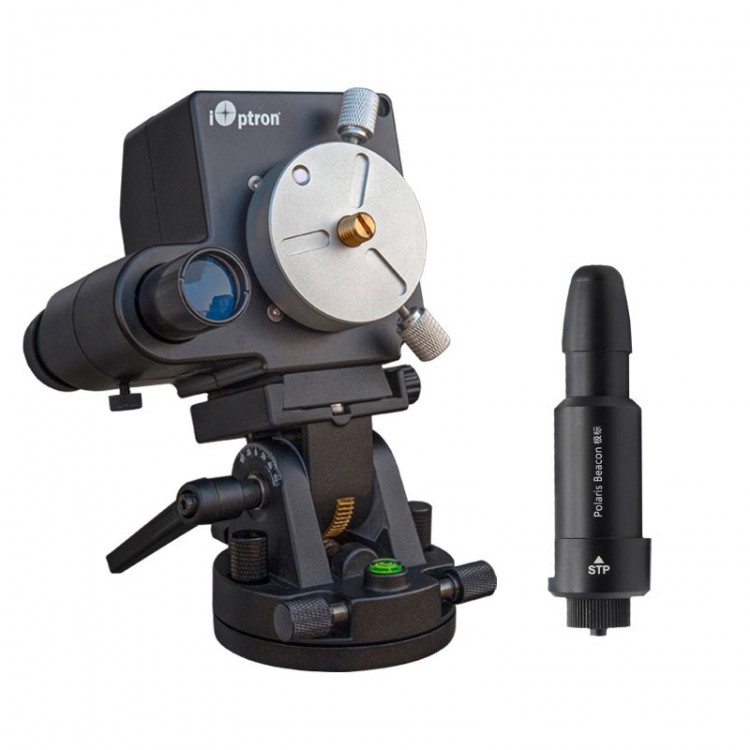

SkyTracker Pro 2025 EASY Version Portable Equatorial Mount with Polaris Beacon Coaxial Laser Indicator for iOptron
Improvements:
- A clamp structure has been added between the main axis and the connecting plate of the equatorial instrument to prevent the failure of locking two screws on the connecting plate in case of accidents; The adjustment/locking screws of the base have been upgraded to aluminum alloy knurled screws, which are more durable and have a better hand feel.
- Polaris Beacon: For iOptron SkyTracker Coaxial Laser Indicator, high-precision coaxial calibration, used instead of polar scopes, can quickly align the polar axis in 30 seconds, with precision support for medium focus to wide-angle lenses in 5-15 minutes.
Precision Description:
- The tracking time of the equatorial instrument is related to many factors. Under the condition of aligning the polar axis and ensuring the rigidity and balance of the system, for iOptron small star field has a wide angle within 24mm, tracking for more than 10 minutes, tracking for 6-4 minutes from 24mm to 85mm at the medium focal length, and tracking for 1-3 minutes at the long focal length. The above measurements are for reference only.
- The rigidity and stability of the equatorial instrument and camera connectors: Before shooting, check whether the tripod is placed firmly, do not place it on wooden walkways or soft mud, and check whether each connecting part is locked.
- The load weight of the equatorial instrument (camera/lens/gimbal, etc.): When carrying heavy loads, it is best to use a balance kit to balance them and minimize the installation of unnecessary accessories.
- Balance of load on equatorial instrument: It is recommended to use an equatorial instrument to capture images for a period of time, and then adjust the table or equatorial instrument to return the camera to a horizontal position, so that the center of gravity of the load passes through the axis of the equatorial instrument as much as possible to reduce the lateral moment generated by the load.
- Check whether the equatorial instrument battery is sufficient. Please check the battery level before shooting, charge it in a timely manner, or use an external power supply.
- Whether there are external forces such as strong winds: Try to find a shelter to set up an equatorial telescope (near the car/against the wall, etc.), and if necessary, use your body to block the incoming wind.
Specification:
- Model: SkyTracker Pro
- Type: single-axis equatorial mount
- Main body weight: 685g (including the battery weight)
- Fine tuning base: independent base, fine adjustment of azimuth and elevation (450g)
- Net weight: 1140g (including the fine tuning base)
- Applicable area: southern/northern hemisphere
- Maximum load: 3kg
- Red meridian axis: Ø25mm/steel
- Number of bearings: 4
- Worm gear: Ø74mm/144 teeth
- Worm: Ø11mm
- Connection base diameter: Ø53mm
- Base thread: 3/8", with 1/4" conversion nut
- Polar mirror: standard configuration (adjustable brightness, dark field illumination)
- Battery: built-in rechargeable lithium battery 3.7V/2000mAH
- External power supply: 5V/Micro USB interface power supply/charging
- Battery life: ≥20hours (at room temperature)
- Tracking speed: solar speed, moon speed, stellar speed, 1/2 stellar speed
- Quick adjustment: up to 180X
- Working environment temperature: -15 ~ 40℃
- Portable bag: nylon soft bag
- Main unit size: 115 x 115 x 95mm
- It is recommended to use a balance kit with a lens within 360mm for shooting (not exceeding the effective load)
Package Included:
- 1 x Set of Equatorial Mount
- 1 x Polaris Beacon
