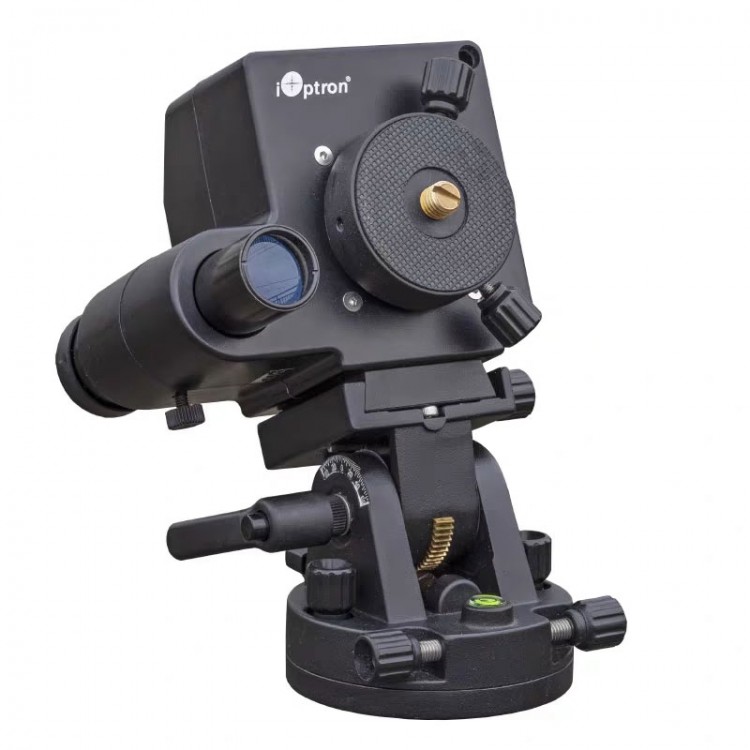

SkyTracker Pro Camera Mount Camera Tracking Device with Polar Scope Supports 3KG/6.6LBS Payload

SkyTracker Pro Camera Mount Camera Tracking Device with Polar Scope Supports 3KG/6.6LBS Payload

Description:
Introducing The SkyTracker Pro -- next generation camera tracking device!

Upgraded from SkyTracker, the SkyTracker Pro is more compact, small enough to fit on your palm, with better precision and silent tracking. It even has a built-in rechargeable power source that runs for up to 24 hours of continuous operation. The improved precision polar scope maintains a fine engraved reticule, now features adjustable illumination with eight brightness levels. Using with our smart phone app, quick and accurate polar alignment is just a joy.

The SkyTracker Pro features four tracking rates, 1X or sidereal, 1/2X for sky and landscape, solar and lunar. All 4 tracking rates work in both northern and southern hemispheres. We have also added a quick slew mode with both forward and reverse to help quickly reframing your image without disrupting the camera's position.

We have made big improvements on the SkyTracker Pro's removable alt-azimuth base, which features a precision bubble level, degree markings for the altitude and a built in post for the azimuth control. You can also mount the SkyTracker Pro head (without the base) directly to any standard photographic tripod with 1/4" or 3/8" threads. The SkyTracker Pro is certainly a must have tool for any photographer interested in astroscape or wide field astrophotography.

Features:
* All metal structure with ABS covers
* Attaches to a camera tripod with 3/8" or 1/4" threads
* Accepts cameras weighing up to 3 kg (6.6 lbs)
* Silent tracking for smooth camera motion, perfect for long-term exposures
* Detachable alt-azi base with fine latitude and azimuth adjusters for easy polar alignment
* Reversible mounting post for both 3/8" and 1/4" threaded ball head mounting
* Includes AccuAlign dark-field illuminated polar scope
* Adjustable polar scope illumination with eight brightness levels
* 4 tracking speed (1X, 1/2X, solar and lunar). 1X celestial tracking for imaging the sky and stars; 1/2X tracking speed for imaging both the starry night and the landscapes at the same time
* Quick slew (180X max.) for camera framing adjustment
* Operation in both northern and southern Hemisphere
* Built-in rechargeable battery with USB port for power and charging
* Up to 24 hours of operation (20°C)
* 1/4"-3/8" thread converter included

Technical Specifications:
* Mount: Ultra compact single axis EQ
* Payload (MAX): 6.6 lbs (3kg)
* Mount weight: 685 gm with battery
* Body material: Die-cast aluminum with ABS cover
* RA shaft: Φ25mm, steel
* Worm wheel: Φ74mm, 144 teeth aluminum alloy
* Worm gear: Φ11mm, brass
* Worm period: 600 sec
* Bearing: 4 pieces
* Motor drive: DC servo
* Tracking: R.A. automatic
* Tracking speed: 1X Cel, 1/2 Cel, solar, lunar, N/S
* Fast slew speed: 180X, forward and reverse
* Polar sight hole: ~ 8º FOV
* Polar scope: 6º FOV, dark field illuminated (8 adjustable intensity)
* Power requirement: Internal rechargeable battery
* Battery type: Li-Poly, 3.7V, 2000mAh
* Duration of operation: Up to 24 hours at 20ºC
* Power charge port: MiniUSB (5V), 80% charge in 5 hours
* Body dimension: 115x115x95 mm
* Operation Temperature: -15 to 40ºC
* Mounting ring: Ø53 mm, 3/8" or 1/4" post threads
* Body-base connection: Vixen dovetail, 3/8" socket w/ 1/4" converter
* Alt-Azi adjustable Base: Vixen style saddle, 3/8" socket (1/4" converter)
* Latitude adjustment range: -30º to 65º (with Alt-azi base)
* AZ adjustment range: ±5°
* Base diameter: Φ80 mm

Package Included:
* 1 x Set of Camera Mount

Packaging Details:
* Weight: 3.5kg

Note:
* Only black color is available. Camera, lens, ball head and tripod are not included.
