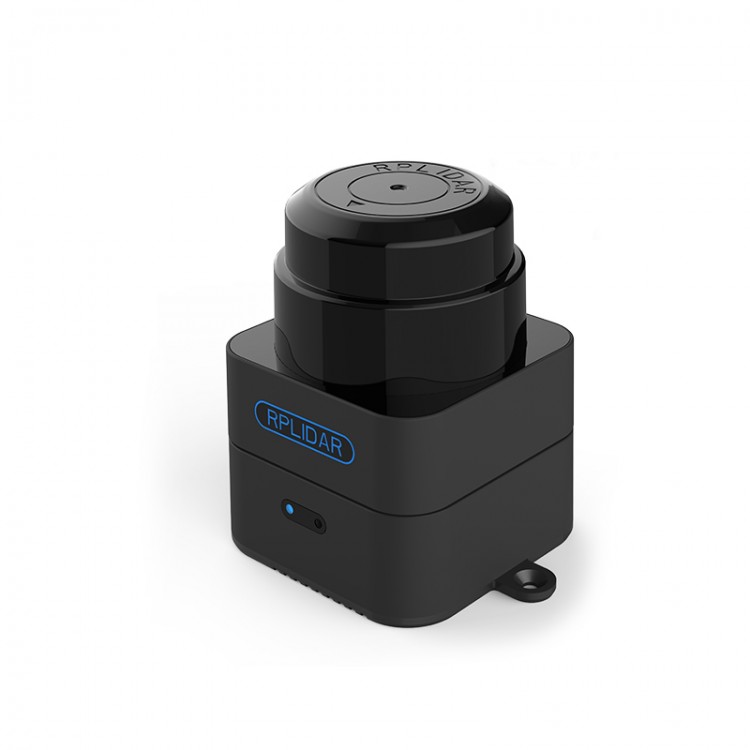

SLAMTEC Mapper M2M2 RPLIDAR 40M/131.2FT Laser Mapping Lidar SLAM Positioning Compatible With ROS

SLAMTEC Mapper M2M2 RPLIDAR 40M/131.2FT Laser Mapping Lidar SLAM Positioning Compatible With ROS

Features:
- A new laser range scanner category with built-in mapping and localization feature
- Slamtec Mapper, a new laser range scanner category integrating map building and real time localization and navigation, contains the SLAMTEC third generation high-performance SLAM engine and laser range scanner. Plug and play, without any external dependence. It is suitable to be applied in application fields like robot localization and navigation, environment surveying and mapping and etc.
- Large Scenarios and High-quality Mapping. Slamtec Mapper adopts SLAMTEC third generation high-performance SLAM graph optimization engine and mapping technology for SharpEdge to realize a high accurate thousand-square-meter map building and real time localization, and it can actively detect the closed loop and correct map. The mapper is an ideal choice for users to realize mapping and re-localization in various complicated scenarios and output map and localization data that meets users' expectations
- Plug and play, without any external dependence. Slamtec Mapper just needs a USB power cable to work well, without any additional support or accessories
- Tilting Compensation and Fast Moving. With built-in inertial navigation system with nine degrees of freedom, Slamtec Mapper can work properly in tilting and shaky hand-held mode and ensure an excellent map data quality. In addition, it supports to move fast with a maximum speed of 2m/s
- Indoor and Outdoor Availability. Whether in complicated indoor environment or outdoor environment with direct daylight, Slamtec Mapper shows a good performance in mapping and localization in those complicated scenarios
- Fully Compatible with ROS, Easy Data Analysis. Slamtec Mapper provides completed cross-platform SDK and tools both on phone and PC side for users to evaluate, develop and use. Through matched ROS driver,you can integrate the generated map and localization data into ROS environment seamlessly
- More Than A Mapper. Slamtec Mapper is not only a mapper for mapping and localization, you can also use it directly as a laser range scanner. Via SDK or ROS node, you can easily put the data of the laser range scanner into the user's current system
- Built-in WIFI, Ethernet port, Easy communication. With built-in access point and station mode WiFi as well as 100M Ethernet port, you can get the real time map and localization data generated by Slamtec Mapper through designed mobile application
- Mapper, Learn More. 100000m² large working scenarios. Compatible SLAMTEC ecosystem. Multiple work modes. Small size. Low power. Class 1

Specifications:
- Model: M2M2
- Recommended applications: Commercial robot, Outdoor robot, Environment surveying, Handheld mapping
- Measuring Range: 0.1m-40m/0.3-131.2ft
- Sampling Frequency: 9.2K
- Rotational Speed: 8Hz-15Hz
- Angular Resolution: 0.391°
- Motor: Brushless

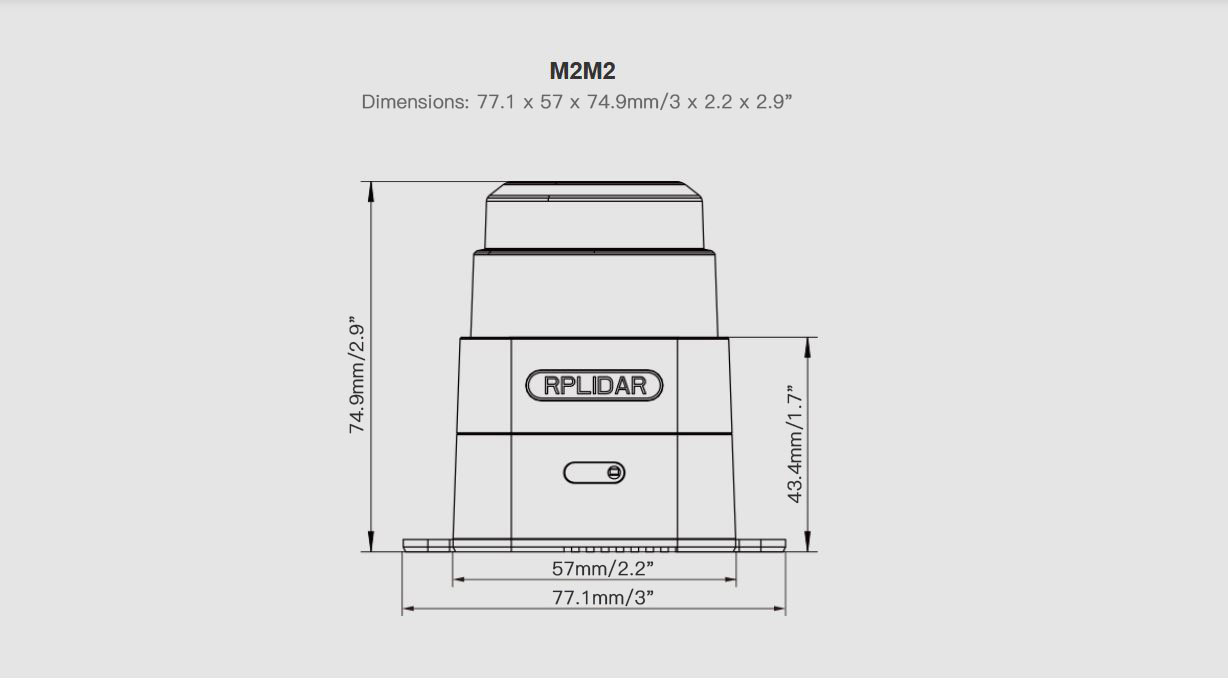

- Dimensions: 77.1 x 57 x 74.9mm/3 x 2.2 x 2.9"
- Weight: 165g/0.4 lb
- System Voltage: 5V
- System Current: 750mA-1300mA
- Power Consumption: 3.75W-6.5W
- Output: Ethernet (802.3/802.3u ) WiFi (802.11a/b/g/n/ac )
- Temperature Range: -5℃ to 45℃
- Angular Range: 360°
- Range Resolution: 3cm/1.2"
- Accuracy: ≤5cm/2"
- Maximum Moving Speed: 2m/s
- Frequency Of Data Refresh: 10Hz
- Maximum Area: 300m x 300m/984.3 x 984.3ft
- Mapping resolution: 0.05m/2"
- Accuracy: < 0.02m/0.8"
- Graph Optimizing Working Time: About 1 hr
- Maximum Inclination Angle: ±3°

Package Included:
- 1 x Set of RPLIDAR
