SLAMTEC RPLIDAR S1 40M/131.2FT Lidar Sensor TOF Laser Range Scanner 360 Degree Lidar Scanner for UAV
Features:
- TOF Ranging Method: RPLIDAR S1 adopts TOF (Time of Flight) ranging technology, which guarantees the ranging resolution not changing with distance. Even within a longer distance, the ranging resolution is still stable and accurate.
- 40M/131.2FT Range Radius: The ranging radius of RPLIDAR S1 is up to 40m/131.2ft, which meets more application requirements in larger scenarios.
- Resistance to Strong Daylight, Outdoor Available: Effectively avoiding the strong daylight interference, RPLIDAR S1 has a stable ranging and high-resolution mapping performance in outdoor environment.

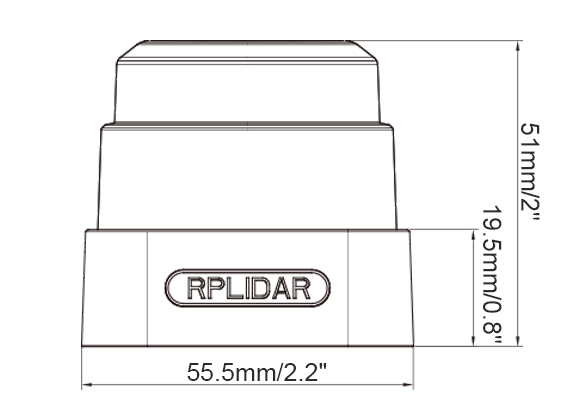

- Small Size, Easy Use: The first pocket TOF laser range scanner of SLAMTEC. Ultra-thin design, compact and portable for various application requirements.
- Independent Enclosed Cover: RPLIDAR S1 adopts an enclosed cover to protect its interior mechanism from external interference, which provides a stable working environment and meets the industrial application.
- Compatible with SLAMTEC Ecosystem: Compatible with existing hardware and software interfaces of all SLAMTEC products.
- 360° Omnidirectional Scan: The ranging core of RPLIDAR S1 runs clockwise to perform a 360 degree omnidirectional laser range scanning for its surrounding environment.
- Stable Service Life: SLAMTEC has integrated the wireless power, optical communication, non-contact energy and signal transmission technology, to completely solve the electrical connection failure and short lifespan problem caused by the physical contact wearing out, so as to prolong the service life of RPLIDAR S1.
- Laser Safety Standard: The RPLIDAR S1 adopts the low power infrared laser light as its light source, and drives it by modulated pulse. It reaches Class 1 Laser Safety Standard which can ensure its safety to human eyes.
Measurement Performance:
- Application Scenarios: Works well both in indoor and outdoor environment, with reliable resistance to daylight
- Distance Range: On White Objects: 40m/131.2ft (White light-diffused surface); On Black Object: 10m/32.8ft
- Blind Range: 0.1m/3.9"
- Sample Rate: 9200 times per second
- Sample Frequency: Typical value 10Hz (adjustable in the range of 8Hz-15Hz)
- Angular Resolution: Typical value 0.391° (adjustable in the range of 0.313°-0.587° according to the sample frequency)
- Communication Interface: TTL UART (3.3V)
- Band Rate: 256000bps
- Measurement resolution: 1cm/0.4"
Package Included:
- 1 x RPLIDAR S1 Module (Built-in PWM Motor Driver)
- 1 x USB Adapter
- 1 x Micro-USB Cable
- 1 x Power Cord
