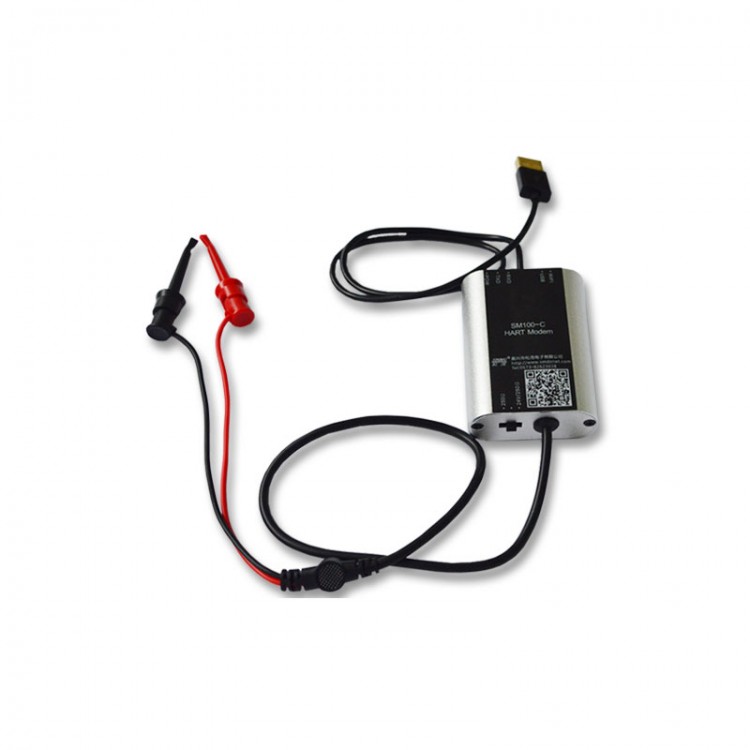

SM100-C (III) Standard Version Hart Modem USB to Hart Modem HART Cat Supports Mobile APP Debugging

SM100-C (III) Standard Version Hart Modem USB to Hart Modem HART Cat Supports Mobile APP Debugging

Description:
- It can communicate with HART instruments of any manufacturer, such as Rosemount, E+H, Siemens, Cologne, Yokogawa, and Sichuan. Instrument and so on. At the same time, its appearance adopts an integrated design, which is easy to install and carry; it adopts standard USB interface and serial bus power supply, allowing users to use it conveniently and quickly.
- Because SM100-C smart converter is specially designed for industrial product integration, it adopts special design in terms of temperature range, vibration, electromagnetic compatibility and interface diversity to ensure stable operation in harsh environments and provide your equipment with Quality assurance.

- Multiple wiring methods:


- Application diagram of communication between SM100-C(III) and Rosemount 5400 radar level gauge:


- Communication Application Diagram of SM100-C(III) and E+H Flowmeter:


- Diagram of communication between SM100-C(III) and EJA differential pressure transmitter:


- Application diagram of communication between SM100-C(III) and BST6800T input level gauge:


- SM100-C(III) and Siemens Instrument Communication Application Diagram:


- Communication application diagram of SM100-C(III) and Honeywell temperature sensor:


- Communication application diagram of SM100-C(III) and thickness gauge:


- SM100-C(III) 24V output and pressure transmitter field application drawing:


- SM100-C(III) WiFi version and pressure transmitter field application drawing:


Product performance:
- Supported operating systems Windows XP, Windows7, Windows10.
- Fully compatible with USB V1.1 and USB CDC V1.1 specifications.
- Fully compatible with USB V2.0 and USB CDC V2.0 specifications.
- USB bus power supply (non-isolated cable), DC 5V DC 30mA.
- Standard HART protocol transmission.
- Fully transparent data conversion.
- Compatible with any HART protocol.

Features:
- Built-in isolated DC24V output, power supply and communication for two-wire instrument, reduce wiring.
- HART signal is transmitted by means of isolation transformer.
- Built-in high-precision loop 250Ω resistance, no additional resistance is needed for communication test.
- The panel has an indicator light, and the working status of the converter is clear at a glance.

Parameters:
- Physical size: length 70 mm × width 50 mm × height 20mm.
- Working environment temperature: -20℃~+80℃.
- Relative humidity: 10% to 80%.

Indicator light description:
- POW power indicator: keeps on when the communication is normal.
- TXD communication indicator: flashes when data is being sent.
- RXD communication indicator: flashes when data is being received.

Product configuration software:
- Online test:


- Calibration of instrument input and output:


- Setting the basic parameters of the instrument:


- Temperature transmitter parameter configuration:


- Differential pressure and multi-variable transmitter:


Package Included:
- 1 x SM100-C(III) Standard Version
- 2 x 250Ω electric resistance
- 1 x User Manual

Note:
- The default shipment is Type-C interface for Android APP version.
