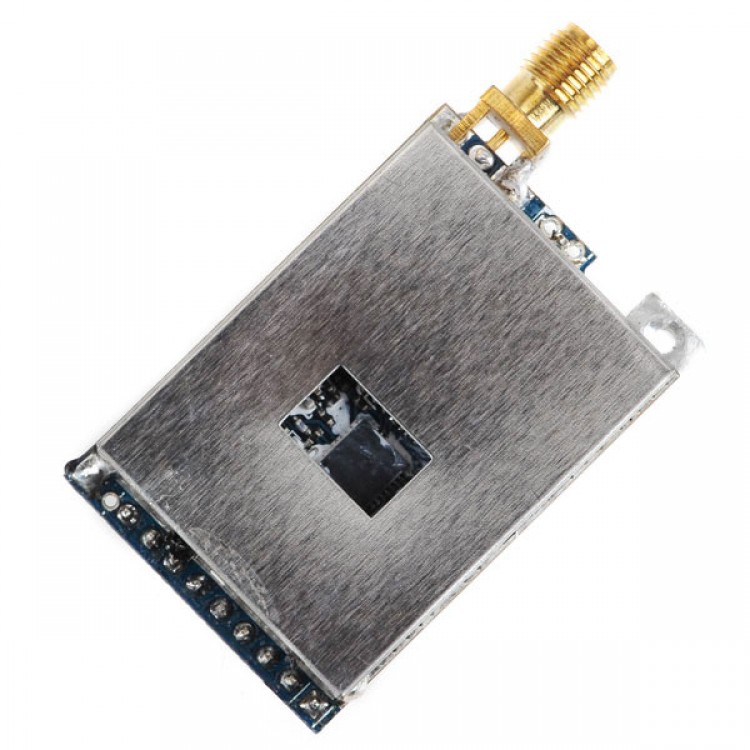

SM108T High Power 2.4G Dual Channel Wireless Transmitter Module Max 51W

SM108T High Power 2.4G Dual Channel Wireless Transmitter Module Max 51W
Features:
- Micro-miniature size and low profile
- 4 selectable 2.4GHz band channel
- Frequency control with PLL design
- Audio sub-carrier with PLL design
Frequency:
　　CH1：2414MHz CH1'：2370MHz
　　CH2：2432MHz CH2'：2390MHz
　　CH3：2450MHz CH3'：2490MHz
　　CH4：2468MHz CH4'：2510MHz
Specification:
- Frequency band:2370MHz~2510MHz
- Channel customer:8
- Channel Frequency A:2414MHz/2432MHz/2450MHz/2468MHz
　　                          B:2370MHz/2390MHz/2490MHz/2510MHz
- Audio Sub-carrier:6.5MHz＆6.0MHz
- Modulation type:FM
- Transmit power:30dBm
- Frequency control:PLL
- Audio sub-carrier control:PLL
- All harmonic:Max-5dBm
- Frequency Stability:±100kHz(Typ.)
- Frequency precision:±200kHz(Typ.)
- A/V Ratio:-28±2dB
- S/N(Fo±3MHz)>70dBc
- Channel Carrier error:1dB
- Antenna Port:50 Ohms
- Input format:NTSC or PAL
- Video input level:1Vp-p type
- Audio input level:1Vp-p type
- Base-band interface:9X2.54 or 10X2.0 Pad
- Power consumption:570mA
- Operating Temperature:-10℃~＋60℃
- Profile dimension:27.8X43.8mm
