SM2 PRO J2534 VCI Hardware Full Set ECU Programmer ECU Programming Tool to Read and Write

SM2 PRO J2534 VCI Hardware Full Set ECU Programmer ECU Programming Tool to Read and Write

Introduction:
* SM2 PRO Hardware Version: V2.21.17 (Built 21.03.22)
* Add extra Features, Supporting J2534 For Toyota (Depends on buyer having software)

SM2 PRO Supports 67 Modules to Open Protocols:
Activate Licenses:
* 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 29, 30, 31, 32, 33, 34, 35, 36, 38, 40, 42, 43, 45, 46, 47, 48, 50, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74
* Above total 67 modules, support thousands of car brands, read and write ECU and GearBox, power upgrade tool, clone ECU to read and write. Best chip tuning tools!

What is Difference between SM2 PRO J2534 VCI and BENCH, FLASH, OBD?
1. Different SN number
* BENCH, FLASH, OBD. All SN number is A55259. Actually they are the same hardware, just a different case, you also can check the PCB board of them.
* SM2 PRO J2534 VCI SN: A78370. it is different as others in the market.

2. Different hardware version
* BENCH, FLASH, OBD hardware version is 2.21.2. from March, 2019. It is old!
* SM2 PRO J2534 VCI hardware version is 2.21.18 from April 14, 2022. it is very new version . It's already updated 16 versions vs others hardware. and it was added many new functions and more stable.

What are SM2 PRO Advantages?
1. Our hardware support all J2534 protocol software
2. Do not need to register and active device. You can use it directly. And we pay more attention to protect personal privacy.
3. When you update your device by mistake, it will not be locked. You just come back to correct driver version to work.
4. Support newest cars and do online programming (with online account). For example GDS software work with 2021 year ENVISION for GM Buick, 2021 year for CADILLAC XT5. We have tested online programming and working perfect!

SM2 PRO J2534 VCI Functions:
1. Read and write ECU data
2. ECU clone
3. ECU parameter adjustment
4. ECU maintenance engineering
5. Chip turing
6. Read ECU maps
7. Checksum correction
8. Stage1-3, gearbox tuning, LC, sportdisplay, immo off, adblue off, dpf off, dtc off, vmax, swirl off
9. Read flash and ep files
10. Power train adjustment
11. Support online update
12. VR files supply
13. Pinout come with
14. Help desk and tuner account
15. OBD2 reading
16. Cover-free wielding-free no disassembly data reading, greatly reduce the risk of destroying the ECU, bench mode.
17. Cover-opening data reading, boot mode

200 Newly-added MED/EDC17 Read/Write Protocols for Bosch Without Opening the Cover.
* For VAG Simos 12.1, 12.2
* For VAG Simos PCR2.1
* FCA GPEC2, GPEC2A, GPEC4, GPEC4LM
* For Hyundai/KIA SIM2K-240, SIM2K-241,SIM2K-250, SIM2K-251, SIM2K-260, SIM2K-305, MT86
* For Ford/LR SID208 Flash reading
* For Scania EMS S8 BAM. Just 3 point PCB connection into VIA holes. Can be connected without removing gel.
* For PSA SID208
* For MB SID307, SID310
* For Renault SID307, SID309, SID310
* For Porsche SDI21.x
* For Mitsubishi E6T83XXX, E6T32xxx
* For Isuzu Transtron SH72544R
* For Isuzu Transtron L4.3
* For Hino EDC7UC31
* For Hyundai, Greatwall DCM6.2AP

What program does it support?
1. For Chrysler flash application
2. For GM gds2 / SPS- Ford FDRs, Forscan
3. For Hino DX2
4. For Honda HDS
5. For Land Rover Jaguar SDD
6. For Nissan consult 3+- ODIS
7. For Renault clip
8. For Toyota Lexus Techstream
9. For Volvo Vida- Mer-cedes Benz xentry / Das

Pass thru
10. For Cummins insite
11. For Cummins calterm ll
12. For Caterpillar et- JCB service master4
13. For Volvo premium tech tool
14. For WABCO toolbox
15. For Eaton air conditioning system diagnostic

Software
16. For Detroit dddl
17. For Allison transmission diagnostic software
18. For Noregon jpro truck diagnostic software
19. Other original software
* It cannot support CAN FD

Note:
* Above supports need you to have your own software and test in real operation. We do not have after-sale service for those programmer, please note that.

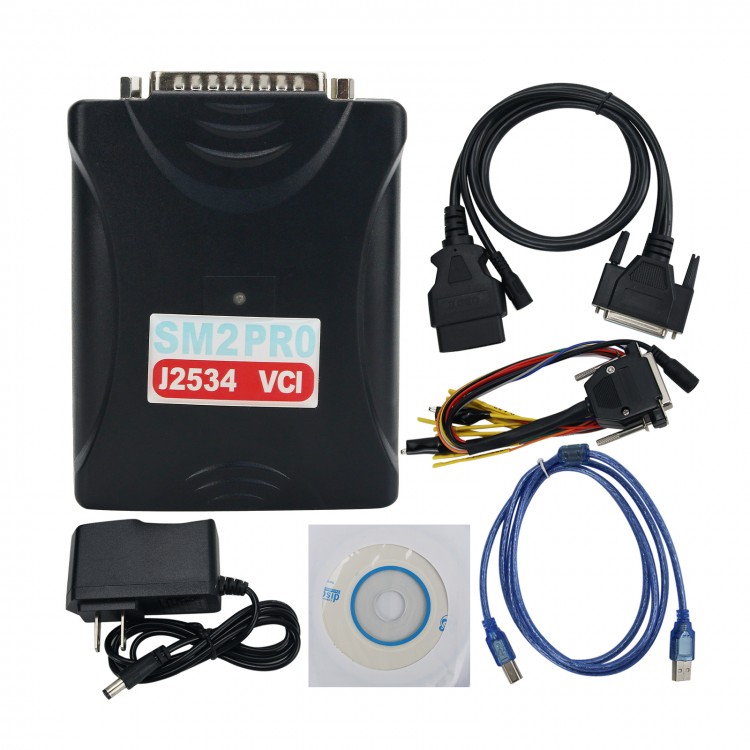

Package Included:
* 1 x SM2 PRO J2534 VCI
* 1 x Power Adapter
* 3 x Cables
