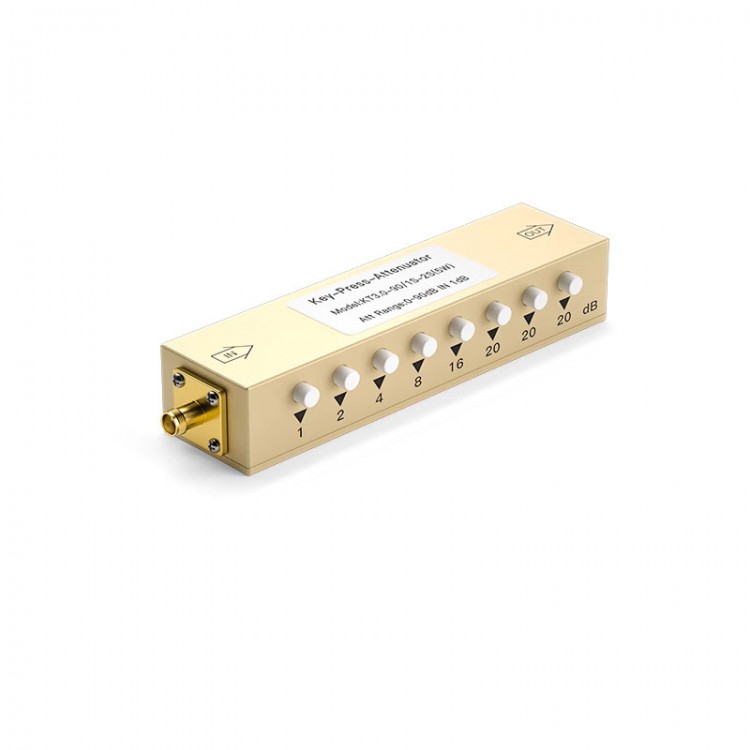

SMA-KK 10W 90DB 0-3GHz Variable Attenuator RF Attenuator RF Step Attenuator with SMA-K-K Connector
Description:
The step coaxial attenuator regulates the signal level of a circuit in 1dB steps without interrupting the circuit. It can also be used as an in-machine attenuator for instrumentation to adjust the power level in the test system. It has small size, high precision and stable and reliable performance.
Features:
- SMA type 0-90DB adjustable RF attenuator
- Environmentally friendly spray paint: With uniform color and luster, it is not easy to scratch and oxidize
- Customized switches: It is smooth to use the buttons because the buttons are responsive, without deviation position
- Silk screen printing technology: black silkscreen font is clear and intuitive
- Precise hole positioning: easy to dock and use
Specifications:
- Power: 10W
- Operating frequency: DC-3.0GHz
- Attenuation adjustment range: 0-90dB steps
- Attenuation steps: 1, 2, 4, 8, 16, 20, 20, 20 (dB)
- VSWR: ≤1.3
- Insertion loss: ≤3.5dB
- Connector form: SMA-K-K
- Single-button attenuation accuracy: ±0.2dB Max. (0~8dB)
- Multi-button attenuation accuracy: ±3.5dB Max. (10~20dB)
- Temperature range: -10°C to +50°C (operating); -40°C to +70°C (non-operating)
- Product size (including connectors): 149 x 35.5 x 20mm/5.9 x 1.4 x 0.8" (LxWxH)
- Weight: 156.5g/0.3lb
Package Included:
- 1 x Attenuator
Packaging Details:
- G.W.: 0.45kg
