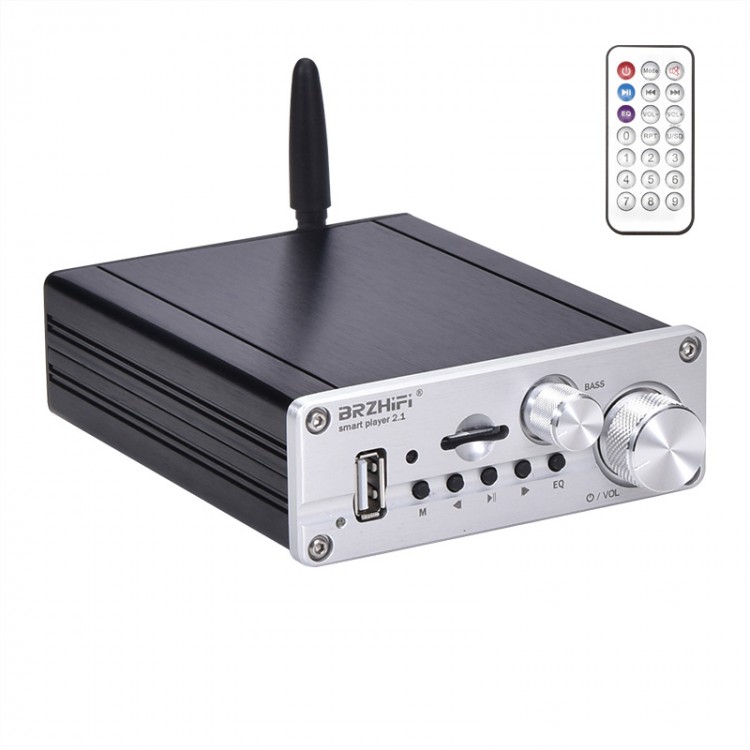

Smart Play 2.1 200W 2.1 Channel Amplifier Bluetooth 5.0 HiFi Amp Assembled Without Power Supply

Smart Play 2.1 200W 2.1 Channel Amplifier Bluetooth 5.0 HiFi Amp Assembled Without Power Supply

Features:
- Compatible with all kinds of Bluetooth devices. Can connect mobile phones and tablet PC for Android, Apple via Bluetooth. It supports playing music via Bluetooth, U disk, TF card.
- Multiple Functions:
* Computer external USB sound card
* NICAM technology
* Support MP3, WAV
* Remote control function
* Support U disk
* Bluetooth connection
* Support TF card
* Mobile phone APP control
- Can be used to watch movies, listen to music, play media, play games, etc.
- Support multiple operation modes, easy to use. 1. Mobile phone Bluetooth (for iPhone & Android): Support 99% of mobile phones on the market to play music via Bluetooth. 2. Support mobile APP for iPhone & Android, can control the playing mode of power amp, view music catalog in a U disk and TF card, select track, FM custom EQ and select a variety of preset EQ programs (pop, rock, etc.). 3. With original remote controller, supporting remote control. 4. It can also be controlled in real time through panel buttons.
- Support AUX3.5 analog input, FM, U disk, TF card, Bluetooth 5.0 mobile phone APP for easy control. When used with an USB dedicated cable, you can directly use the power amplifier as a computer external USB sound card. Computer USB is automatically recognized, no driver is required. (Attention: USB sound card dedicated cable is not included. If it is needed, please contact us to pay extra money.)
- Can drive a pair of 3-8" 2.0 channel stereos.
- Can drive 4-12" passive subwoofer.
- Independent control of subwoofer volume.
- Bluetooth lossless connection enables further and faster transmission.
- Special inductors for digital power amplifier circuits make sound cleaner, more delicate, clearer, and more dynamic. Loop closed package has better anti-interference effect and is an excellent match for high-end digital circuits.
- Two TPA3116 digital power amplifier IC, strong power, low heat, low distortion at high frequencies, good dynamics, and strong sense of presence.

Specifications:
- Brand: BRZHIFI
- Model: smart player 2. 1
- Machine Power: 200W MAX. Stereo 50W*2+subwoofer 100W
- Recommended Power Supply: DC12-24V (Port with outer diameter 5.5mm, inner diameter 2.5mm)
- Impedance: 4-8Ω
- Product Size: 103 x 38 x 122 MM
- Product weight: about 0.42KG
- U disk/TF Supports Audio Formats: MP3 (8~320kbps), WAV (16bit, 44khz~48khz)
- U disk/TF Card: Support up to 32GB
- Bluetooth 5.0: Support all current mainstream smart phone audio connection to play music

Package Included:
- 1 x Set of Power Amplifier

Note:
- It is only for passive fixed impedance speakers and sound boxes.
- It is assembled and ready to use.
- Optional colors: Black, Silver. Please choose the color you want when purchasing. Thank you!

1: Power indicator
2: U disk input port
3: Infrared receiving port
4: Switch playing modes
5: Previous song
6: TF card input port
7: Play/pause
8: Next song
9: Bass adjustment
10: Equalizer
11: Switch + master volume


1: AUX analog audio input port
2: Bluetooth antenna
3: Right channel output port
4: Left channel output port
5: Subwoofer output port
6: DC12-24V 5.5*2.5 input port

Note: Standard antenna is for Bluetooth users. If you need high-gain FM antenna, please choose our versions with FM antenna. Thank you!


Attention:
Users use power supply lower than DC 20V, such as 12V battery / battery power supply (battery is not included) for cars and motorcycles, it is recommended to use our booster power to ensure high power amplification and power output to obtain a good HiFi experience. If step up power supply is needed, please contact us to pay extra money. If booster power is needed, please contact us to pay extra money.
