Description:

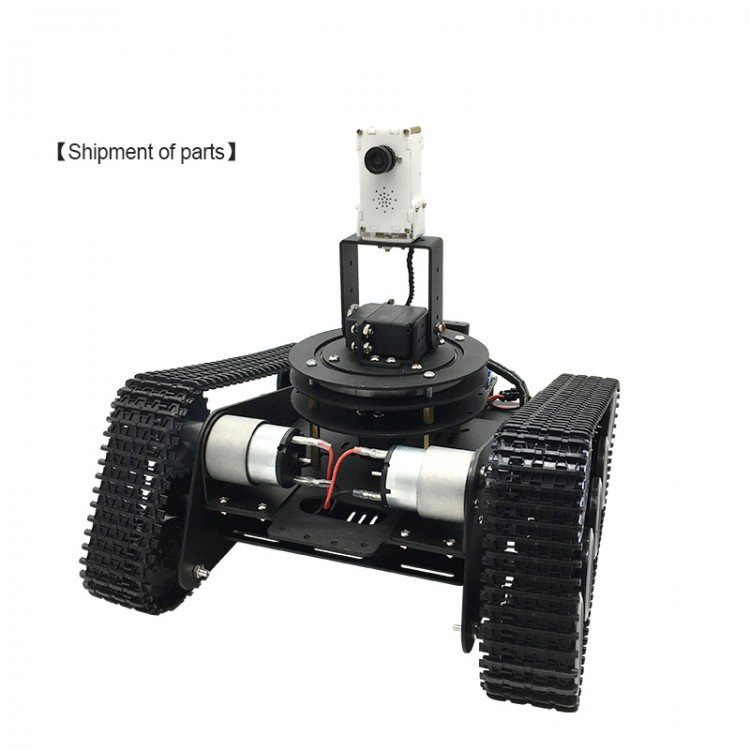

The ReBot reconnaissance robot consists of a crawler chassis, a 2-DOF PTZ, a wifi camera module, a STM32 servo control board, and a power supply. Based on wifi wireless communication, it is an educational learning kit with functions such as remote reconnaissance, video transmission, remote control of the car and PTZ, photo, video, and voice intercom. Based on STM32 open source control system, provide control board and source code.

Product Specification:
Length: 290mm
Width: 260mm
Height: 250mm
Weight: 2.2kg
Bearing capacity: 3kg
Limit speed: 0.5m/s
Climbing ability: 25°

WiFi Camera Module Specification:
Size: 30mm*24mm*55mm (length*width*height)
Shell: 2mm acrylic
Camera: 720P HD
Weight: 33g
Wiring length: 30cm
Interface type: TTL serial + bus interface
Connection method: local connection + remote connection
Function: video transmission, serial data transmission, photo, video, voice intercom
Voice intercom: built-in microphone and speaker, support two-way voice intercom

Features:
-Local control + remote control

-Mobile APP interface
Support Android/IOS system

-2 degrees of freedom rotation
Can be rotated 180° front and rear, 270° left and right

-Digital Servo
TBS2701 is a low-power digital servo. Metal gear, 15kg.cm high torque, high precision and low noise.

STM32 Open Source Control System
Name: Open Source STM32 Servo Control Board
Weight: 41g
Dimensions: 76mm*66mm
Hole size: 64mm*58mm
Power supply voltage: 6-8.4V
Voltage stabilization: built-in high-power voltage stabilization (adjustable)
PWM servo interface: 6 channels (the steering gear port has overcurrent protection)
Bus servo interface: 2 channels (each channel can connect 4 in series)
External PS2 controller: support
External Bluetooth module: support
External MP3 module: support
External WiFi camera module: support
Internal power interface: 5V and 3.3V
Chip: STM32F103C8T6
Open source: provide source code and schematics
PC graphical programming: support
C language programming: support
USB one-click download: support
Online debugging: support
Offline operation: support
Storage actions: 10000+
WeChat Mini Program: Provide
TTL serial communication: support
Low pressure alarm: support
Sensor interface: 6 channels
IIC device interface: 1 way

Package List:
-2 x TBS2701 Servo
-1 x Long U Bracket
-1 x Servo Bracket
-1 x Big Bearing
-2 x Metal Servo Hub Horn
-2 x Ring
-1 x Small Disc
-1 x Big Disc
-1 x Cup Bearing
-1 x 10 x Driven Wheel
-1 x Track Crawler Upper Plate
-1 x Track Crawler Lower Plate
-2 x Track Crawler Side Plate
-2 x Geared Motor
-2 x Driving Wheel
-2 x Track
-1 x Motor Drive Board
-1 x USB Data Cable
-1 x 7.4V Lithium Battery
-1 x Charger
-1 x WiFi Camera Module
-1 x Camera Fixing Bracket
-1 x 30cm Connection Cable
-1 x Motor Connection Cable
-1 x Assembly Tool Kit

Note: The product is not assembled.
