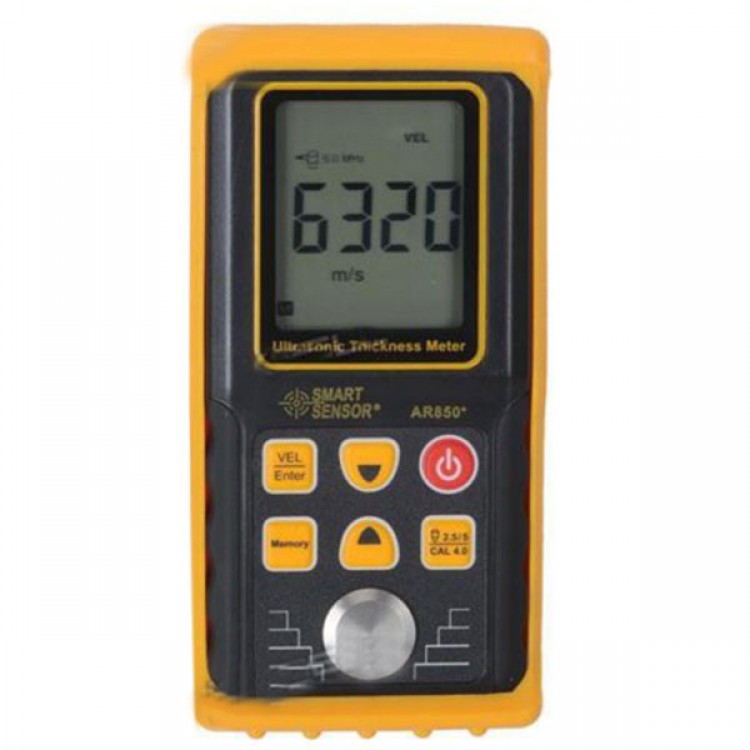

Smart Sensor AR850 Ultrasonic Wall Thickness Gauge Meter Tester

Smart Sensor AR850 Ultrasonic Wall Thickness Gauge Meter Tester

Introduction:
The AR850 Ultrasonic Thickness Gage is used for measuring the thickness of materials where access to only one side of the test piece is available.  It is suitable for many different materials including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene PVC, gray cast iron, nodular cast iron and other materials.Dual probe extended your measure range to every possible need in your area

Application:
Used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc.  Widely used in industries of petroleum, shipbuilding, and machine manufacturing.

High light:
    Large LCD for easy reading
    Suitable for all metallic and non-metallic materials
    Easy to operate
    Wide measuring range from 1.2mm to 225.0mm(Steel)
    Sound Velocity Range up to 9999m/s
    Display resolution 0.1mm
    Hand held and robust

II.Function:
    Applicable to measure the thickness of any hard materials, e. g. Steel, Cast iron, Aluminum, Red copper, Brass, Zinc, Quartz glass, Polyethylene, PVC, Gray cast iron, Nodular cast iron.
     Automatic Zero Adjustment
    Data Store Function for up to 10 test result, will not lost data even without data, suitable for field measurement.
    Auto Power Shut Off
    Linear compensation circuit for high accuracy ( 1%H+0.1).
    Speed of sound testing (m/s) with 12 storage memory
    Press the up or down arrow to switch between the mm or m/s reading
    2.5MHz for rough surface measurment

Include:
AR850 Ultrasonic thickness gauge x 1
2.5MHz/10 probe x 1
5MHz/10 probe x 1
Carrying case x 1
Testing Fluid x 1
Steel test template ( 4mm) x 1
Manual x 1

Parameters:
