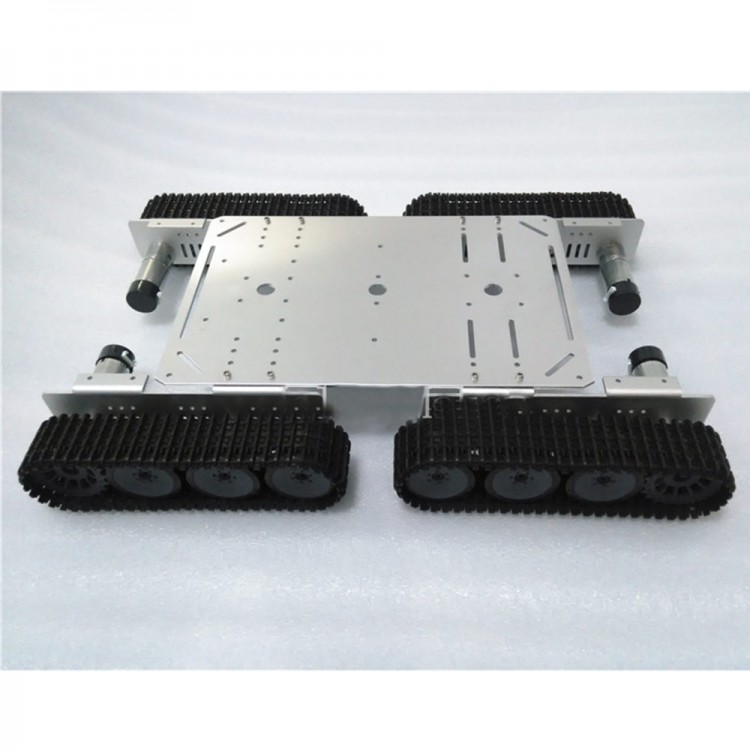

Smart Tank Car chassis Caterpillar Track Crawler Aluminum Alloy for Arduino Robot DIY T500P
Specification:
- Name: T500P Silver metal tank chassis
- Car body:metal (Aluminum alloy)
- Wheel: plastic
- Track: plastic
- Product size about: 500*320 *70mm (length * width * height)
- Working voltage: 7~12V
- The tank whole weight: 2.4kG
- Working carrying capaticy:8KG
- Color: silver
Motor Parameters:
- Name:25mm gear motor
- Output speed: 150±10%rpm
- No_load current: 200mA (Max)
- Stall current: 4500mA(max)
- Stall torque: 9.5kgNaN
- Rated speed: 100±10%rpm
- Rated torque: 3KG.CM
- Rated current: 1200mA (Max)
- Noise :56dB
- Working voltage: 9V
- Outside Shaft Length: 14.5mm
- Shaft End Play: 0.05-0.50mm
- Screw Size: M3.0
- Dia. Of Shaft: phi 4mm, D3.5
- Encoder: 2pulses/circle
Package List:
- 1 x Tank Chassis
- 4 x Side plate
- 4 x Driving wheels:
- 12 x Bearing wheels
- 4 x Track
- 4 x DC motor
- Tools, screws and nuts
