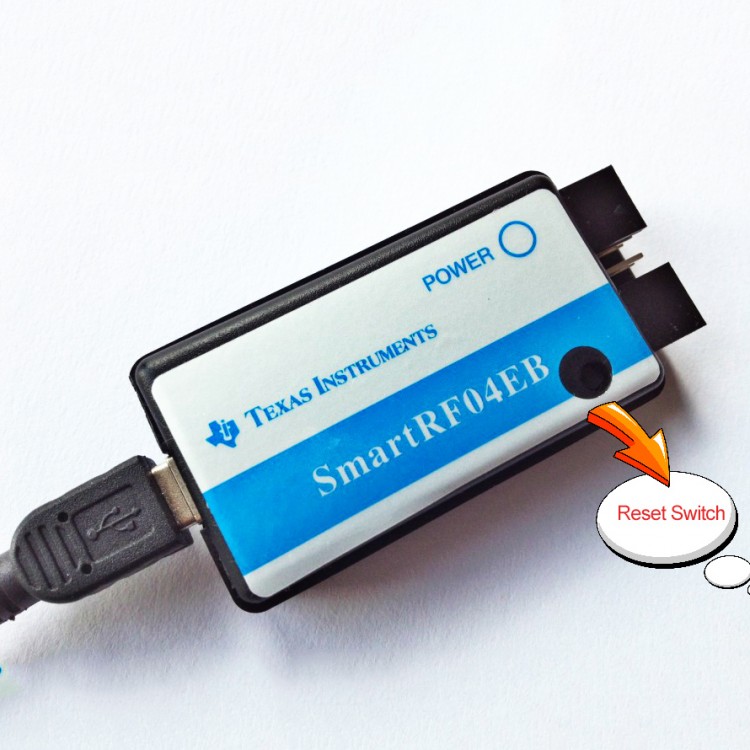

SmartRF04EB Zigbee Emulator CC Debugger Zigbee Downloader Module for CC1110 CC2530
Description:
SmartRF04EB, CC series wireless chip debugging tools, can be used in CC11xx, CC24xx, CC25xx and other series. It supports a variety of common debugging methods such as downloading, emulation, debugging, break-point, single step, full speed, erasing, reading, encryption and so on. It supports protocol analysis.

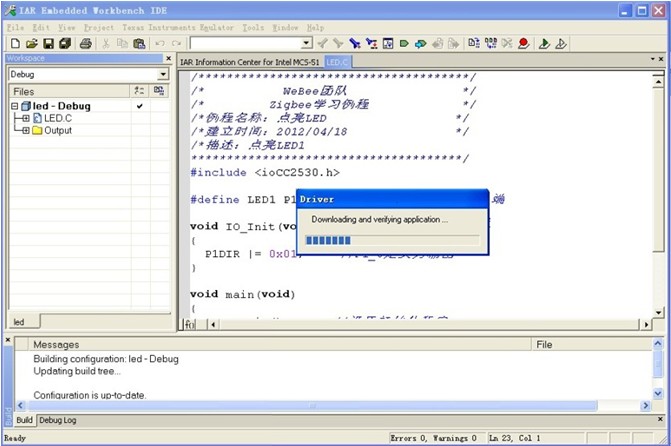

It can be seamlessly connected to IAR for MCS-51 compiler, such as IAR730B, IAR751, IAR760, IAR810.

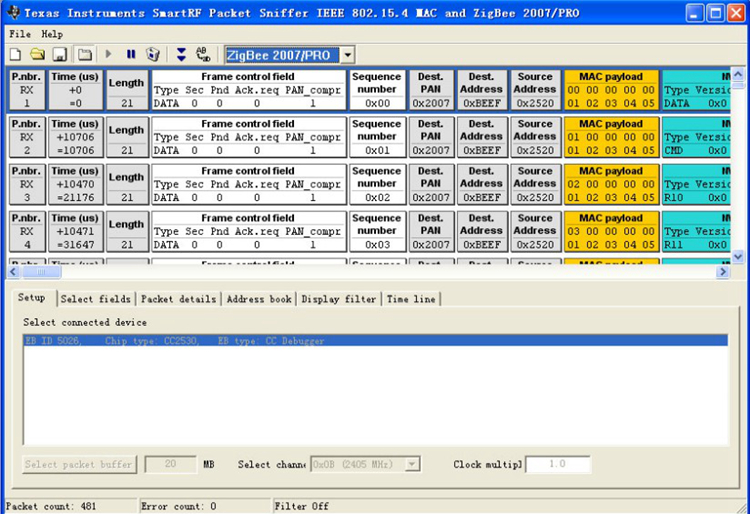

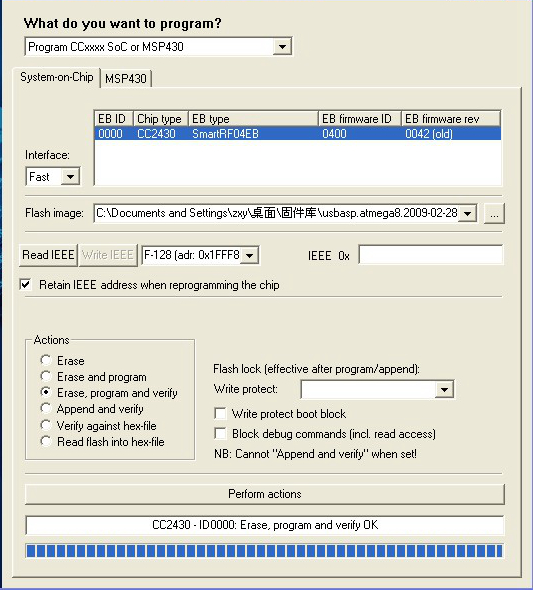

Suitable for the following tools: For SmartRF Studio, SmartRF Flash Programmer, IEEE Address Programmer, and Packet Sniffer.
Support operating system: For WINXP/7/10 32- & 64-bit.
Features:
- Automatic recognition speed
- Downloading speed up to 150KB/S
- Provides 3.3V to target board
Package Included:
- 1 x SmartRF04EB Zigbee Emulator

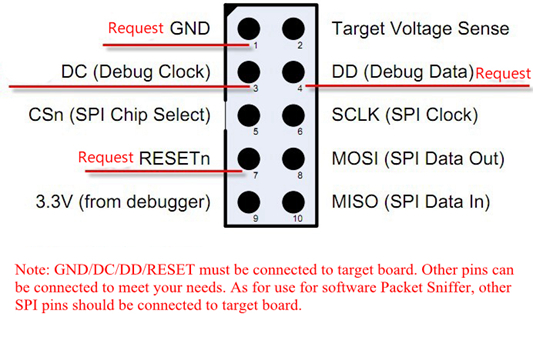

Interface Definition:
