SMC5-5-N-N 5-Axis CNC Offline Controller High Performance 32-Bit CPU RTCP CNC Motion Controller with 7-inch LCD
Description:
- This motion controller adopts a high-performance 32-bit CPU and high-performance FPGA, equipped with a seven inch LCD display, a user-friendly window human-machine interface, and a memory that uses an external USB port and a built-in 8G TF card. The storage space is large, and it can be connected to an external USB drive. The working voltage is 12-24 volts, with an ultra wide input and a touch operated keyboard. This system has the characteristics of high reliability, high accuracy, low noise, and convenient operation.
- This controller can achieve five axis linkage and has a multi micro line segment forward-looking control algorithm, which can achieve five axis linear interpolation and continuous interpolation of five axis multi micro line segments. It also has intermittent carving control and coordinate storage function when powered off. Support handwheel control interface.
- Support RTCP function.
- Simple and clear parameters bring convenience and speed to your operation. The setting function of input/output can facilitate your use and wiring.
Main Function:
- Parameter setting: various control parameters related to processing and operation can be set to achieve the best processing effect.
- Manual operation: it can achieve manual, jog, program reset, mechanical reset, coordinate reset, and other operations.
- Program management: it can create, delete, modify, read in, save, copy and paste programs, automatically process, continue, pause, and other functions.
- External IO Input: multiple external IO input controls can be defined for ease of use.
- Free selection input function: enables limited input ports to meet various user needs.
- Handwheel (not included): holding an external handwheel to control input or simulate a handwheel with advanced function keys on the host panel. The handwheel supports speed mode or position mode.

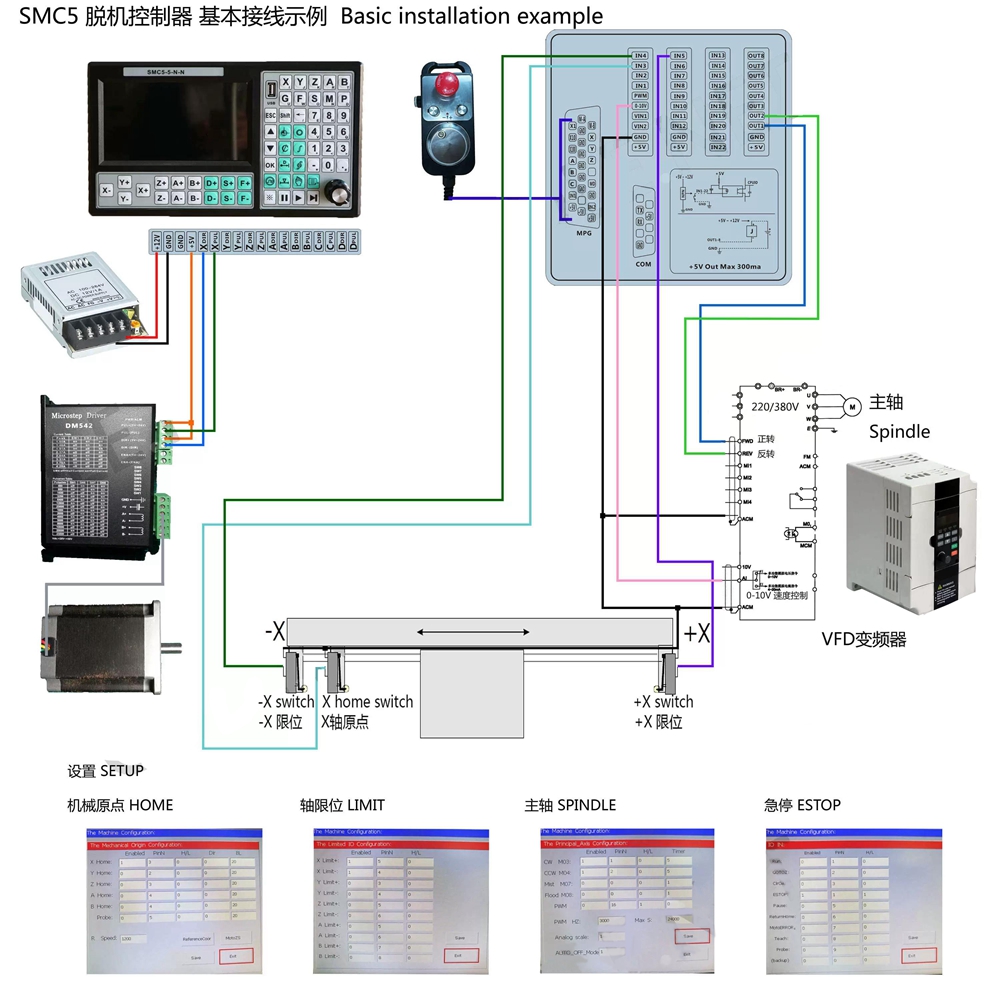

The CNC system mainly consists of the following parts:
- High performance, high-speed 32-bit ARM CPU, high-performance FPGA
- LCD display (resolution: 800 x 480)
- Input/Output (16 optoelectronic isolated 10MA inputs, 8 optoelectronic isolated pull-down tank current 500MA outputs)
Specification:
- Minimum display data unit: 0.001mm
- Conventional accuracy: ±2PP measurement pole
- Continuous straight line corner accuracy: it is one fourth of the height of the corner bow under normal circumstances (can be defined as any value to meet the demand for high precision)
- Maximum data size: ±99999.999mm
- Maximum pulse output frequency: 500KHz (all five axes can simultaneously reach 500KHz)
- Axis number: 5 axis (X, Y, Z, A, B)
- Linkage: 5-axis linkage with 5-axis multi micro and multi line segment forward interpolation control
- Handwheel control: speed mode or position mode, intelligent cutting deceleration point.
- User manual download: http://shop.cdle.net/smc.rar or http://shop.cdle.net/smc.zip
- Testing videos: https://v.qq.com/x/page/i076222x57s.html
Package Included:

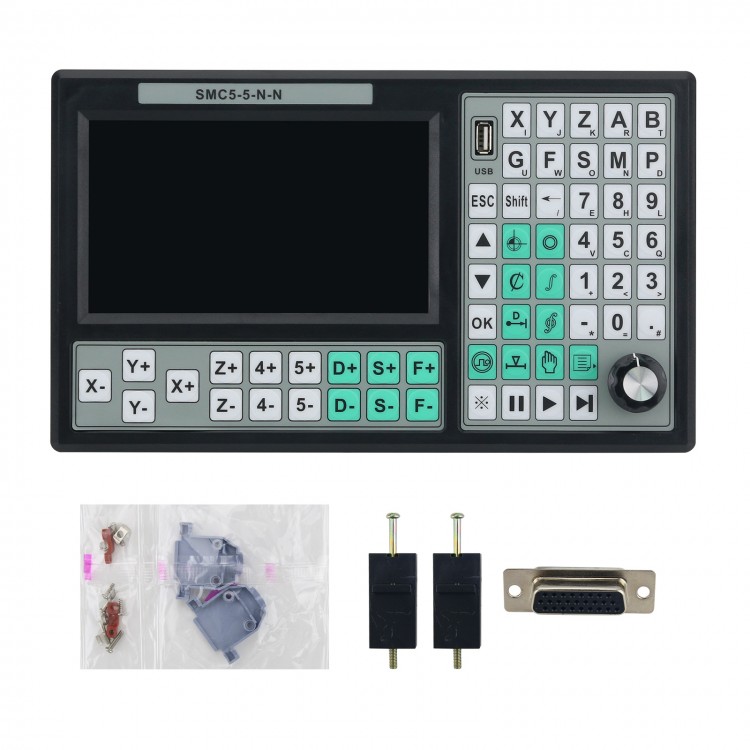

- 1 x CNC Controller
- 1 x Pair of Installation Buckle
