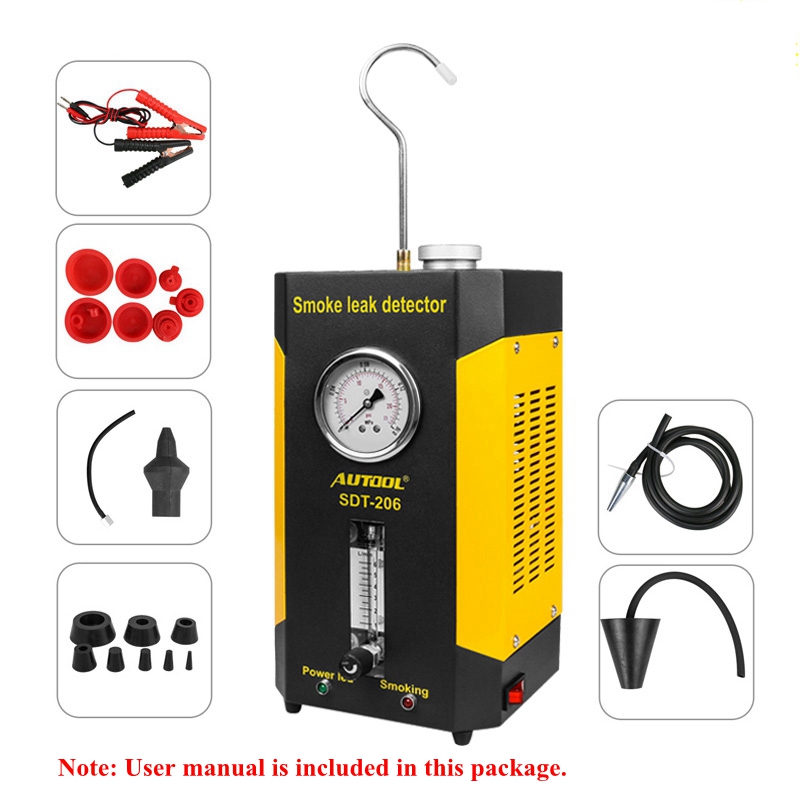

Smoke Leak Detector Automotive Smoke Machine Leak Detector Locator SDT-206 High Grade Version

Smoke Leak Detector Automotive Smoke Machine Leak Detector Locator SDT-206 High Grade Version

Description:
SDT-206 is designed for detecting the leakage of pipe systems on cars, motorcycles, such as fuel pipe, air intake system and cooling tank.

Features:
- SDT-206 is for all pipe systems and EVAP.
- Hook: To hang the detector when detecting
- Power Indicator: To show detector status
- Working Indicator: It is lit when the detector works
- Power Switch: Power it on, and the detector works
- Pressure gauge: To show the pressure when detecting
- Flow gauge: To adjust the smoke flow, and judge the leakage severity by flow amount change
- Smoke output tube: The smoke outlet which connecting with detection port
- Power clip: To connect with vehicle level. The voltage is DC12V.

Specifications:
- Machine Size: 270 x 150 x 150mm
- Output Pressure: 10 to 18 psi
- Output Flow: 10 to 20 L/min
- Gas Source: Built-in Air Pump
- Power Supply: 12V Car Level (Not included)

How to Operate:
1.Open the engine cover, and hang the detector in the cover.
2.Disconnect the pipe that needs to be connected with detector. If the pipe needs to be disconnected in the middle. Please secure the other side with a rubber stopple.
3.Secure this side with proper taper stopple/pipe, and connect it with smoke output tube.
4.Connect detector with DC12V level: red with positive, black with negative. Do not connect in a contrary way.
5.Turn on the power switch, and detector starts to work.
6.Adjust the flow gauge. Control the input smoke value and pressure to make sure the pipe system can afford the pressure.
7.In about 3 minutes, the pipe will be filled with smoke.
8.Observe the floating ball in flow gauge. If the floating ball stays still in the bottom, the pipe is sealed with. If the floating ball is arising or bouncing, the pipe is leaking.
9.Position the leak points by floating ball. If the bounce arises highly, the leakage is serious.
10.Check the leak points. Please use head lamp if necessary.
11.After leak detection, please connect well the wires and pipe.

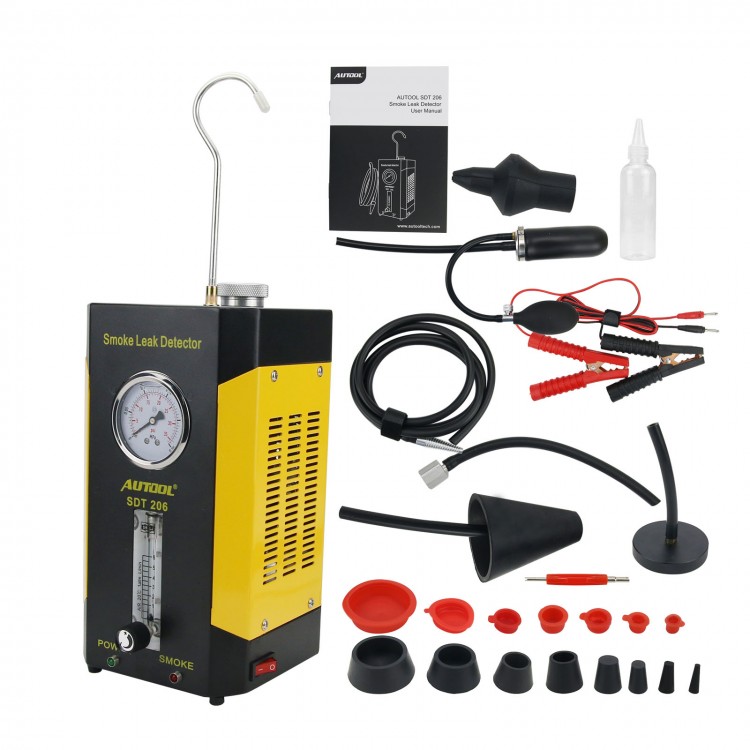

Package Included:


Note:
1.When you use this detector the first time, please fill 20-30ml oil, not beyond this range.
2.New oil can be filled with only when the smoke is light,and it can’t be filled over 15ml every time.
3.Before filling new oil, please pour out the remaining oil in the detector.
4.Please replace the detector oil regularly.
